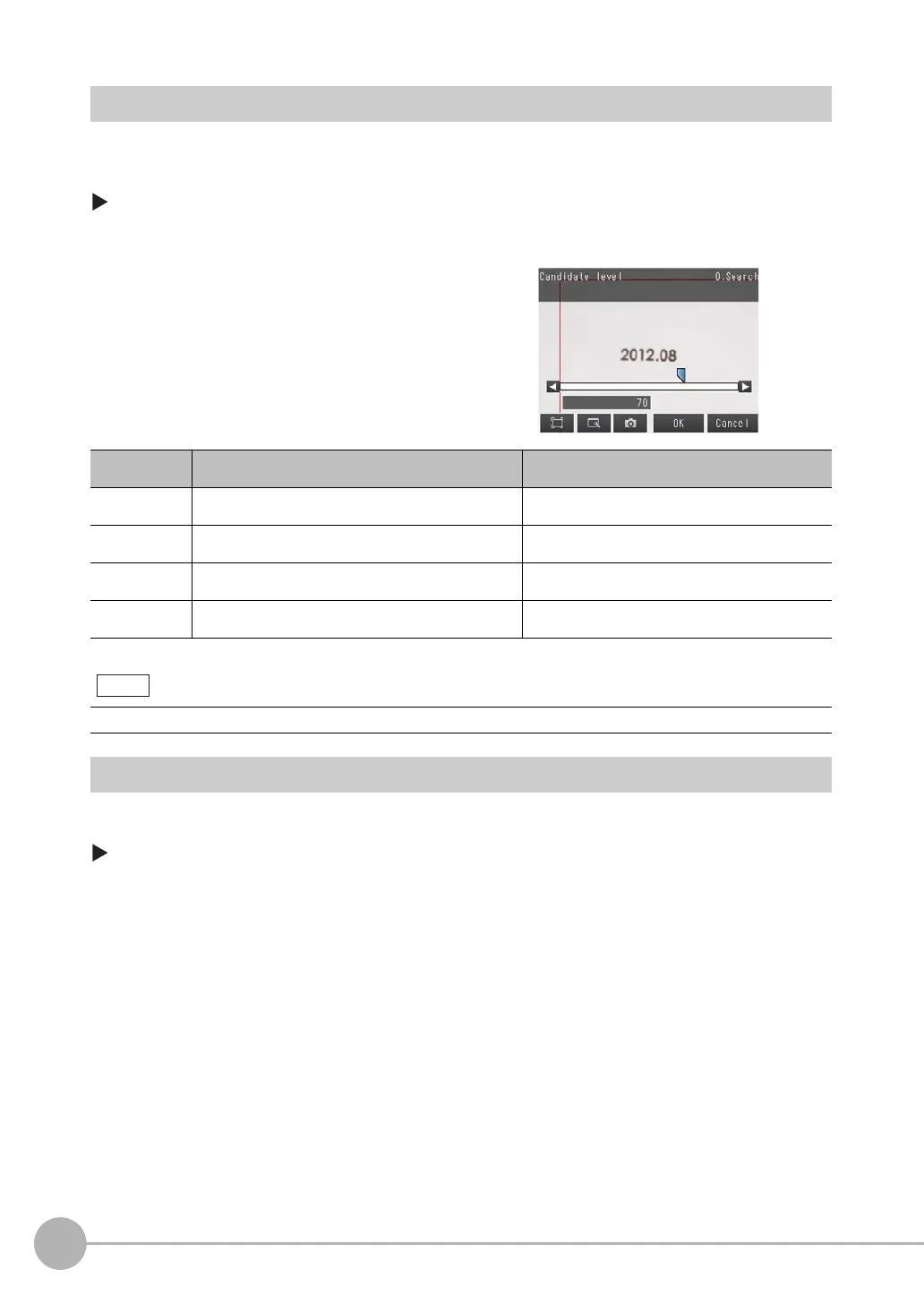

Inspecting with the Search Inspection Item
98
FQ2 User’s Manual
Select the Results to Output
You can use multiple conditions to determine which results to output from all the objects detected with a
correlation at the candidate level or higher.
Only the results that meet all the specified conditions are output.
[Inspect] − [Inspection] − [Search] − [Modify] − [Details] Tab Page − [Meas. Parameter]
Reflect in Total Judgement
You can specify whether to reflect the judgement results of an inspection item in the overall judgement. (The
default is to reflect them.)
[Inspect] − [Inspection] − [Add item.] − [Search] − [Details] Tab Page − [Output parameter]
1 Press [Extraction condition] and adjust the candi-
date level so that only objects higher than a certain
correlation are detected.
2 If [Multi-point output] is set to [Yes], you can specify
the output conditions for more than one result. (Ex-
traction X/Y and Detection count)
Extraction condi-
tion
Range Description
Candidate level 0 to 100 Outputs only objects with a correlation that is higher
than the specified candidate level.
Extraction X −99999.9999 to 99999.9999 Results are output only for objects with a measured X
coordinate that is within this range.
Extraction Y −99999.9999 to 99999.9999 Results are output only for objects with a measured Y
coordinate that is within this range.
Detection count 1 to 32 Sets the maximum number of detection results to out-
put.
The processing time changes if you change the candidate level.
