Checking Recent Measurement Trends (Recent Results Logging)
The most recent measurement results can be logged inside the Sensor.
Even if data is not logged in external memory, such as an SD card, trends in measurement results can be
easily checked on the Touch Finder.
However, if the power supply is turned OFF or the scene is changed, this data will be lost.
Setting Logging Conditions
Use the following procedure to set the conditions for the measurement data, image data, and statistical data
that will be logged.
Some of these operations and settings are the same as for file logging.
Setting Logging Conditions: p. 209
Trend monitor
p. 184
Histogram
p. 185
Statistical data
p. 182
Item Description
Statistical data Statistical data, such as the number of measurements, the number of NG overall judgements, and the
NG rate, since the power supply was turned ON will be logged.
• ON: Statistical data will be displayed (default).
• OFF: Statistical data will not be displayed.
Logging image (image data) These are the same as for file logging.
Logging data (measurement
data)
The logging parameters for image data and measurement data are the same as those for file logging.
Touch Finder
Statistical Data
Sensor

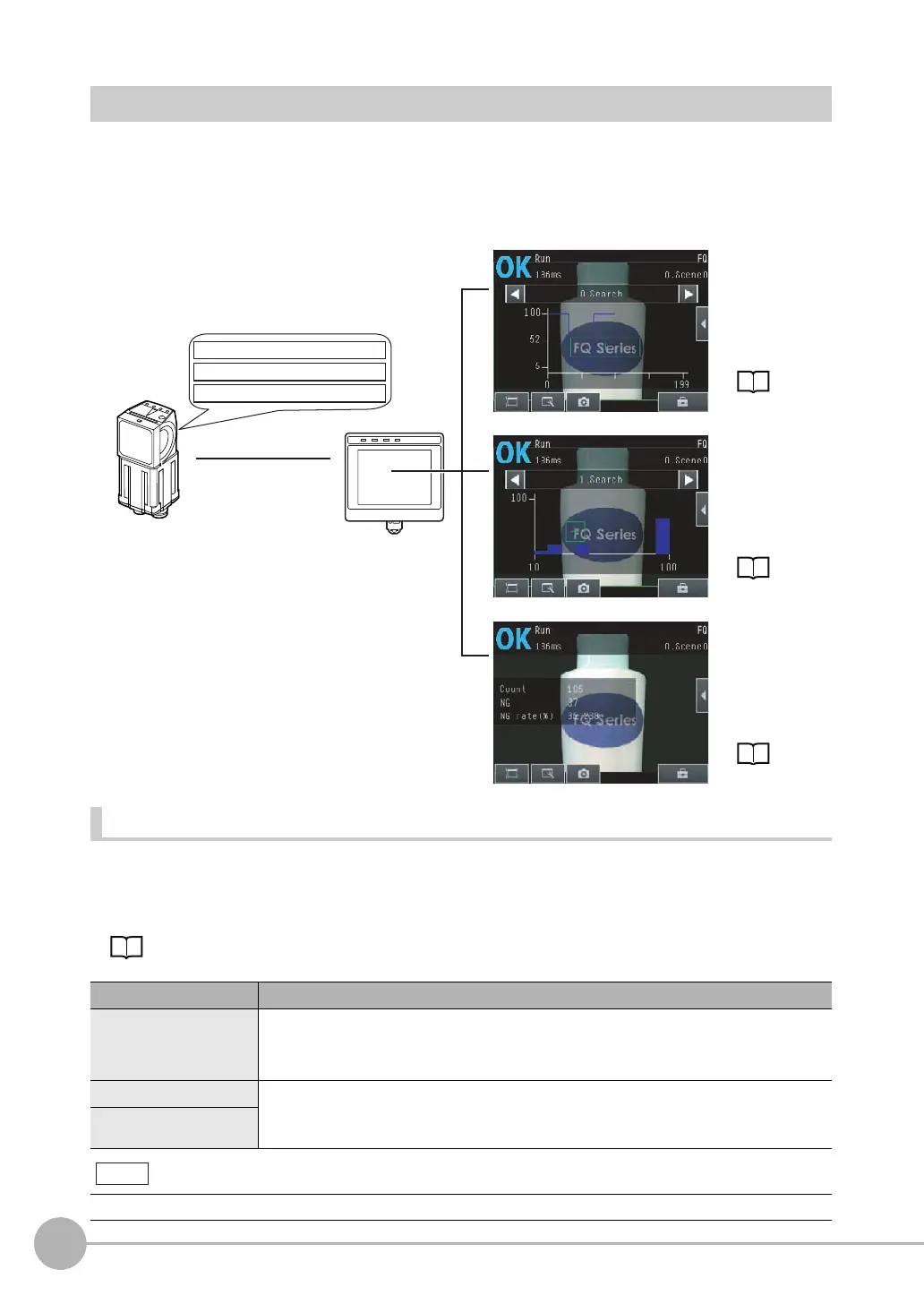

Image data: Most recent 20 images
Measurement data, Calculation result: Most recent 1,000 values
Recent measurement results
Note
To Next Page
