4
Setting Up Inspections
Inspecting with the Edge Pitch Inspection Item
FQ2 User’s Manual
131

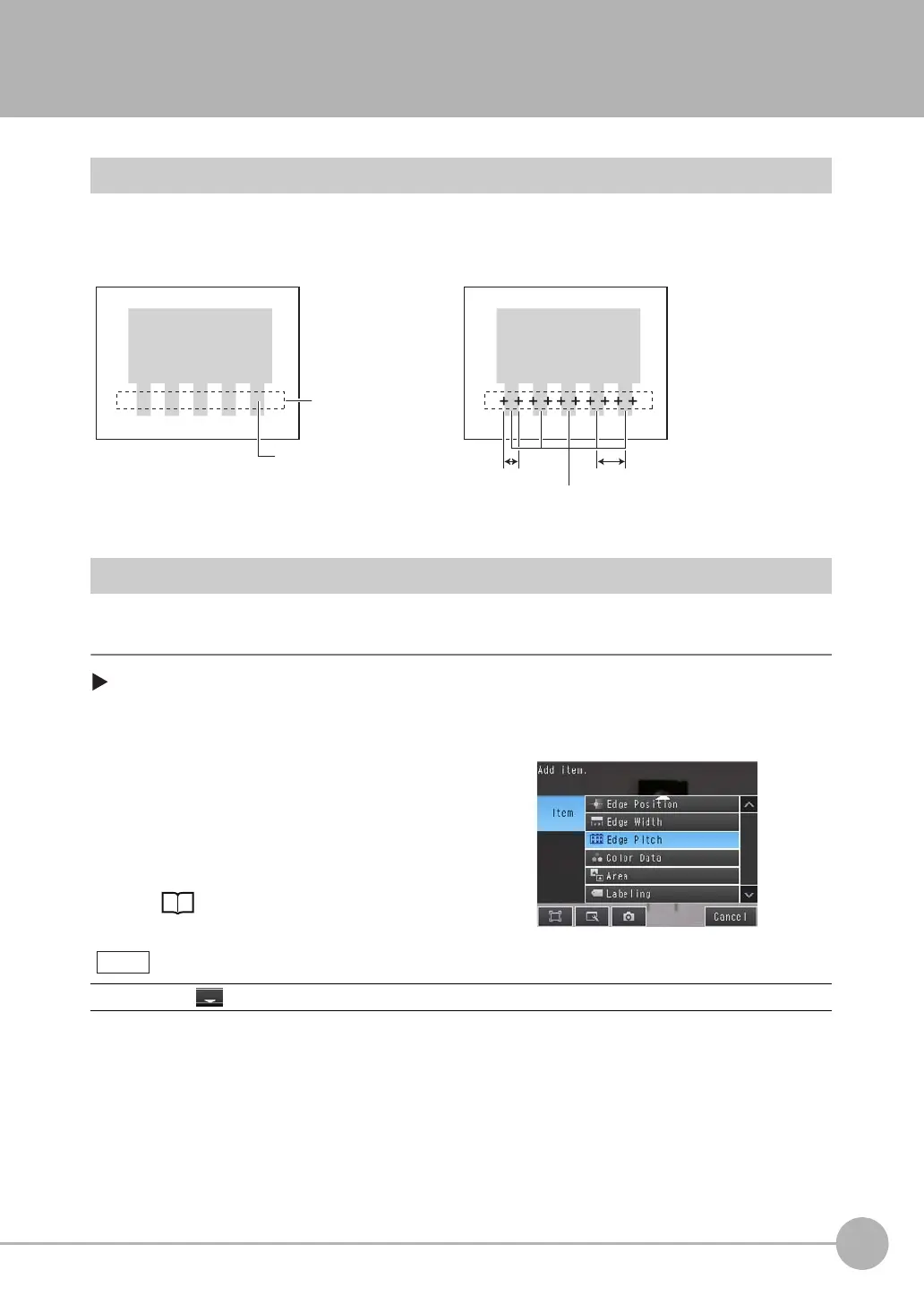

4-9 Inspecting with the Edge Pitch Inspection Item
Edge Pitch Inspection Item
This inspection item is used to detect edges through changes in brightness within a region. Edges of the
specified color in one measurement area are found and the number objects, object width, and pitch are output.
Setup Procedure for Edge Width Inspection Item
Step 1 Selecting the Inspection Item
[Inspect] − [Inspection]
1 Press an unused inspection item number and press
[Add item.].
2 Press [Edge Pitch].
Registering inspection items: p. 93
Drag the arrow at the bottom of the menu upward to display all of the inspection items.
Sample Settings Sample Measurement
Measurement region
Target color: Dark
Pitch
(distance between center points)
Width
Number
of objects
Note
