Inspecting with the Area Inspection Item
144
FQ2 User’s Manual
Changing the Area Detection Conditions
You can fill in the area detected through color extraction or binary conversion to perform a stable extraction of
the areas and their characteristics or to mark only areas inside the measurement region for inspection.
[Inspect] − [Inspection] − [Aria] − [Modify] − [Details] Tab Page − [Meas. Parameter]
Increasing Processing Speed for Area
Make the measurement region smaller to reduce the processing time.
Changing the measurement region: p. 102

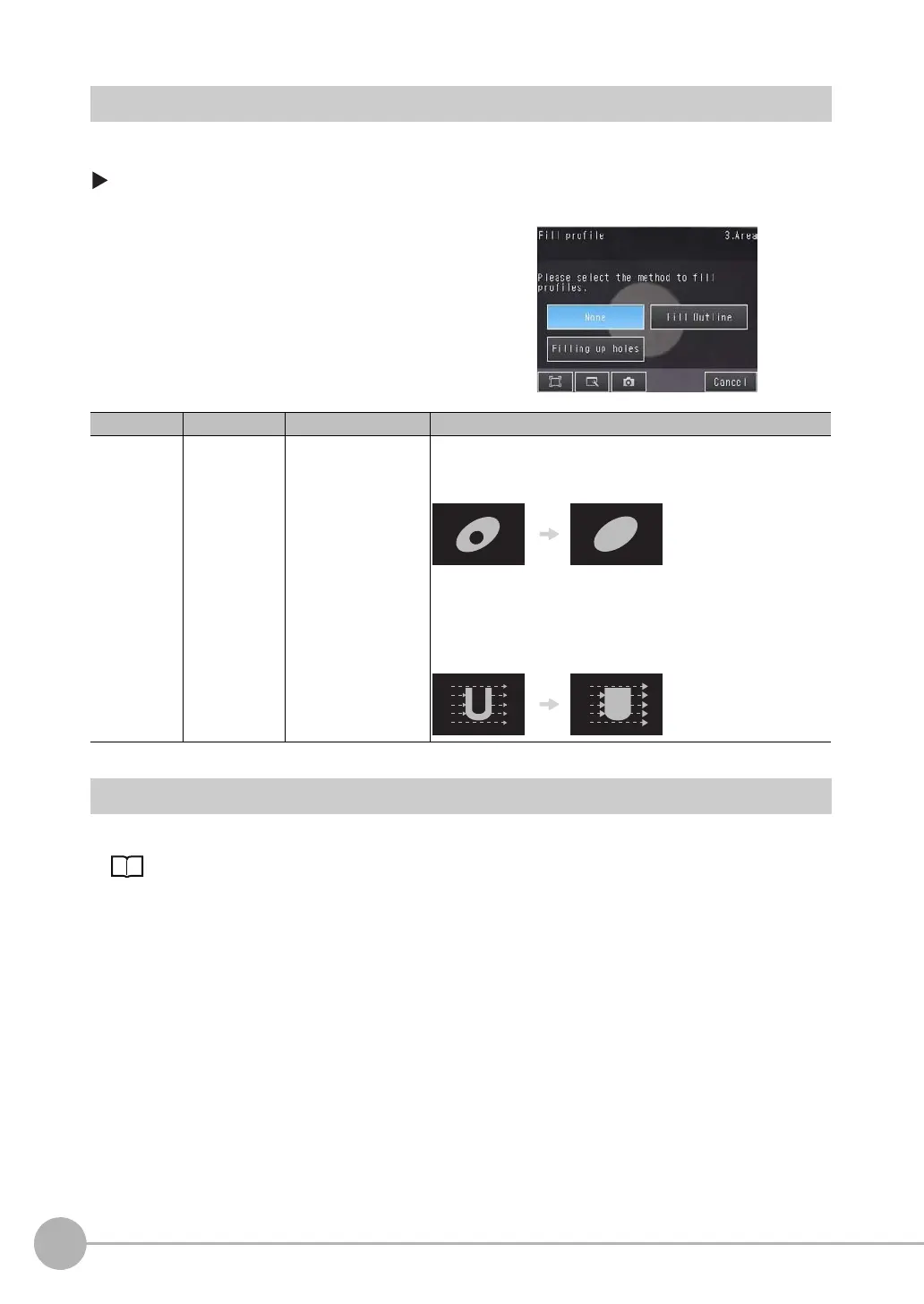

1 Press [Fill profile] and select [Filling up holes] or [Fill
Outline].
Item Parameter Setting Description
Meas.Parame-
ter (measure-
ment
parameter)
Fill profile Filling up holes
Fill Outline
None
Default: None
None: Holes are not filled.
Filling up holes: Processes areas that are surrounded by the specified
color, like in the shape of a donut, as the specified color.
Fill Outline:
Measures the image between the first extracted point and the last
extracted point in the X axis direction in the measurement area as the
extracted color.
Because filling is performed only in the X axis direction, this method is
faster than filling up holes.
Input Image Filled Image
Input Image Image Following Fill Outline
To Next Page
