Setting Up Inspections
Inspection Item Selection Guide
FQ2 User’s Manual
90
4-1 Inspection Item Selection Guide

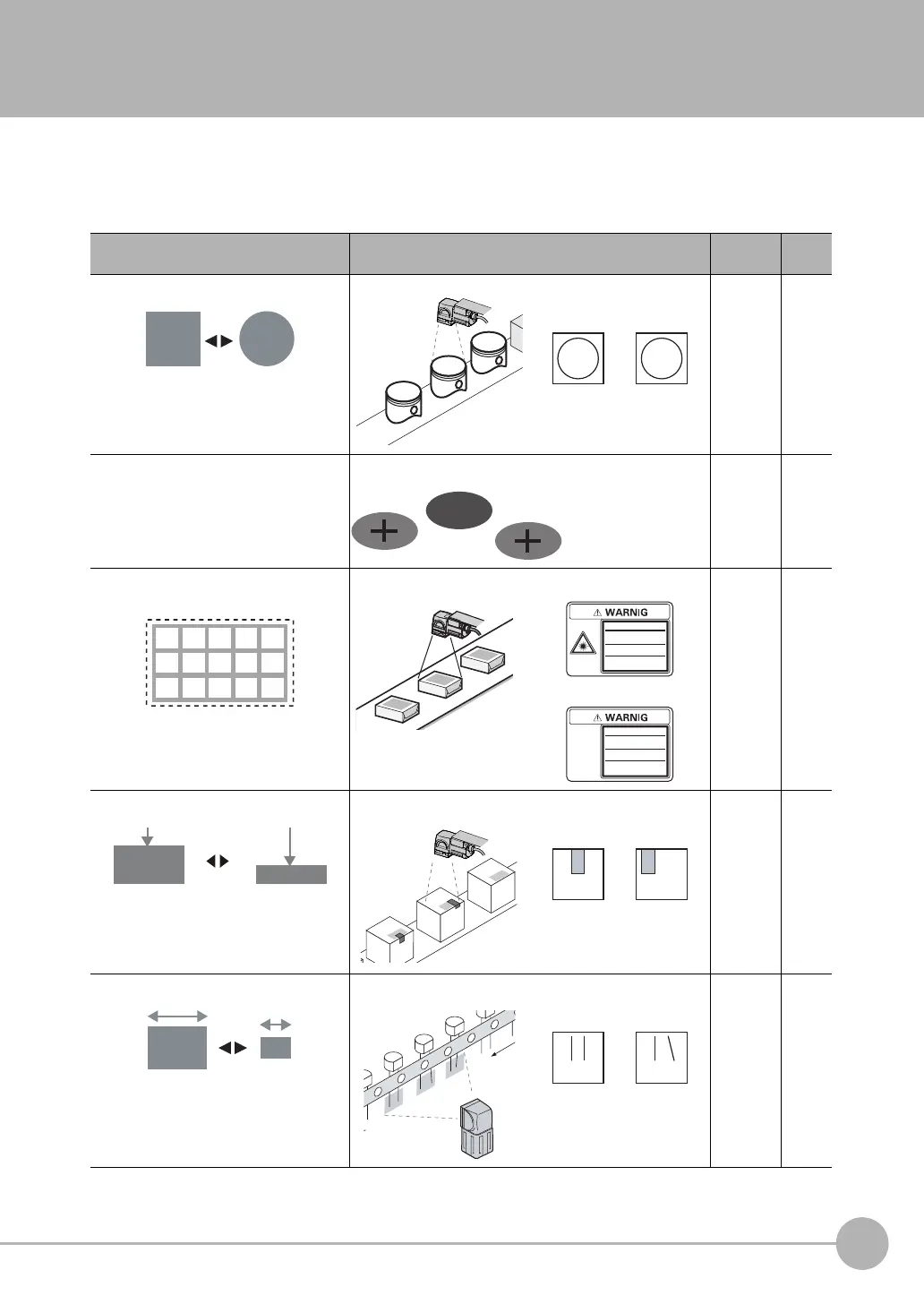

The FQ2 Vision Sensor uses inspection items to judge measurement objects. There are eight different
measurement objects. Select the best inspection items for the characteristics of the measurement object that
are being judged.
Inspection Example Inspection
items used
Refer-
ence
Judging according to shapes Judging if there is a mark Search or
Shape
Search II
p. 95
p. 105
Detecting positions with patterns Measurement objects of the same color and pattern can be
detected.
Search p. 95
Dividing the measurement area and judging
according to shapes for each division
Judging minute differences in
printed labels
Sensitive
Search
p. 113
Judging according to positions Measuring the position offset of
a seal
Edge Posi-
tion
p. 120
Judging according to widths Measuring the width between
lead wires
Edge
Width
p. 127
ITJ
OK
ITJ
OK
NG
ITJ
OK NG
OMRON
OMRON
LED RADIATION
DO NOT STARE
INTO BEAM
CLASS 2 LED PRODUCT
JIS C 6802:2005
Max.65mW
400-700nm
LED RADIATION
DO NOT STARE
INTO BEAM
CLASS 2 LED PRODUCT
JIS C 6802:2005
Max.65mW
400-700nm
OK
NG
OK NG
OK NG
