Inspecting with the Edge Pitch Inspection Item
132
FQ2 User’s Manual

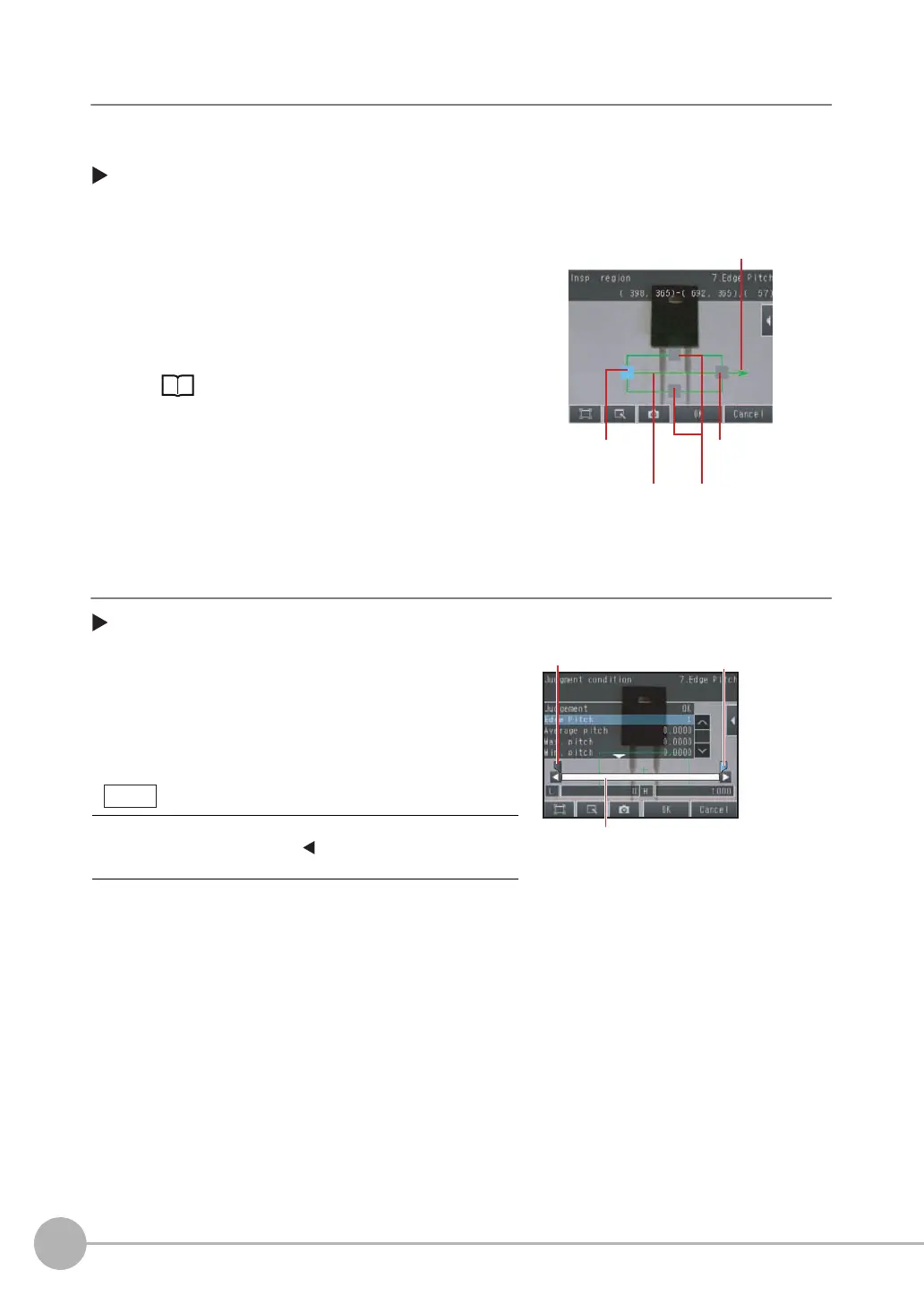

Step 2 Teaching
Teaching means to store the region as reference data for the measurement.
[Inspect] − [Inspection] − [Add item.] − [Edge Pitch] − [Settings] Tab Page
Step 3 Adjusting the Judgement Parameters
[Inspect] − [Inspection] − [Add item.] − [Edge Pitch] − [Settings] Tab Page
1 Press [Teach].
2 Place the object that is to be used as the measure-
ment reference in front of the camera.
3 Move the rectangle to the location to be measured.
4 Press [OK].
Changing the Measurement Region: p. 102
1 Press [Judgement].
2 Press the parameters and set the range that is to be
judged as OK.
Continuous measurements will be performed for the im-
ages that are displayed. The measured value is dis-
played beside the parameter name.
3 Press [OK] to enter the value.
The middle arrow is the direction
for detecting an edge.
Moves the end point of
the measurement region.
Changes the width
of the measure-
ment region.
Moves the starting
point of the
measurement region.
Drag to move
the region.
Blue for OK. Red for NG.
Upper limit
Lower limit
You can change the parameters for judgement conditions on the
Display Settings Display. Press
[] − [Display setting] on the right
of the display to switch to the Display Settings Display.
Note
