Inspecting with the Search Inspection Item
FQ2 User’s Manual
4
Setting Up Inspections
101

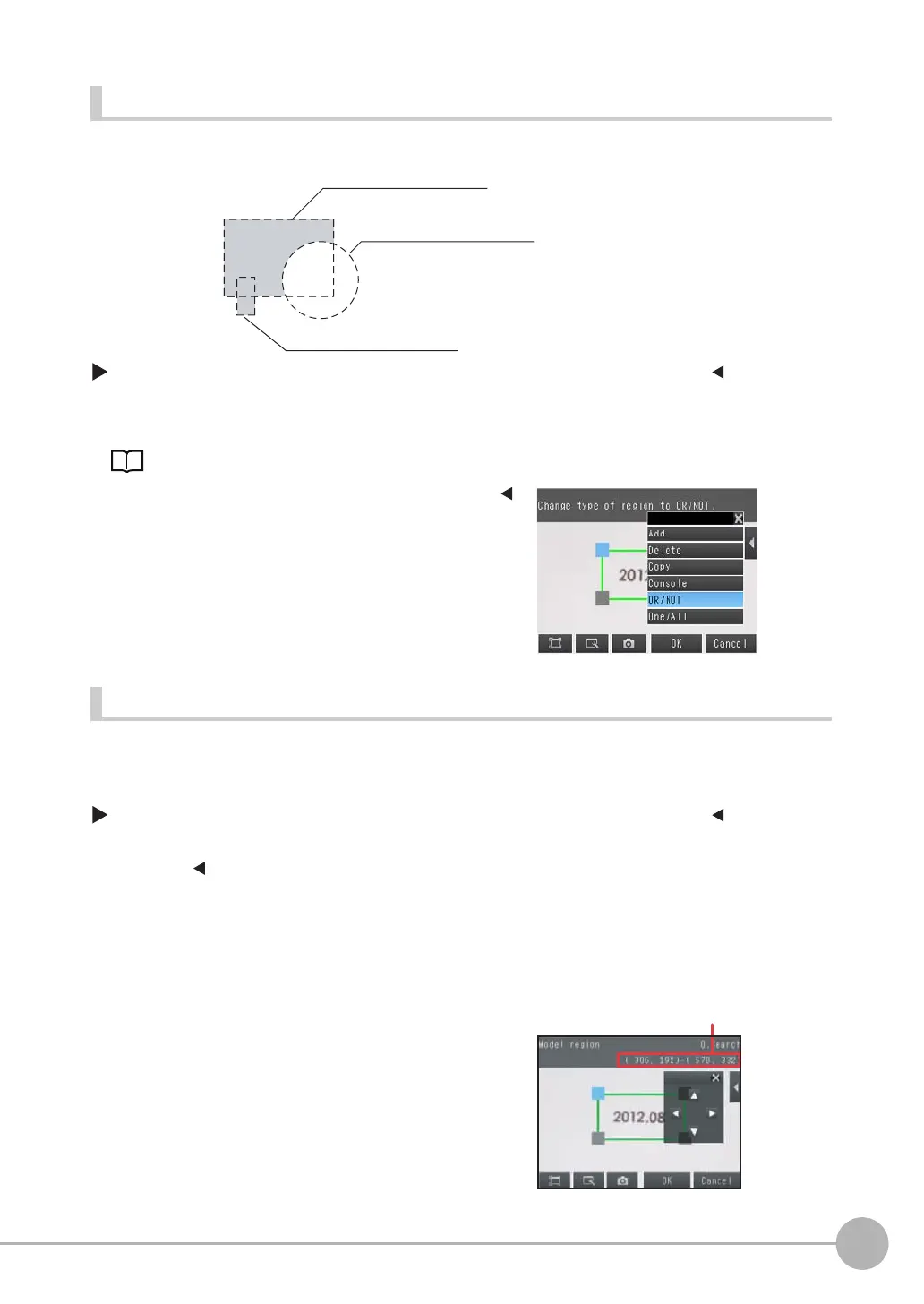

Masking Parts of the Model
The model registration region can be formed freely by combining enabled and disabled regions.
[Inspect] − [Inspection] − [Search] − [Modify] − [Settings] Tab Page − [Teach] − [] − [Model
region]
Fine-tuning the Position of the Region
This section describes the console which is useful to fine-tune the position of the measurement region or the
model registration region in 1-pixel increments.
[Inspect] − [Inspection] − [Search] − [Modify] − [Settings] Tab Page − [Teach] − [] − [Model
region]
1 Draw the figure according to the section that you want to mask.
p. 100
2 While the figure to be masked is selected, press [ ]
on the right of the display and then press [OR/NOT]
The selected area will be removed from the model.
Every time you press [OR/NOT], the area will switch be-
tween being enabled and disabled.
OR: Enabled range
NOT: Disabled range
1 Press [ ] – [Console] on the right side of the display
where you draw the region.
The console will appear.
2 To adjust the position of the figure, press within the
frame. To adjust the size of the figure, press a corner
of the figure.
3 Use the cross-key to align the figure with the search
object.
The position of the figure can be adjusted by pressing the
cross-key. Pressing it once will change the coordinate
values by one pixel.
Figure 3: Enabled range
The gray section
is the model
region.
Figure 2: Disabled range
Figure 1: Enabled range
Example:
To Next Page
