Inspecting with the Edge Position Inspection Item
124
FQ2 User’s Manual

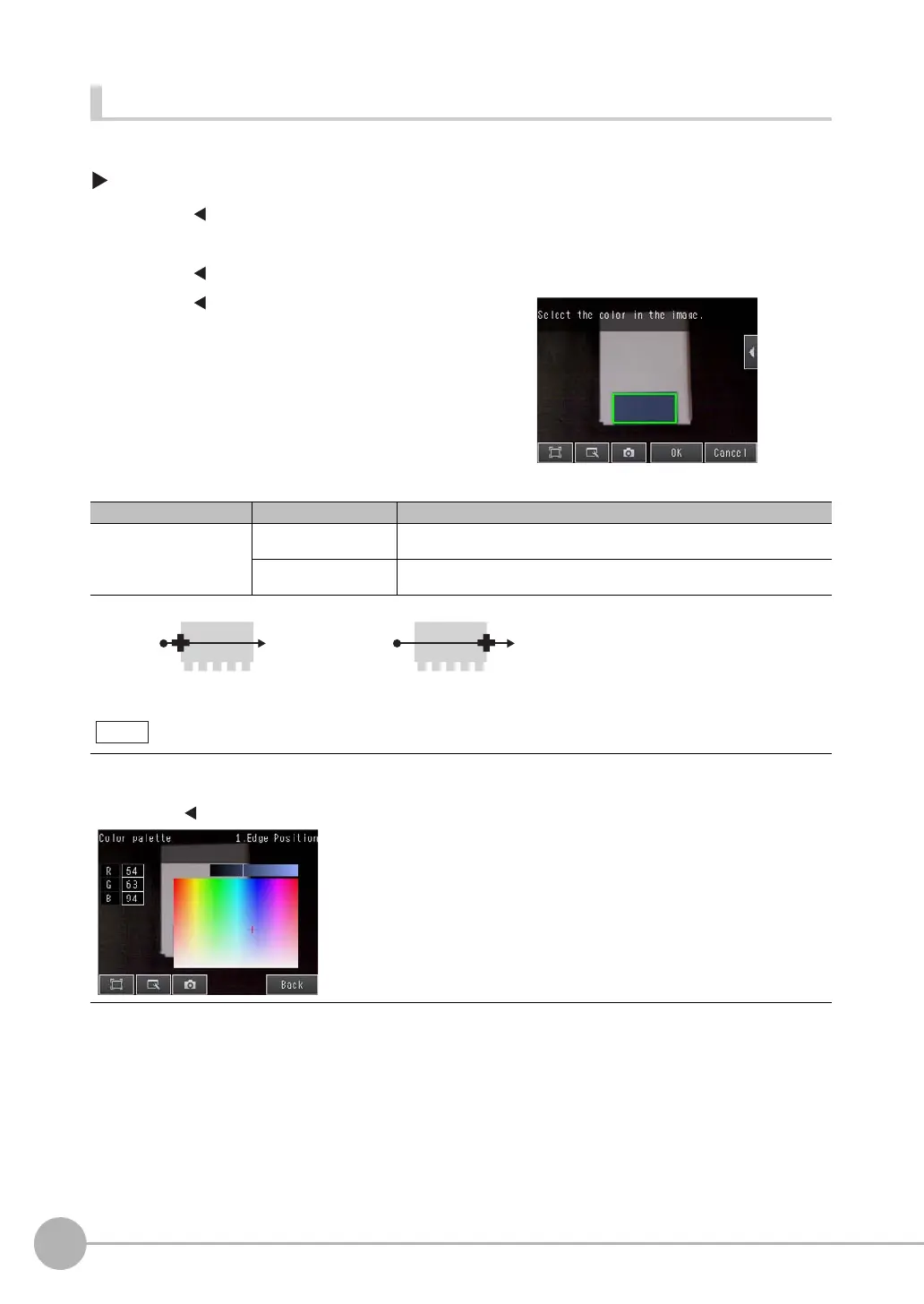

Undesired Edge Position Is Automatically Detected When Teaching (Sensors with Color Cameras Only)
Manually set the color of the edge that you want to detect.
[Inspect] − [Inspection] − [Edge Position] − [Modify] − [Settings] Tab Page − [Teach]
1 Press [ ] – [Color ON/OFF] on the right side of the display.
2 Press [ON].
3 Press [ ] − [Set color.] on the right of the display.
4 Press [ ] − [Detection mode] on the right of the dis-
play and select one of the following detection modes.
5 Draw a rectangle around the color that you want to
use to extract an edge.
The specified color will be extracted.
(Only a rectangle can be used to specify the region.)
6 Press [OK] to enter the edge color.
7 Press [TEACH] again.
8 Press [Back].
Item Parameter Description
Detection mode Color IN Detects as an edge any position where the color changes from another color
to the specified color.
Color OUT Detects as an edge any position where the color changes from the specified
color to another color.
It is also possible to check the extraction colors or specify them using the color palette.
The RGB values of the extraction color can be checked and adjusted using the color palette.
If you press [ ] − [Color palette], a color palette will appear.
Beginning
position
Ending
position
Color IN
Beginning
position
Ending
position
Color OUT
Note
When a color is pressed on
the color palette, its RGB
values will be displayed.
