Inspecting with Color Data Inspection Item
FQ2 User’s Manual
4
Setting Up Inspections
137

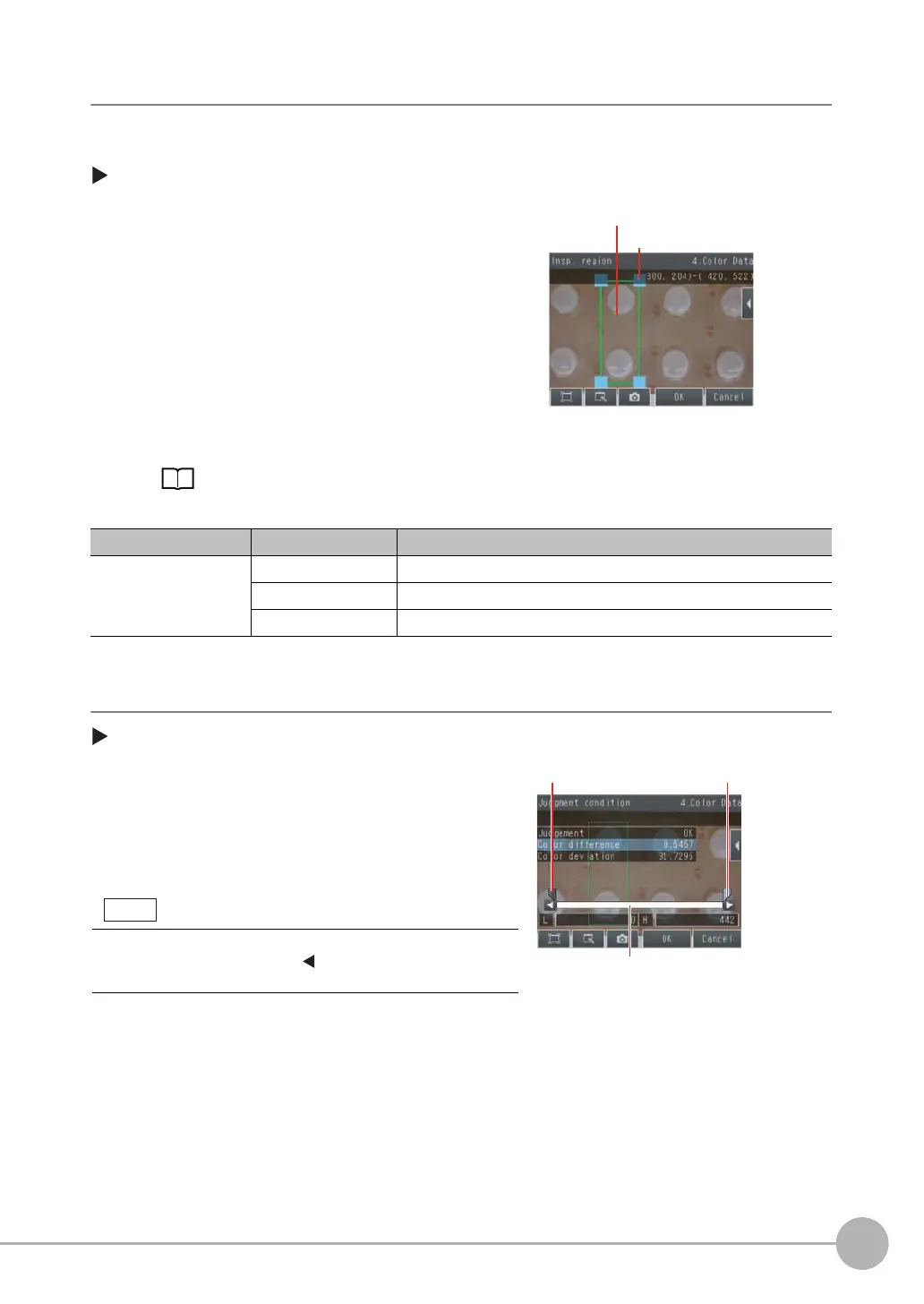

Step 2 Teaching
Teaching means to store the region and the average color in the region as reference data for the measurement.
[Inspect] − [Inspection] − [Add item.] − [Color Data] − [Settings] Tab Page
The following data is stored as the measurement reference.
Step 3 Adjusting Judgement Parameters
[Inspect] − [Inspection] − [Add item.] − [Color Data] − [Settings] Tab Page
1 Press [Teach].
2 Place the object that is to be used as the measure-
ment reference in front of the camera.
3 Move the rectangle to the location to be measured.
4 Press [OK].
5 Press [TEACH] on the lower right of the display.
The basic settings will be registered when teaching has
been completed.
6 Press [Back] to end teaching.
Changing the measurement region: p. 102
Item Parameter Description
Reference data Hue The hue to use as a reference is set automatically.
Saturation The saturation to use as a reference is set automatically.
Brightness The brightness to use as a reference is set automatically.
1 Press [Judgement].
2 Press the parameters and set the range that is to be
judged as OK.
The measured value is displayed beside the parameter
name. Continuous measurements will be performed for
the images that are displayed.
3 Press [OK] to enter the value.
Drag a corner to size the rectangle.
Drag the rectangle to move it.
Blue for OK. Red for NG.
Lower limit
Upper limit
You can change the parameters for judgement conditions on the
Display Settings Display. Press [
] − [Display setting] on the right
of the display to switch to the Display Settings Display.
To Next Page
