Calibration
198
FQ2 User’s Manual
Parameter
With this method, you directly enter values to set calibration.
The calibration parameters will be automatically calculated when you enter the following three parameters.

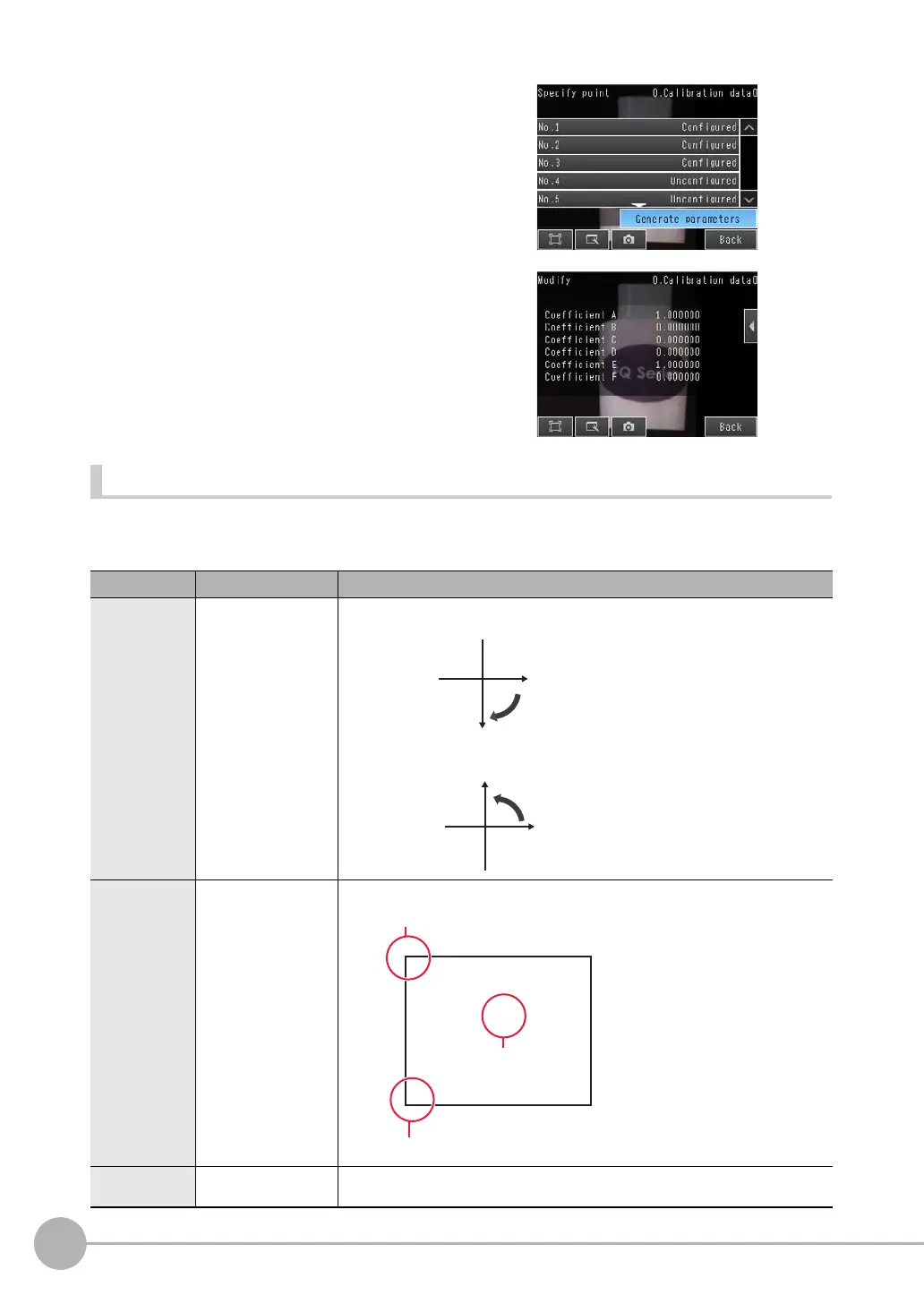

11 When you have finished setting the coordinates for
all of the positions, press [Generate parameters].
12 The calibration parameters will be displayed.
The items in the calibration parameters are the same as
those for point specification.
Parameter Setting Description
Coordinate (coor-
dinate system)
Righthand or Lefthand
Default: Lefthand
Lefthand: The positive direction is clockwise when coordinates are specified.
Righthand: The positive direction is counterclockwise when coordinates are specified.
Origin Upperleft, Lowerleft, or
Center
Default: Lowerleft
Select the location of the origin of the coordinate system.
Magnification 0.0001 to 9.9999
Default: 1.0000
Set the actual dimension that corresponds to one pixel.
Lefthand
Coordinate
System
Positive direction
Positive direction
Righthand
Coordinate
System
0
0
X
X
Y
Y
Upper left
Center
Lower left
