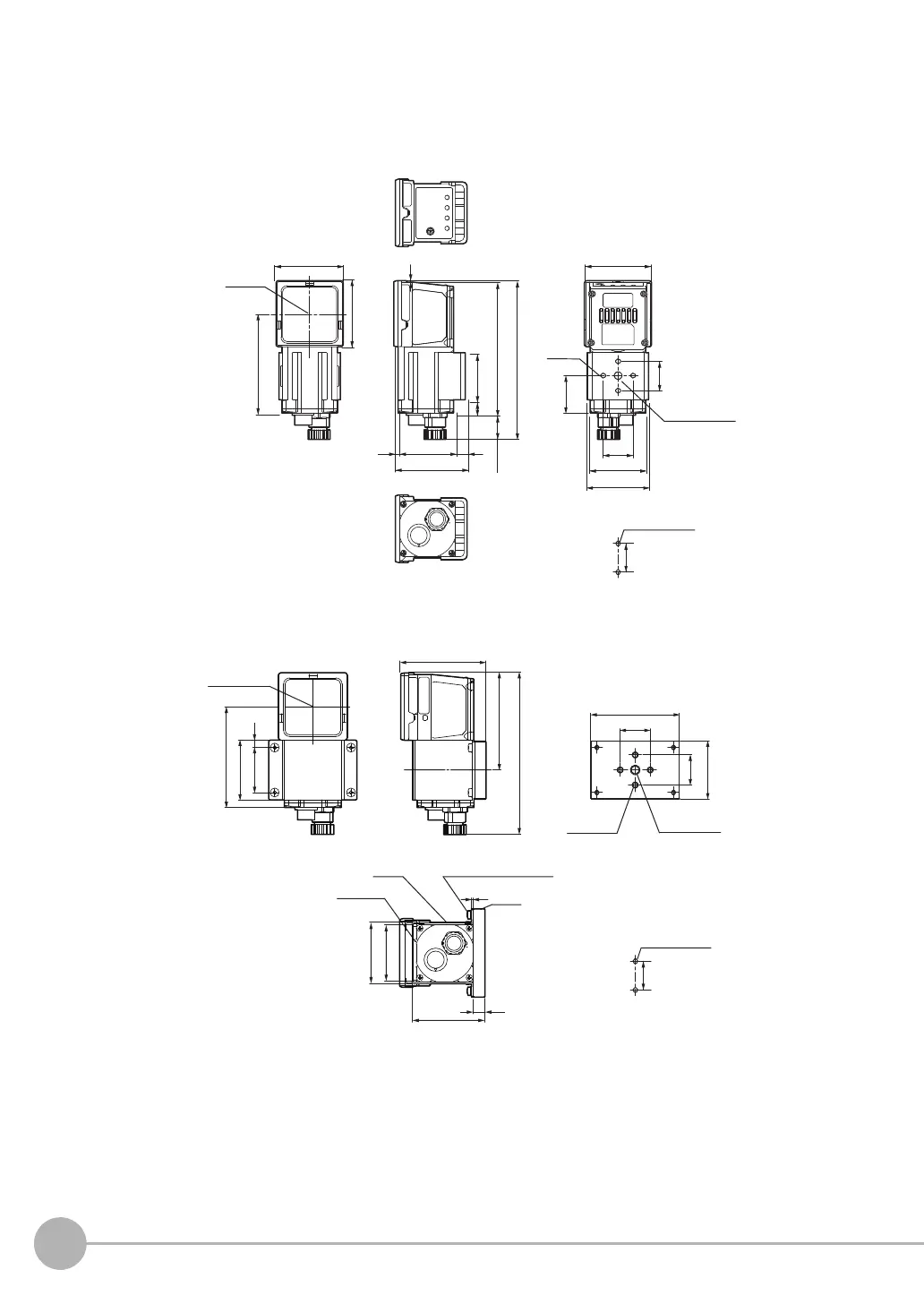

FQ2 User’s Manual
FQ2-S10100F/-S10100N/-S20100N
FQ2-S15100F/-S15100N/-S25100N
FQ2-S20100F
FQ2-S25100F
(Unit: mm)
FQ2-S30100F-08/-S35100F-08/-S30100F-08M/-S35100F-08M
FQ2-S30100N-08/-S35100N-08/-S30100N-08M/-S35100N-08M
See the diagram below when mounting bracket FQ-XL2 is attached. (Unit: mm)
383
1
(49)
8
32
(108)
(18)
9
20±0.1
46
45
67.5
44
20
20
38
42
(25)
90
4-M4
1/4-20UNC
Optical
axis
Mounting hole dimensions
Tightening torque: 1.2 N·m
Depth: 6
Depth: 6
Two, 4.5 dia.
38
41
49
t1
8
40
530
67
20±0.1
38.8
20±0.1
59
(65)
(108)
(57)
20±0.1
Plate
Cushion
Screw,set double head
Base
Optical axis
4-M4
Depth: 6
1/4-20UNC
Depth: 6
Mounting hole dimensions
Tightening torque: 1.2 N·m
Two, 4.5 dia.
