Adjusting the Images That Were Taken
FQ2 User’s Manual
81
3
Taking Images
• Measurement Data That Can Be Used for External Outputs and Calculations
The following values can be used as measurement data and output to external devices via Ethernet or used in
calculations.

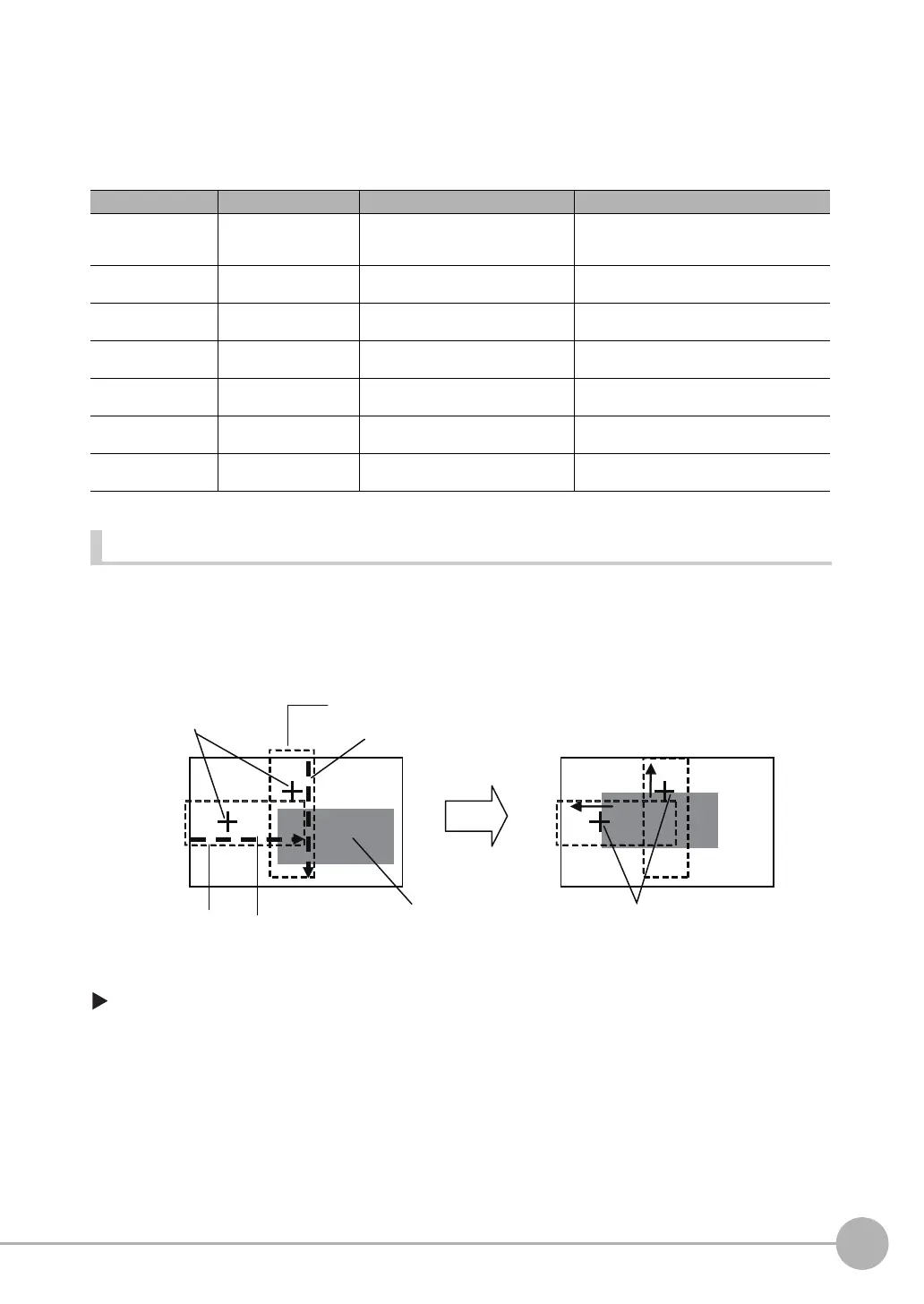

Two-edge Position Compensation
This position compensation item detects edges in two directions.
If the specified color is detected (or the specified density is detected for a Sensor with a Monochrome Camera),
it is recognized as an edge.
When an edge is recognized, the image is adjusted so that the edge appears at the position it was in when it
was registered.
[Image] − [Image adjustment]
Expression text string Data name Description Data range
JG Judgement This is the judgement result. −2: No judgement (not measured),
0: Judgement is OK,
−1: Judgement is NG
DX Scroll X This is the amount of position com-
pensation for the X coordinate.
−99,999.9999 to 99,999.9999
DY Scroll Y This is the amount of position com-
pensation for the Y coordinate.
−99,999.9999 to 99,999.9999
X Position X (edge position
X)
This is the X coordinate of the mea-
sured edge position.
−99,999.9999 to 99,999.9999
Y Position Y (edge position
Y)
This is the Y coordinate of the mea-
sured edge position.
−99,999.9999 to 99,999.9999
SX Reference X This is the X coordinate of the edge
position when it was registered.
−99,999.9999 to 99,999.9999
SY Reference Y This is the Y coordinate of the edge
position when it was registered.
−99,999.9999 to 99,999.9999
1 Press an unused number and then press [Add pos. comp.].
2 Press [Edge] − [2Edge position comp.]
3 Make any detailed settings as required for the position compensation processing.
Refer to Detailed Settings for Search Position Compensation, below.
4 Press [OK].
5 Press [Back].
Measurement region for edge 1
Edge search direction for edge 1
Measurement
region for edge 0
Edge search
direction for edge 0
Color of edge to be found
Registered position
of the edge
The image is adjusted so that the edge
appears at the position it was in when it
was registered.
