Section 2 NS Series Functions 2-5 Communications Address Settings
2-54
NS Series Programming Manual

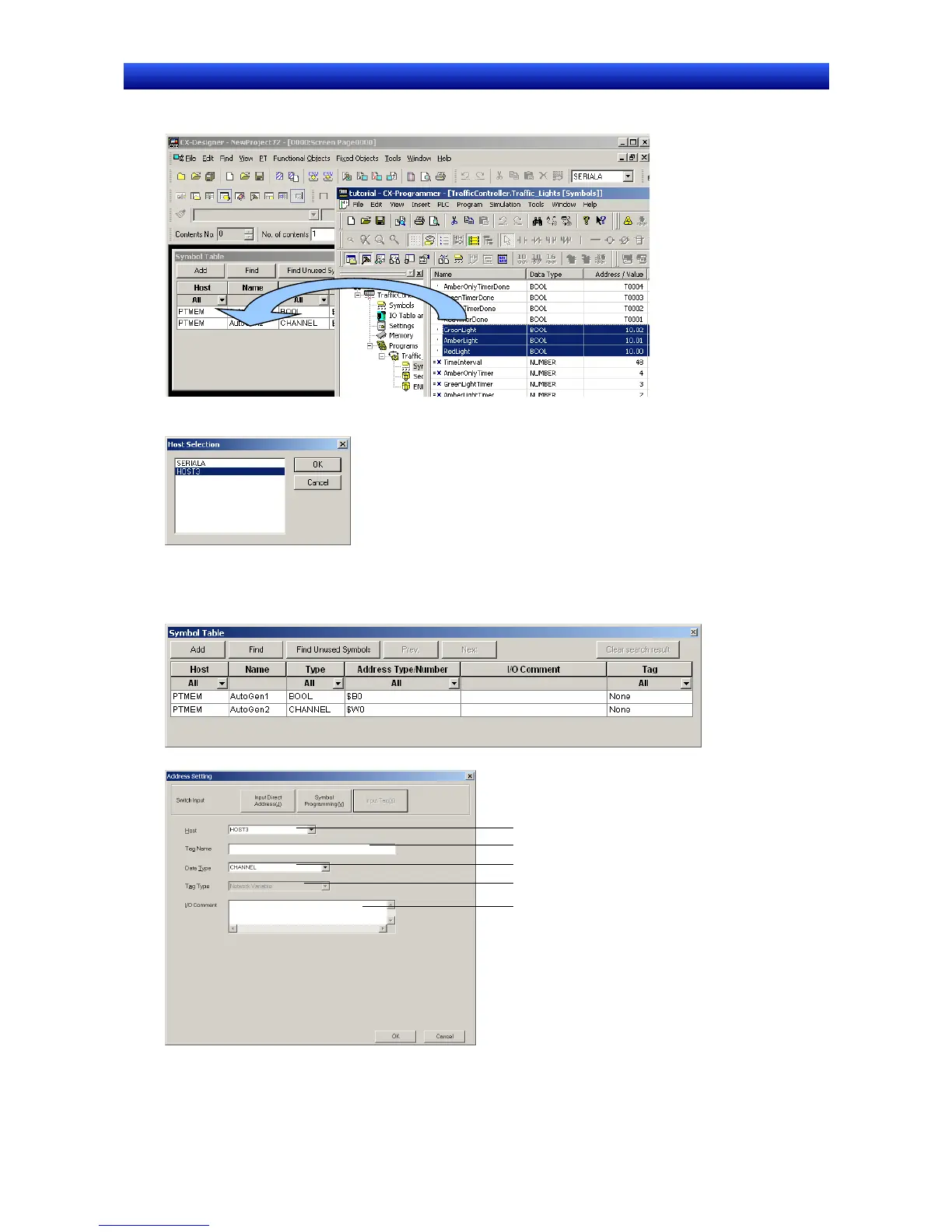

2. Drag and drop the tag to the CX-Designer’s symbol table to copy it.
3. A dialog box for selecting the host for which the tag will be set will be displayed. Select a host that
can use tags, and then click the OK Button.
4. The tag will be registered in the symbol table of the CX-Designer.
Registering New Tags in the Symbol Table
1. Click the Add Button in the CX-Designer’s Symbol Table Dialog Box.
2. The Address Setting Dialog Box will be displayed. Click the Input Tag Button.
1
2
3
4
5
To Next Page
