If functional objects that receive inputs are overlapped, the objects may not operate properly. When
creating a screen, do not overlap the following functional objects.
• ON/OFF Buttons • Alarm/Event display objects
• Word Buttons • Alarm/Event summary and history objects
• Command Buttons • Data log graphs
• Numeral display and input objects • Broken-line graphs
• String display and input objects • Date objects
• Thumbwheel switches • Time objects
• List selection objects • Data Block Table
♦
• Multifunction Object • Contents display
2-8-2 Address Settings (General Tab and Other Tabs)
If addresses are set in the properties of functional objects, the colors can be made to change depend-
ing on the status read via communications and the host can be notified when objects are pressed.

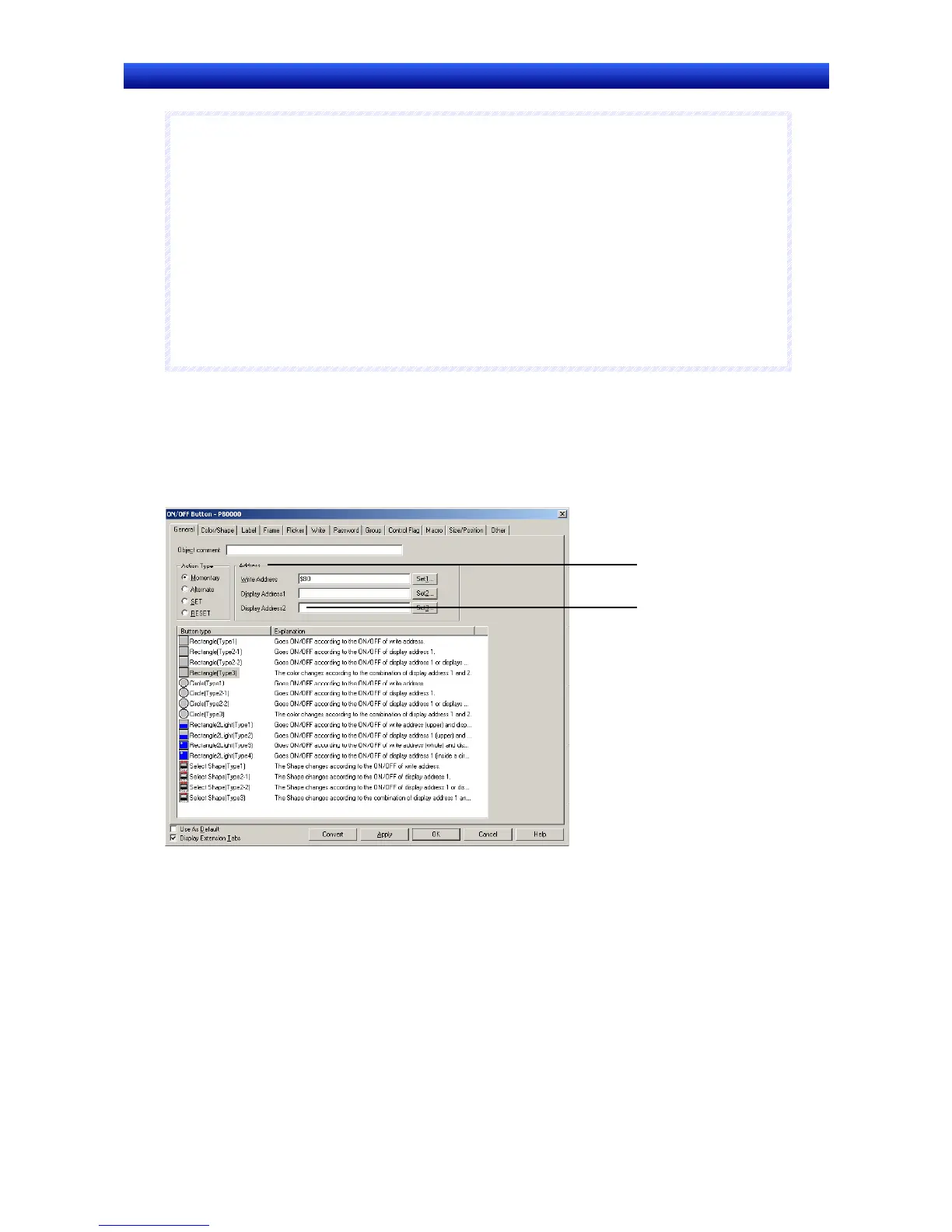

For example, the write address when an ON/OFF Button is pressed, as well as display address 1 and
display address 2 are set on the General Tab Page for an ON/OFF Button.
1
2
