2-17-2 Data Block Tables

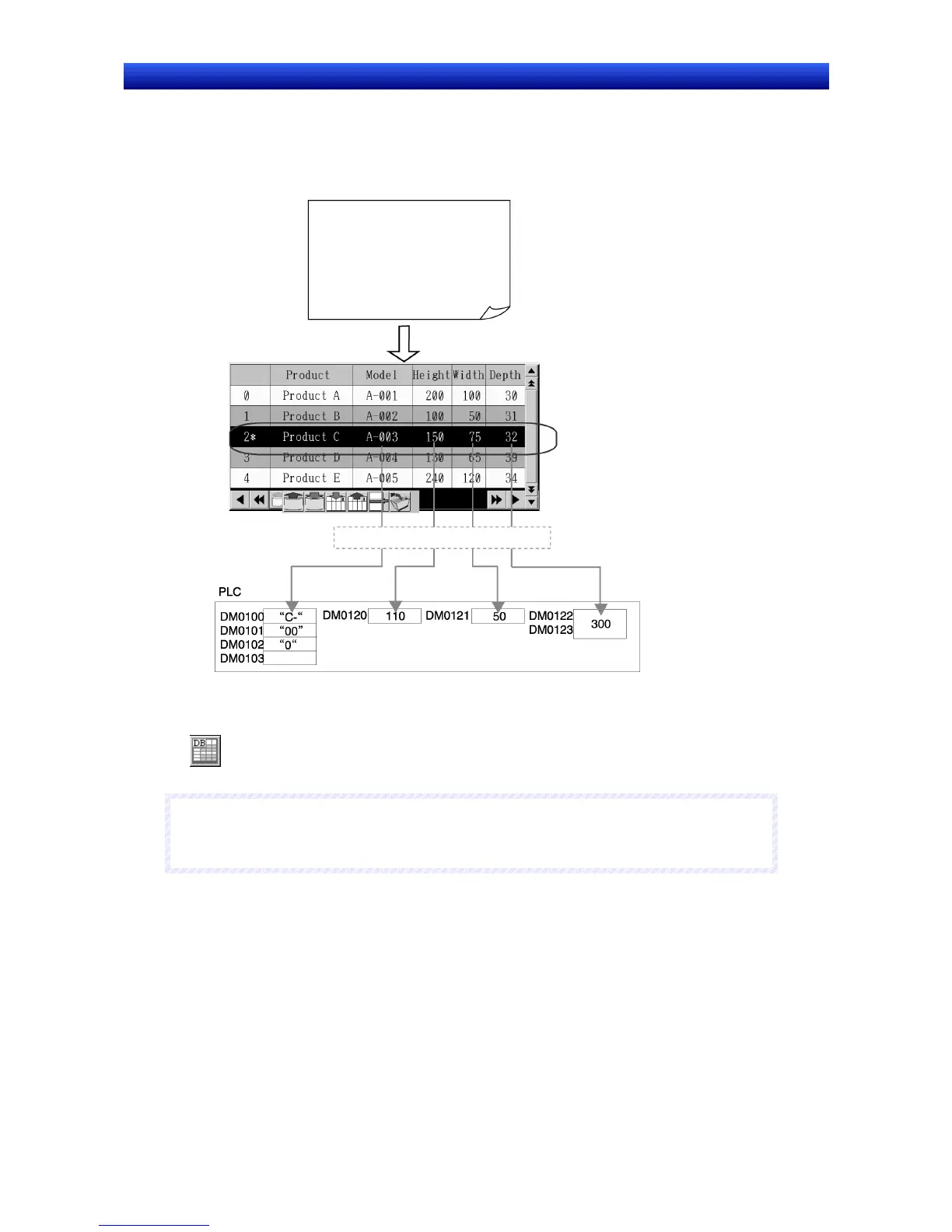

A data block table is a functional object that displays a preset data file as a table and sets the specified
data in the PLC.
"Product A", "A-000",100,20,200
"Product B", "B-000",90,22,180
"Product C", "C-000",110,50,300
"Product D", "D-000",80,15,200
"Product A1", "A-000",98,18,190
"Product B1", "B-000",95,25,175
"Product C1", "C-000",120,45,350
CSV-format data file
Data block table
Table display
Data written to PLC in single operation.
To create the data block table, select Data Block Table from the Functional Objects Menu or click
the icon.
N
N
N
o
o
o
t
t
t
e
e
e
♦
Only one data block object can be set for each screen.
Data blocks cannot be set for pop-up screens, sheets or inside of frames.
