Section 2 NS Series Functions 2-22 Transferring Device Data
2-501
NS Series Programming Manual
One device data transfer table can be used to transfer up to 1,024 data elements. The maximum
numbers of groups and entries that can be set may be less that those give above depending on the
numbers of data elements that are set. For example, if 1,024 data elements are set for entry 0 of group
0, then no other groups or entries can be set.

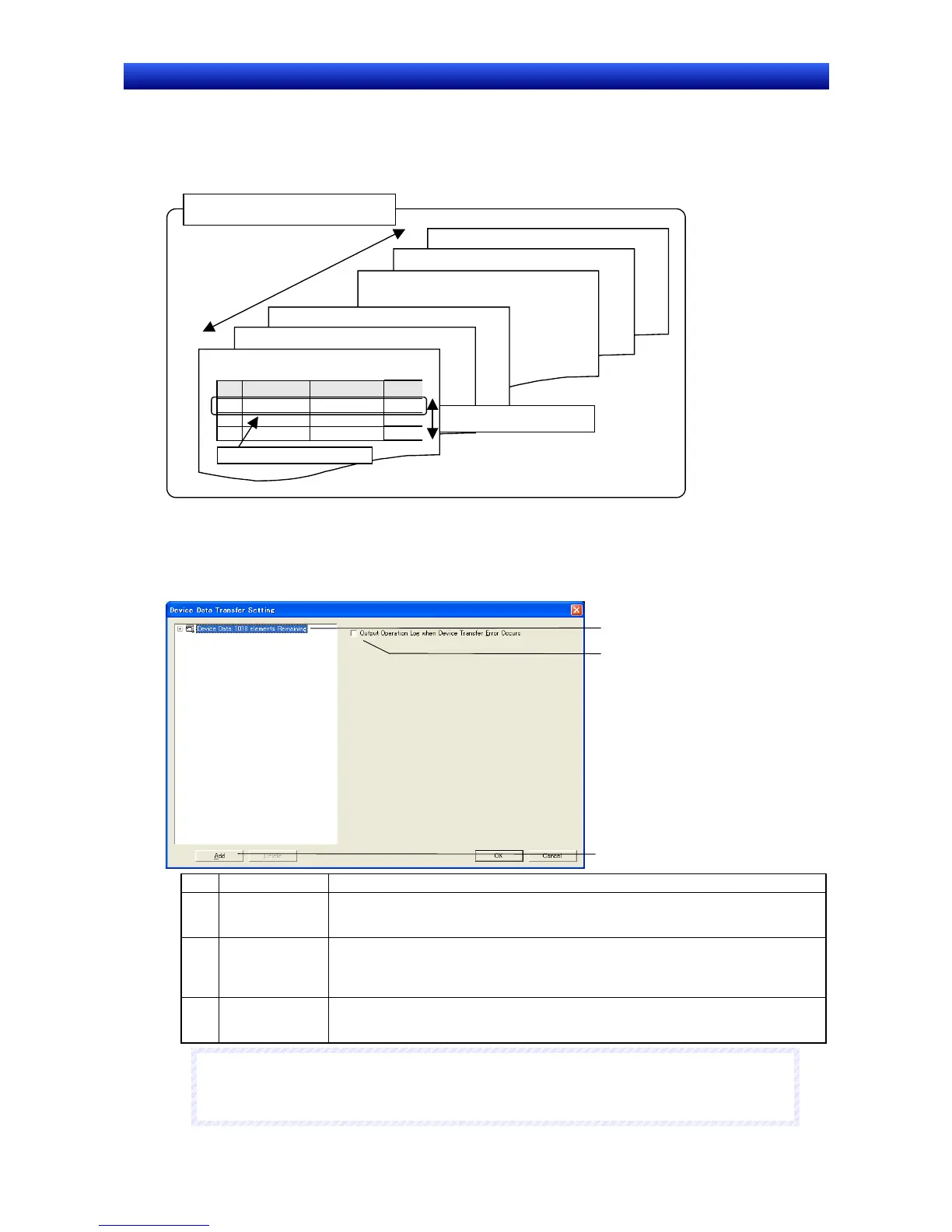

A schematic diagram for device data transfer settings is shown below.
Device Data Transfer Setting Table
No. Transfer source
Transfer
destination
Number of
elements
0 HOST1:00000 HOST2:DM00100 5
: : : :
1023 HOST1:00000.0 HOST2:DM00100 1
Device data transfer entry
Device data transfer setting group 0
Trigger condition: CIO 10.5 turning ON
Device data transfer entry
Maximum: 1,024
Device data transfer setting group 1
Device data transfer setting group 2
Device data transfer setting group 7
Device data transfer setting group 8
Device data transfer setting group 9
Device data transfer setting groups
Maximum: 10
2-22-2 Device Data Setting Dialog Box
Select Device Data Transfer Settings from the PT Menu. The Device Data Transfer Setting Dialog Box
will be displayed.
Device Data Transfer Setting Table
1
2
3
No. Item Description
1
Device data
transfer setting
table
Displays the device data transfer setting table and the number of elements remaining that
can be set.
2
Output Operation
Log when Device
data Transfer
Error Occurs
When this check box is selected, a transfer error will be output to the operation log when a
device transfer error occurs.
3
Add Button
Click the Add Button to add a device data transfer setting group. (The operation is the same
as right-clicking the device data transfer setting table and selecting Add from the pop-up
menu.)
N
N
N
o
o
o
t
t
t
e
e
e
♦
The Device Data Transfer Setting Dialog Box can also be displayed by selecting Device Data
Transfer Setting on the Common Settings Tab Page in the Property Workspace Window.
