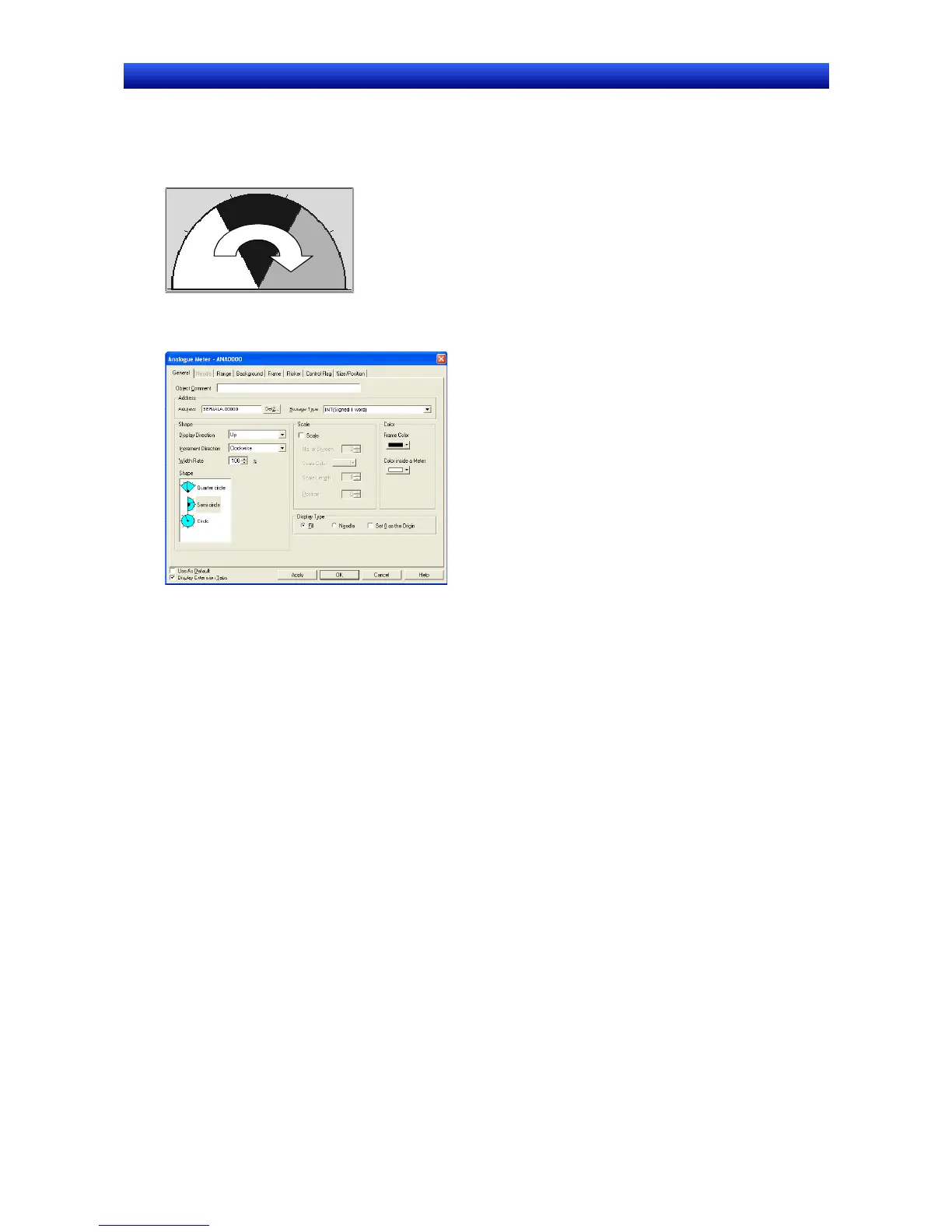

2-13-4 Analogue Meter
Analogue meters are objects that are displayed as quarter-circle, semi-circle, or circle graphs. The dis-
play direction (up, down, left, or right) and incremental direction for the meter (clockwise or
anti-clockwise) can be set.
Settings for Functional Object Properties
This section describes the settings in the Functional Object Properties Dialog Box for analogue meters.
General: Sets the address and display type.
Needle: Sets the needle type and style. (See note 1.)
Range: Sets the border (boundary value) and color for each range.
Background: Sets the object background color.
Frame: Sets the analogue meter frame display.
Flicker: Sets the flicker display. (See note 2.)
Control Flag: Sets display/no display for the analogue meter. (See note 2.)
Size/Position: Sets the object size and position. (See note 2.)
Note 1: Can be set only when Needle is selected as the display method on the General Tab Page.
Note 2: These tabs are displayed when the Display Extension Tabs Option is selected.
