Section 2 NS Series Functions 2-13 Display
2-287
NS Series Programming Manual

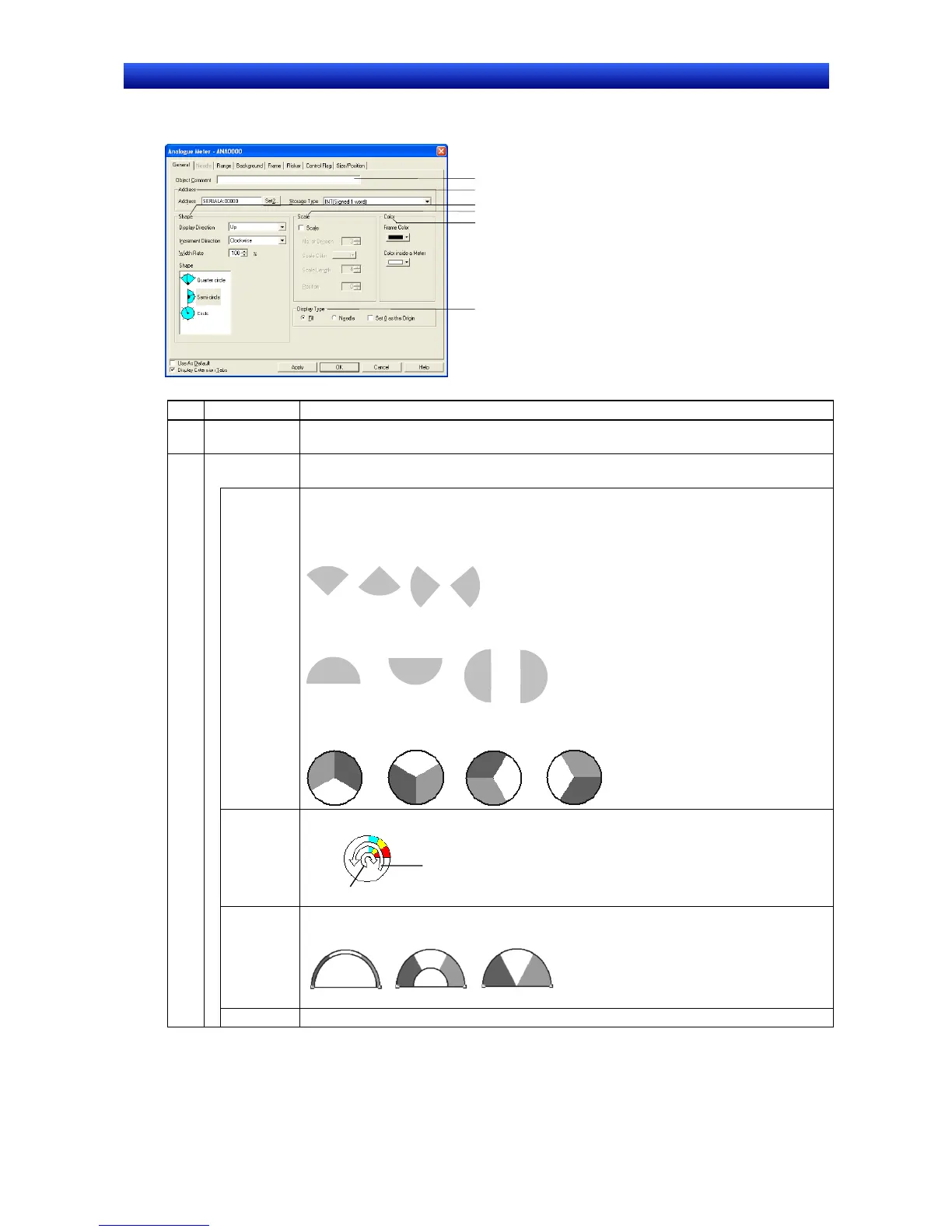

General Tab Page
Sets the address and character display format for analogue meters.
1
2
3
4
5
6
No. Setting Details
1
Object
Comment
Sets an explanatory comment for the pasted object (up to 32 characters).
2 Shape
Sets the analog meter shape. Select the meter shape from the list: Quarter circle,
semi-circle, or circle.
Display
direction
Set the display direction as Up, Down, Left, or Right for quarter-circle and semi-circle
meters. For circle meters, the starting point for the meter is set by the display direction.
Quarter-circle Analogue Meters
Up Down Left Right
Semi-circle Analogue Meters
Up Down Left Right
Circle Analogue Meters
Up Down Left Right
Increment
direction
Sets the incremental direction for the meter.
Clockwise
Anti-clockwise
Width
Rate
Specifies the meter width as a percentage of the radius (10% to 100%).
Example: When meter widths for semi-circle meters set to Up
10% 50%
100%
Shape Selects the shape from a quarter circle, semi-circle, and circle.
