Automatically Setting the Symbol Name or I/O Comment as the Label Text
When the communications address is set for the following functional objects, the symbol name or I/O
comment can be automatically set as the label text.
ON/OFF Buttons (when setting the Write Address)
Word Buttons (when setting the Write Address)
Bit Lamps (when setting the Display Address)
Word Lamps (when setting the Display Address)

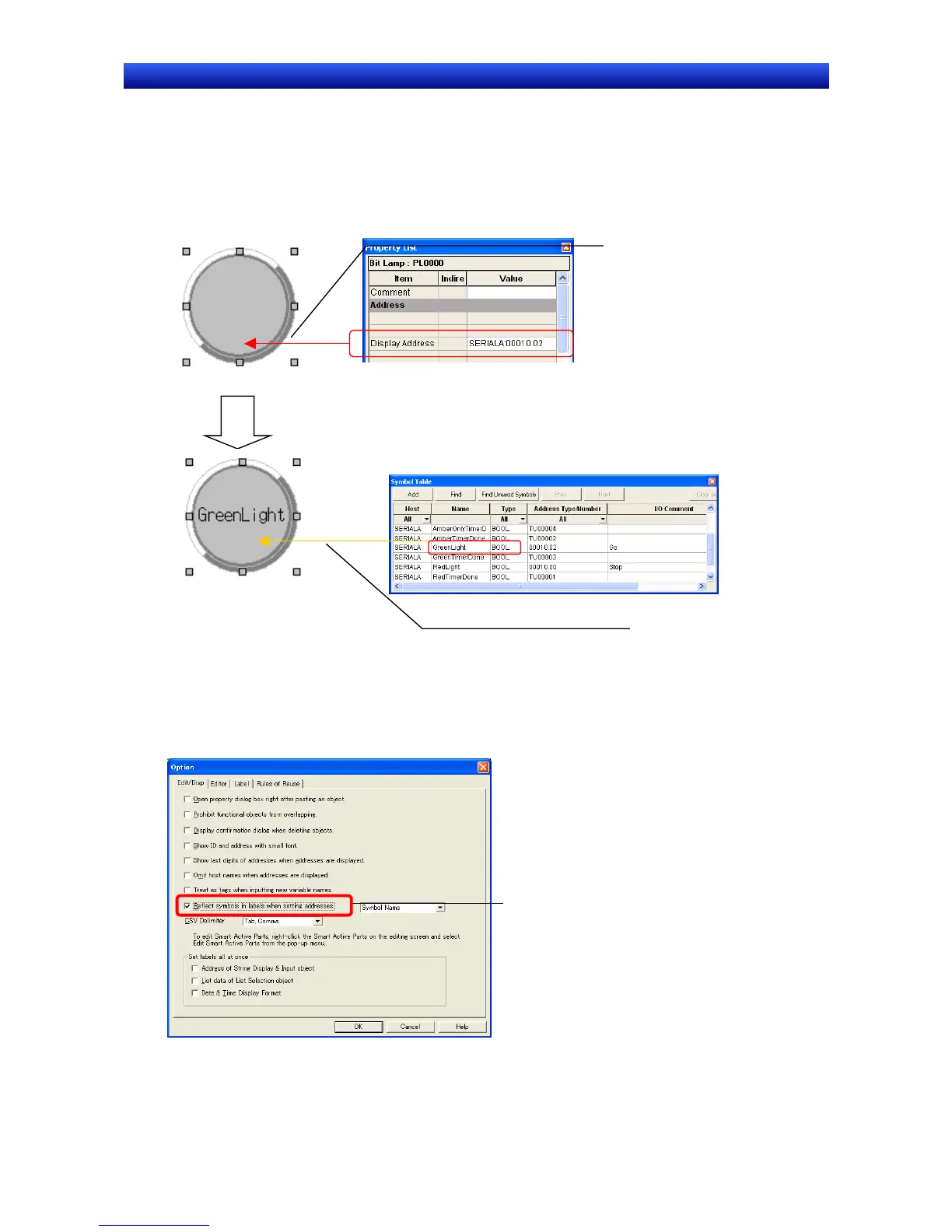

Setting the communications
address
The name of the
communications address that
was set is automatically set in
the label.
Procedure:
1. Select Tools – Option to display the Option Dialog Box. Open the Edit/Disp Tab.
2. Select the Reflect to label when an address is set Option and select either the Symbol Name or I/O
comment as the label text.
Check the box as shown, and
select either
Symbol Name or I/O
Comment
for the label character
string.
3. Create the functional objects.
4. Set the communications address for each functional object from one of the following locations.
To Next Page
