Section 2 NS Series Functions 2-8 Common Functional Object Functions
2-114
NS Series Programming Manual
Position

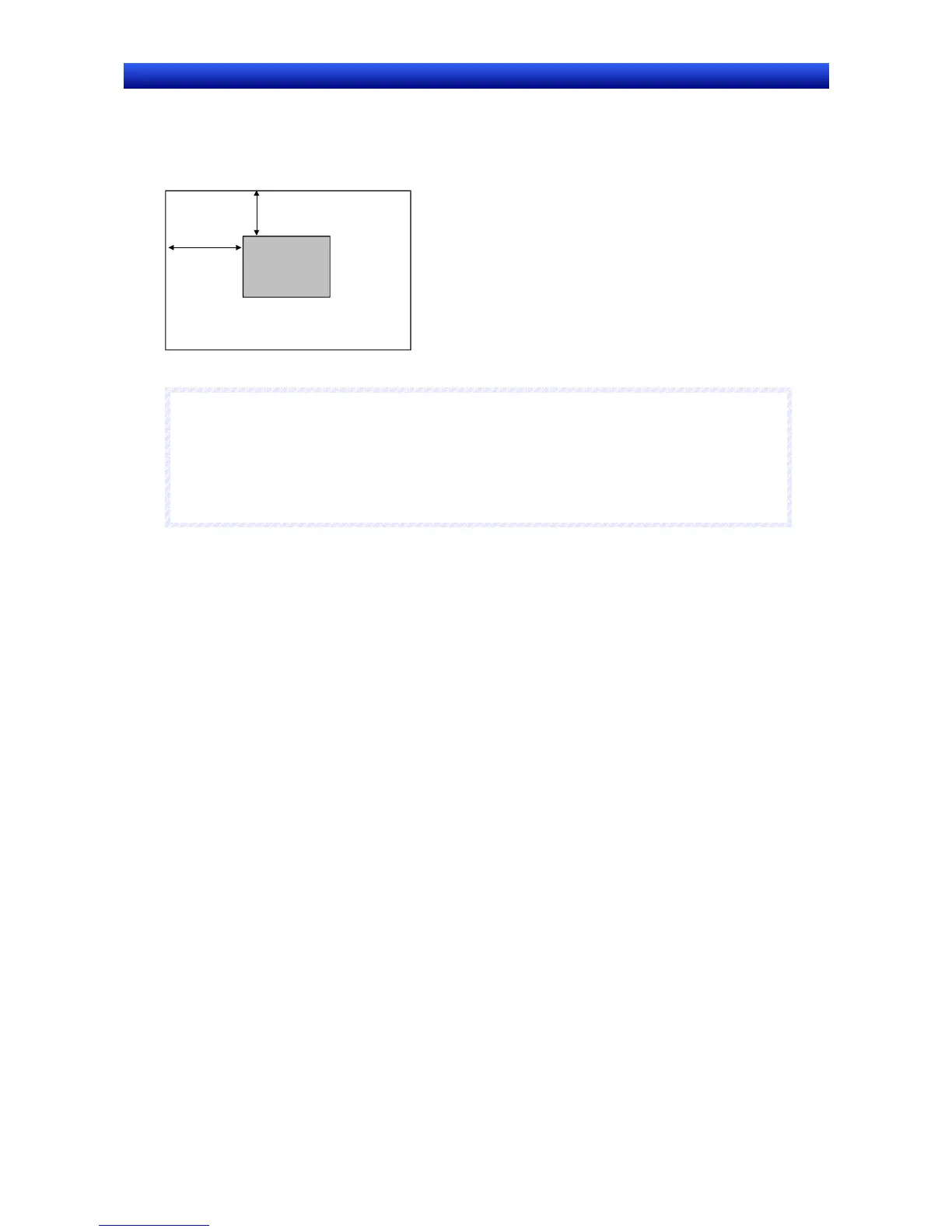

Specify the horizontal position (X coordinate) and vertical position (Y coordinate) of the functional ob-
ject from the top left of the screen or frame. The horizontal position can be set between 0 and 2,559
and the vertical position between 0 and 1,919. Set the horizontal and vertical positions in dot units.
Horizontal
position
Vertical position
Screen or frame
Functional object
R
R
R
e
e
e
f
f
f
e
e
e
r
r
r
e
e
e
n
n
n
c
c
c
e
e
e
♦
Set the position so that the object is not outside the screen or frame area.
An error check can be performed to check for functional objects outside the screen or frame area.
Refer to
Validation in the CX-Designer Online Help for details on error checks.
♦
The Video Display must be positioned so that it is entirely on the screen. It cannot extend outside of
the screen. Refer to
2-13-5 Video Display for details.
