Section 2 NS Series Functions 2-9 Buttons
2-123
NS Series Programming Manual

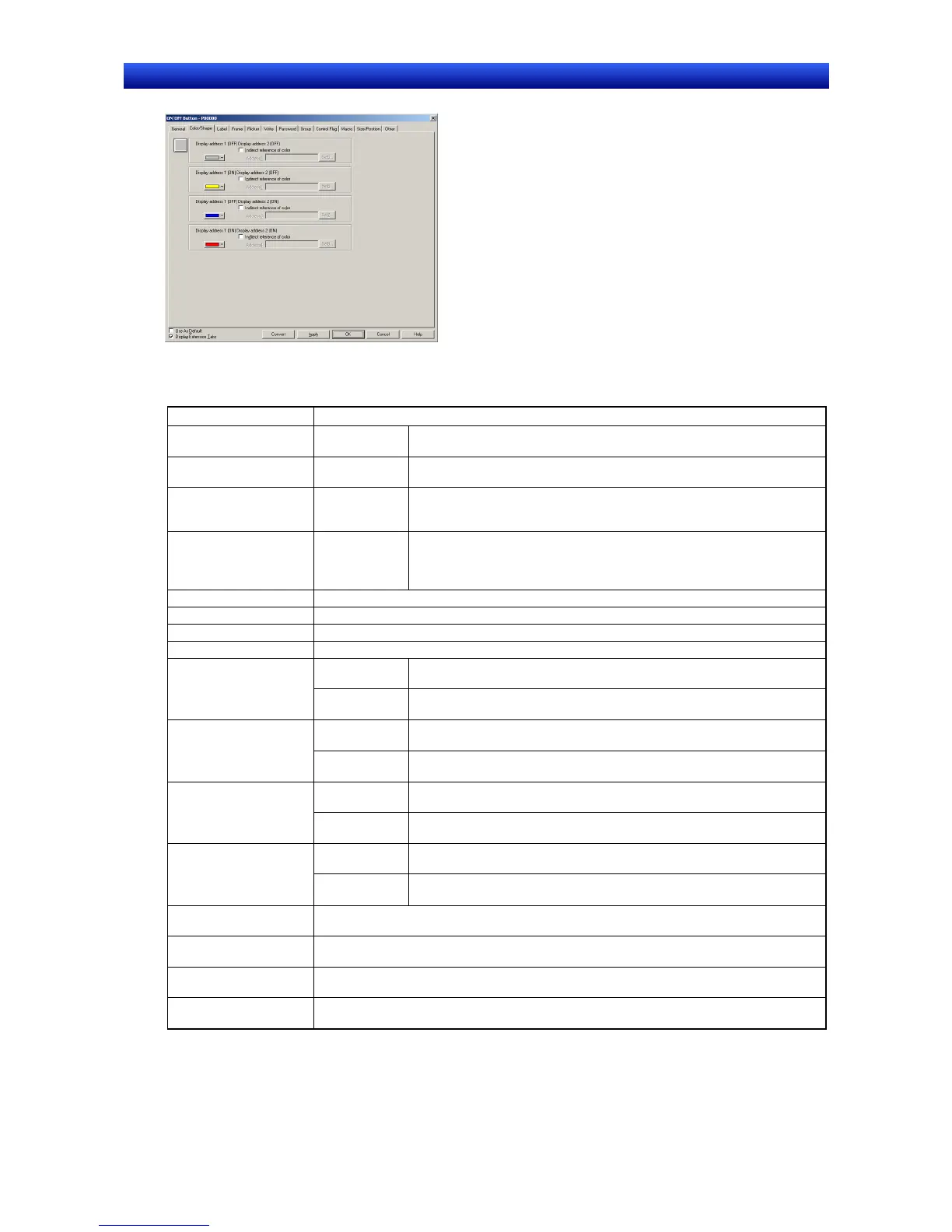

Color
Colors 1 to 4
The display methods for colors 1 to 4 depends on the ON/OFF Button type.
Button type Display
Rectangle (Type 1) Whole button
color
Write address on 0: OFF color
Write address on 1: ON color
Rectangle (Type 2-1) Whole button
color
Display address 1 on 0: OFF color
Display address 1 on 1: ON color
Rectangle (Type 2-2) Whole button
color
Display address 1 on 0: OFF color
Display address 1 on 1: ON color
When button is pressed: ON color
Rectangle (Type 3) Whole button
color
Display address 1/display address 2 on 0/0: 1 (OFF) 2 (OFF)
Display address 1/display address 2 on 1/0: 1(ON) 2 (OFF)
Display address 1/display address 2 on 0/1: 1(OFF) 2 (ON)
Display address 1/display address 2 on 1/1: 1(ON) 2 (ON)
Circle (Type 1) Same as for Rectangle (Type 1).
Circle (Type 2-1) Same as for Rectangle (Type 2-1).
Circle (Type 2-2) Same as for Rectangle (Type 2-2).
Circle (Type 3) Same as for Rectangle (Type 3).
Top color Write address on 0: OFF color
Write address on 1: ON color
Rectangle 2 Light
(Type 1)
Bottom color Display address 1 on 0: OFF color
Display address 1 on 1: ON color
Top color Display address 1 on 0: OFF color
Display address 1 on 1: ON color
Rectangle 2 Light
(Type 2)
Bottom color Display address 2 on 0: OFF color
Display address 2 on 1: ON color
Inside circle
color
Display address 1 on 0: OFF color
Display address 1 on 1: ON color
Rectangle 2 Light
(Type 3)
Whole button
color
Write address on 0: OFF color
Write address on 1: ON color
Inside circle
color
Display address 1 on 0: OFF color
Display address 1 on 1: ON color
Rectangle 2 Light
(Type 4)
Whole button
color
Display address 2 on 0: OFF color
Display address 2 on 1: ON color
Select shape (Type 1) Cannot be set here.
The setting screen will be displayed for specifying the shape.
Select shape (Type 2-1) Cannot be set here.
The setting screen will be displayed for specifying the shape.
Select shape (Type 2-2) Cannot be set here.
The setting screen will be displayed for specifying the shape.
Select shape (Type 3) Cannot be set here.
The setting screen will be displayed for specifying the shape.
Refer to Setting Colors in 2-8 Common Functional Object Functions for information on how to set col-
ors.
