Section 2 NS Series Functions 2-9 Buttons
2-132
NS Series Programming Manual
Color

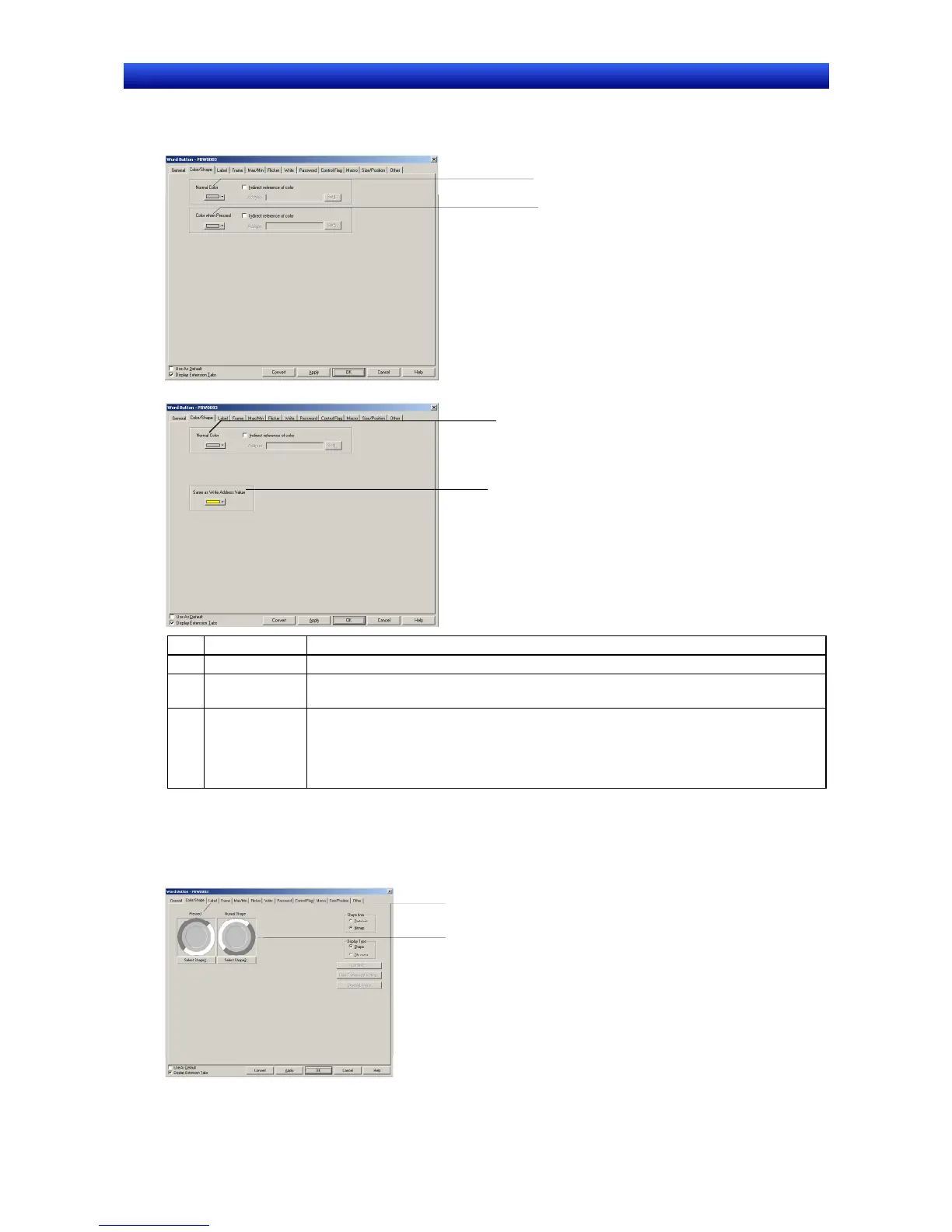

The following Dialog Box is displayed when Increment/Decrement or Display Pop-up Menu is selected
as the Action Type.
1
2
The following Dialog Box is displayed when Set Value is selected as the Action Type.
1
3
No. Setting Details
1 Normal Color Sets the normal display color for the Set Button.
2
Color when
Pressed
Sets the color when the button is pressed. Set the pressed color when Incre-
ment/decrement or Pop-up menu display is selected as the button action type.
3
Same as Write
Address Value
Sets the color that will be displayed when the contents of the write address match the
set value for Set Value button action types. When the values do not match, the button
color will be that set as the normal color.
Multiple word buttons can be used as exclusive buttons by specifying the same word
address and changing each of the values set to Set Value.
Refer to Setting Colors in 2-8 Common Functional Object Functions for information on how to set col-
ors.
Select Shape
The following Dialog Box is displayed when Increment/Decrement or Display Pop-up Menu is selected
as the Action Type.
2
1
