Section 2 NS Series Functions 2-9 Buttons
2-145
NS Series Programming Manual

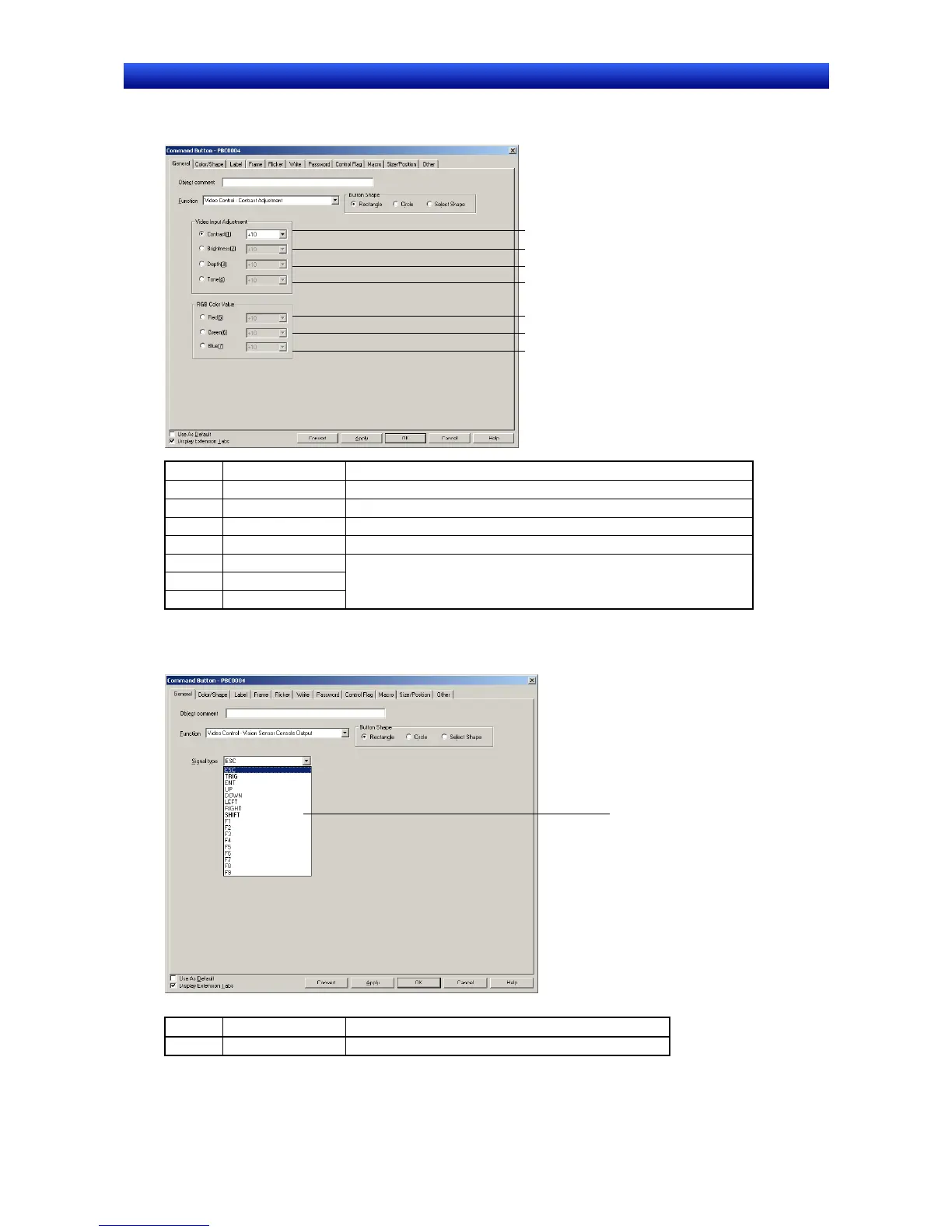

Video Control – Contrast Adjustment
Adjusts the contrast, brightness, depth, and tone of the image.
1
2
3
4
5
6
7
No. Item Details
1 Contrast Setting items: ⋅10, ⋅1, +1, +10 (Adjustable in 64 steps.)
2 Brightness Setting items: ⋅10, ⋅1, +1, +10 (Adjustable in 128 steps.)
3 Depth Setting items: ⋅10, ⋅1, +1, +10 (Adjustable in 32 steps.)
4 Tone Setting items: ⋅10, ⋅1, +1, +10 (Adjustable in 256 steps.)
5 Red
6 Green
7 Blue
These items can be set only when the NS-CA002 RGB/Video Input Unit is
mounted. Refer to the NS-series RGB/Video Input Unit User’s Manual (V086)
for details on the setting method.
Video Control – Vision Sensor Console Output
Various control signals can be sent to the OMRON Vision Sensor by pressing the button.
1
Number Item Detail
1 Signal type Set the signal type to send to the Vision Sensor.
