Section 2 NS Series Functions 2-11 Multifunction Objects
2-166
NS Series Programming Manual
ON Delay
Multifunction Objects can be set so that the touch operation is enabled when the object continues to be
pressed for at least as long as the specified delay time. The functions that were set for touch operation
will not be executed if the Multifunction Object is released before the delay time has passed.

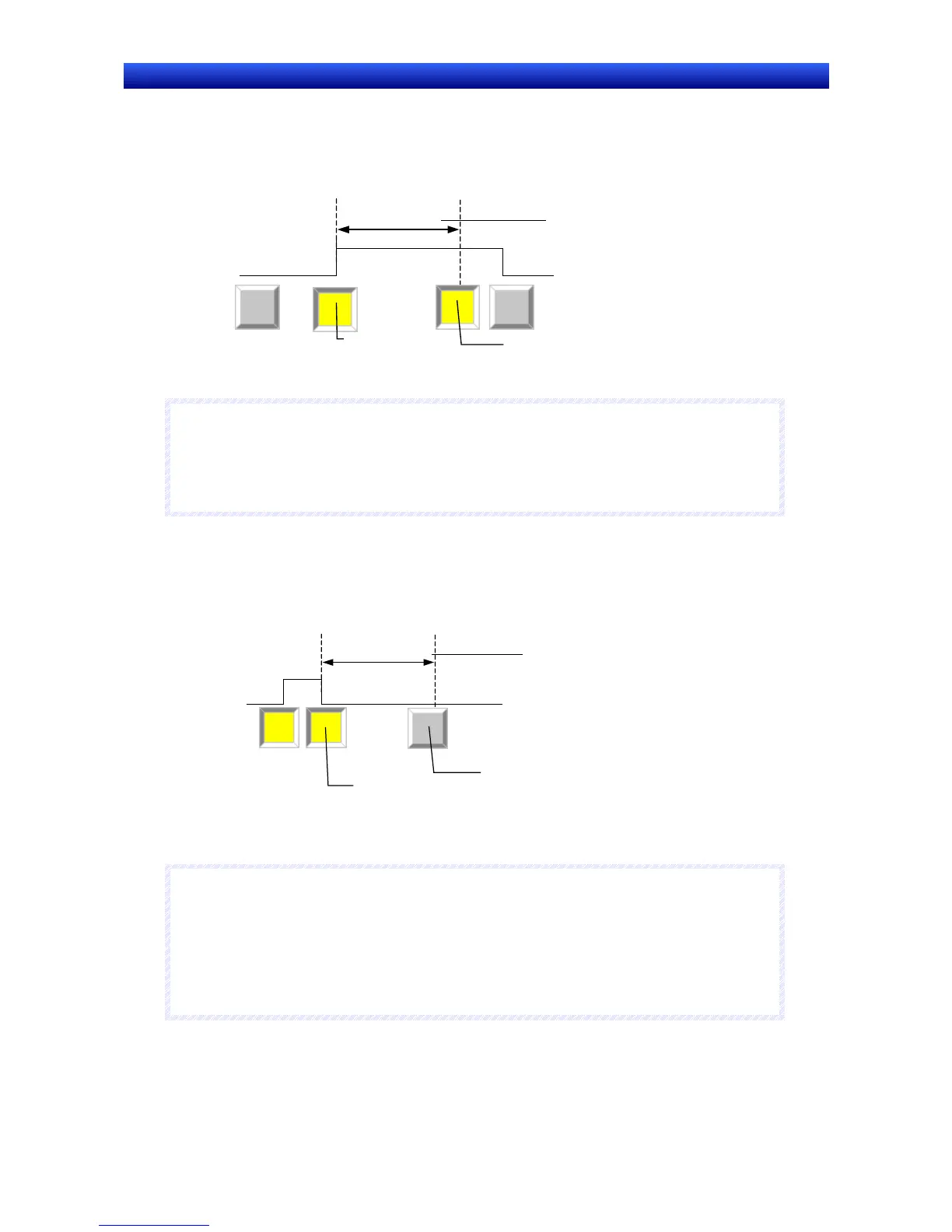

Delay time
The functions set for touch operation will
be executed when the Multifunction
Object is pressed and held until the
delay time passes.
The functions are
not executed at
this point.
Functions are executed when the dela
time has passed.
Touch ON
Touch OFF
N
N
N
o
o
o
t
t
t
e
e
e
♦
If both the ON delay and double pressing are set, the ON delay will function the first time the Mul-
tifunction Object is pressed, and will not function the second time it is pressed.
♦
If a Control Flag disables input before the delay time expires, the functions for which the ON delay
was set will not be executed.
OFF Delay
The functions set for execution at Touch OFF will be executed when the specified delay time has
passed after the Multifunction Object is released.
Delay time
The functions that are set for Touch OFF will be
executed when the delay time has passed after the
button is released.
The Touch OFF
functions will not be
executed at this point
because the status is
still ON.
When the delay time has passed the status
changes to OFF and the functions set to Touch
OFF will be executed.
Touch ON
Touch OFF
N
N
N
o
o
o
t
t
t
e
e
e
♦
Functions set for execution When pressing or at Touch ON timing are executed at when the Mul-
tifunction Object is pressed, and are thus not affected by the OFF delay function.
♦
If both the OFF delay and double pressing are set, the OFF delay will not function the first time the
Multifunction Object is released, and will function the second time it is released.
♦
If a Control Flag disables input before the delay time expires, the functions for which the OFF de-
lay was set will not be executed.
