Section 2 NS Series Functions 2-13 Display
2-271
NS Series Programming Manual

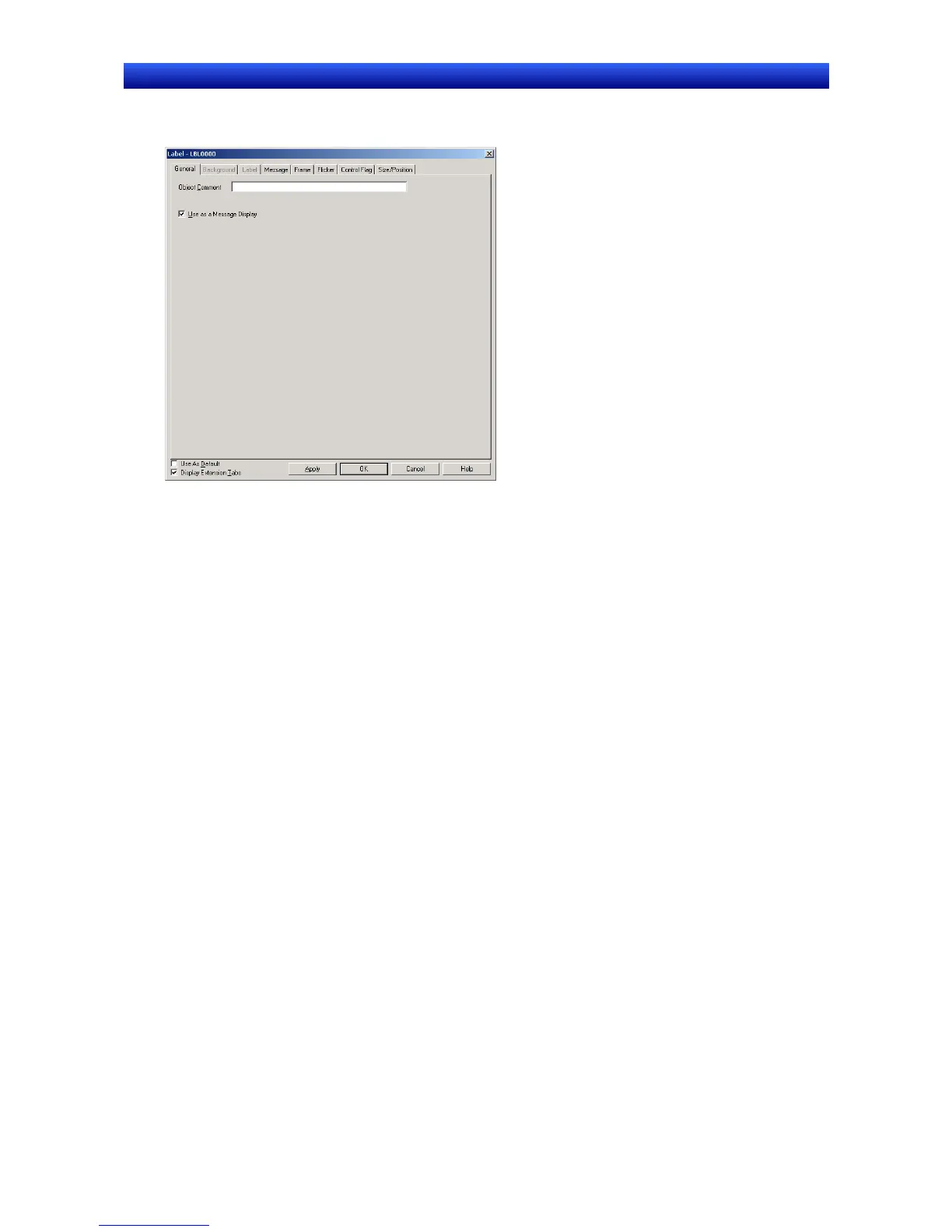

Settings for Functional Object Properties
This section describes the settings in the Functional Object Properties Dialog Box for text objects.
General: Sets object comments.
Background: Sets the background color for the text object.
Label: Sets the label display.
Message:
Sets the label display data and background color for when the message display function
is used.
Frame: Sets the object frame display.
Flicker: Sets the flicker display. (See note.)
Control Flag: Sets display/no display of the object. (See note.)
Size/Position: Sets the object size and position. (See note.)
Note: These tabs are displayed when the Display Extension Tabs Option is selected.
To Next Page
