Section 2 NS Series Functions 2-15 Data Logs
2-328
NS Series Programming Manual
No. Setting Details
3 Delete
To delete a set data logging group, select the display line for that group and click the
Delete Button.
A confirmation message will be displayed. Click the
Yes Button to delete the selected
group.
4 Icon
Click the
Icon Button to display the Details Dialog Box. BMP/JPEG files can be speci-
fied to the icon for the data log object.
Logging Points
Total
The total number of logging points is displayed. Logging is possible for up to160,000
points. (NS5: 120,000 points). Refer to
Calculating Logging Points on page 2-334 for
details.
“Always” Log
Address Total
Displays the total number of addresses that are always logged. Up to 128 addresses
can be constantly logged.
5
Always Log-
ging Points
The number of points for constant logging is displayed. Constant logging is possible for
up to 50,000 points. Refer to
Calculating Logging Points on page 2-334 for details.
6
Advanced
Setting
Click the
Advanced Setting Button to set display settings for data log graphs. For
details, refer to
Display Settings for Data Log Graphs.
N
N
N
o
o
o
t
t
t
e
e
e
The available number of “Always logging points” differs depending on the sampling cycle for the
data log group and the log address storage type.

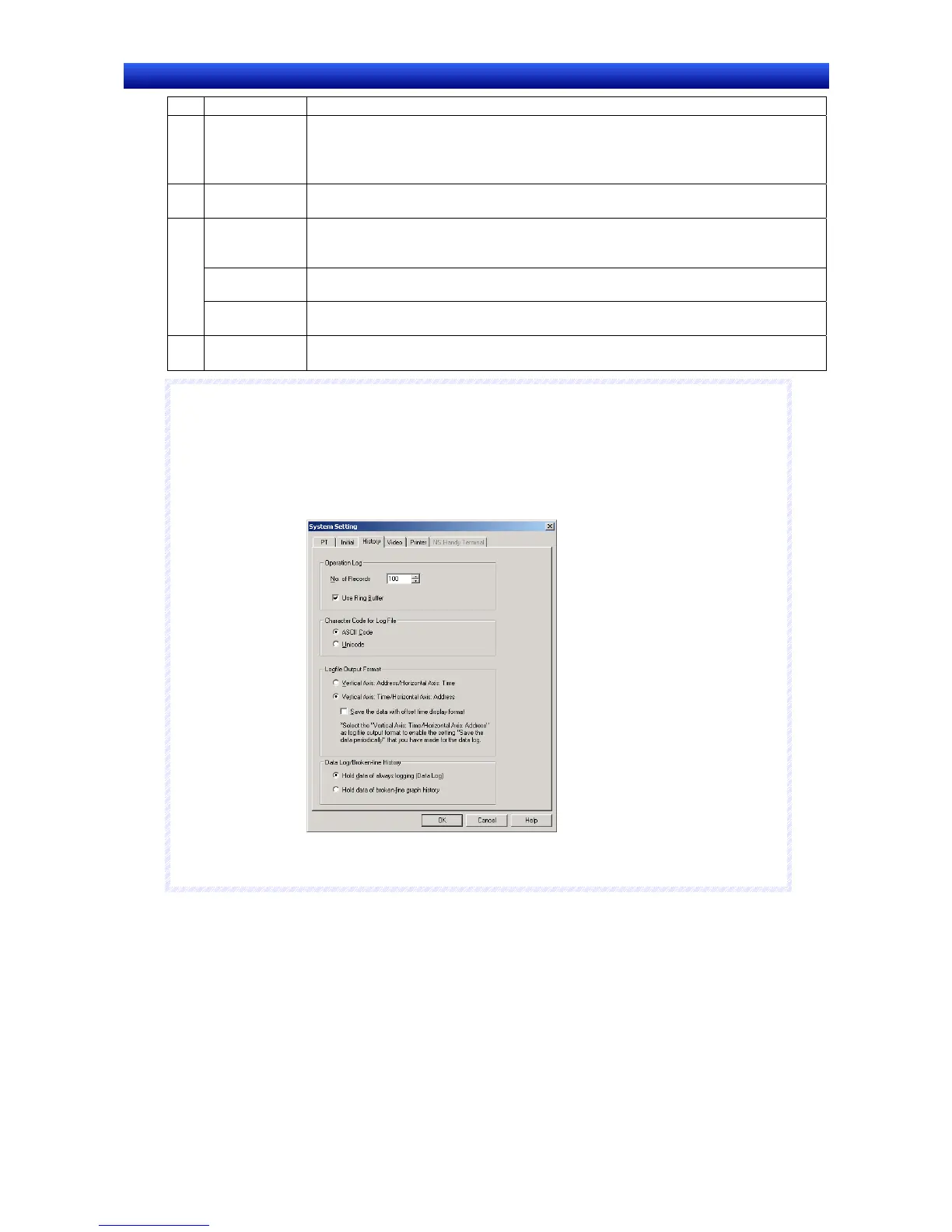

The following option must be set in advance before using the “always logging” function.
1. Select
PT – System Setting and open the History Tab Page.
2. Select the
Hold data of always logging (Data Log) Option and click the OK Button.
When the “always logging” function is being used, the “broken-line graph history” function cannot be
used.
