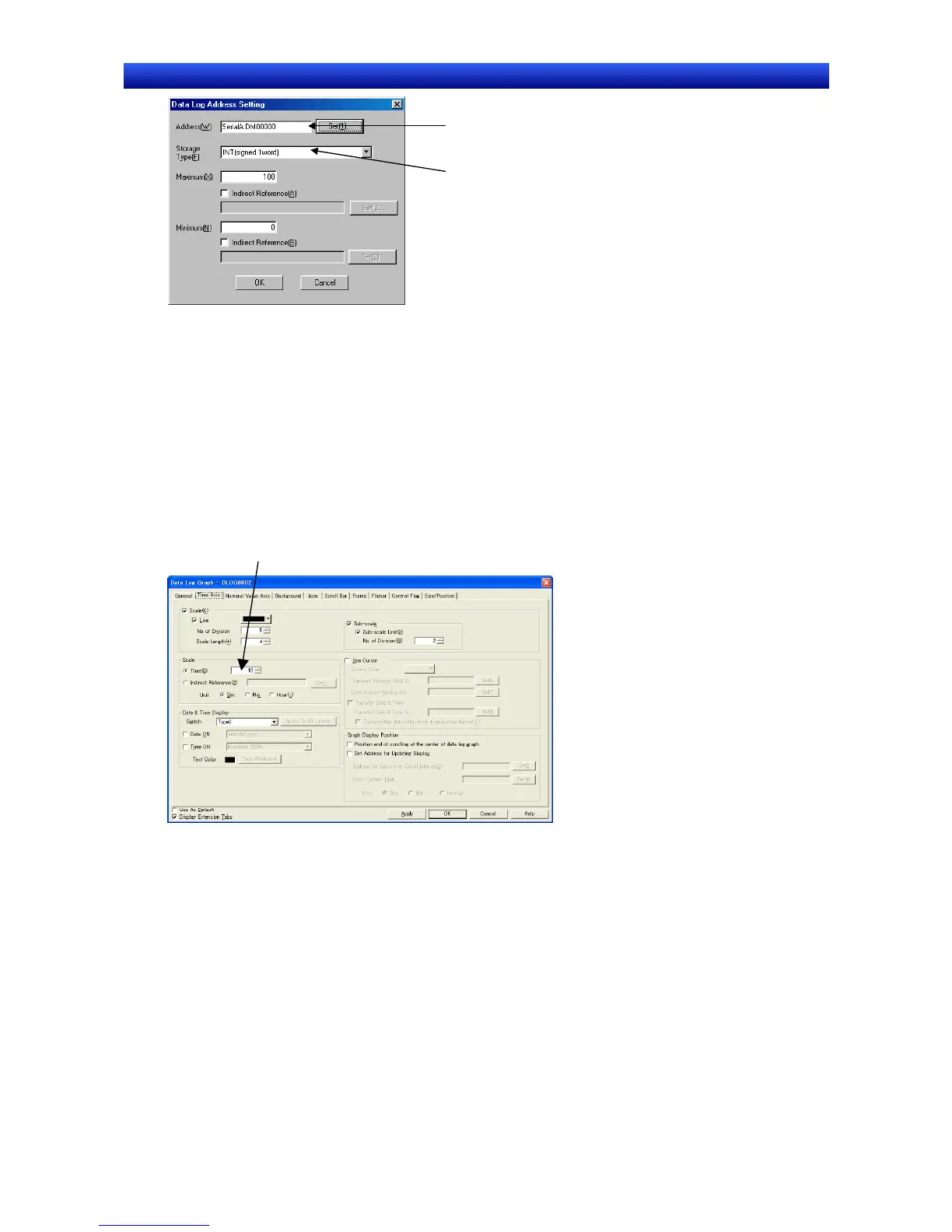

Set the logging address.
Select the storage type at the
specified address.
12. Click the OK Button to return to the Data Log Group Setting Dialog Box.
13. Repeat steps 10 to 12 to register 5 addresses.
14. Click the OK Button in the Data Log Group Setting Dialog Box.
15. Click the OK Button in the Data Log Setting Dialog Box.
Settings for Functional Object Properties
1. Place a data log object on the screen if there isn’t one there already.
2. Double-click the data log object to display the Functional Object Properties Dialog Box.
3. Display the Time Axis Tab Page and set the scale for the time axis. In this example, “10” minutes’
worth of log data is set for display.
3. Set the amount of the logging period to be displayed at one time.
4. Display the Icon Tab Page and de-select Log clear and Save to file under Icon Display. These icons
are not required because the log is set to be automatically saved.
5. Select Show the read data only under Options for showing the read file in the Options section.
