Section 2 NS Series Functions 2-15 Data Logs
2-353
NS Series Programming Manual

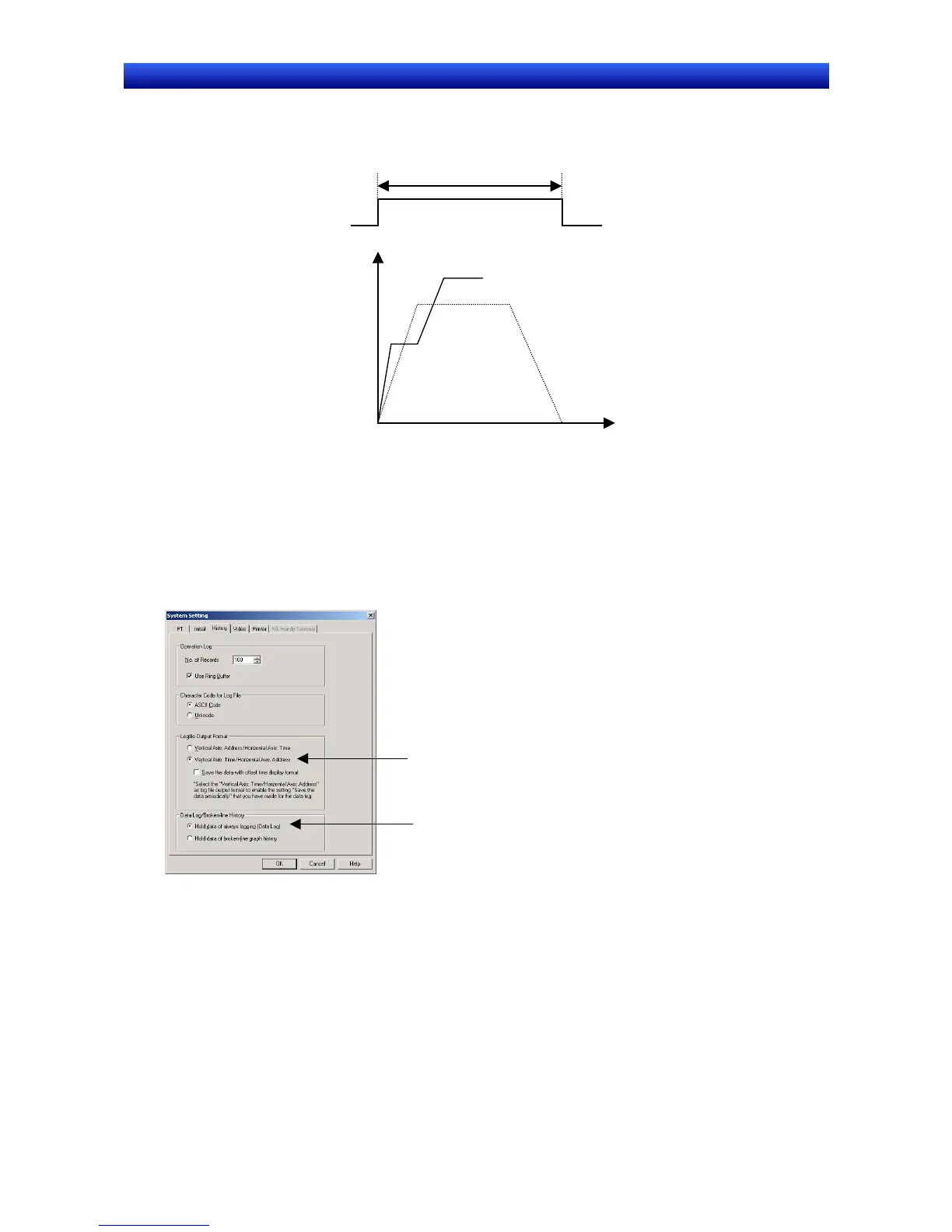

Example 1: Allocation of Specified Address (PT Memory: $B100) to an Icon and Manual
Control of Log Start/Stop
$B100
ON
Standard data
Measured data
Time
Numeral value
Display direction: Right
100 s
OFF
Setting Data Log File Output Format
The method for setting the data log file output format is described below.
1. Select PT – System setting to display the System Settings Dialog Box.
2. Select the History Tab Page.
3. Set Logfile Output Format to “Vertical Axis: Time/ Horizontal Axis: Address.”
4. Set the Data Log/Broken-line History to “Hold data of always logging (Data Log).”
3 Set logfile output format to
“Vertical Axis: Time/ Horizontal
Axis: Address”.
4 Set Data Log/Broken-line
History to “Hold data of always
logging (Data Log)”.
4. Click the OK Button.
