Omron NS10-TV Series

Section 2 NS Series Functions 2-20 Special Functions
2-481
NS Series Programming Manual

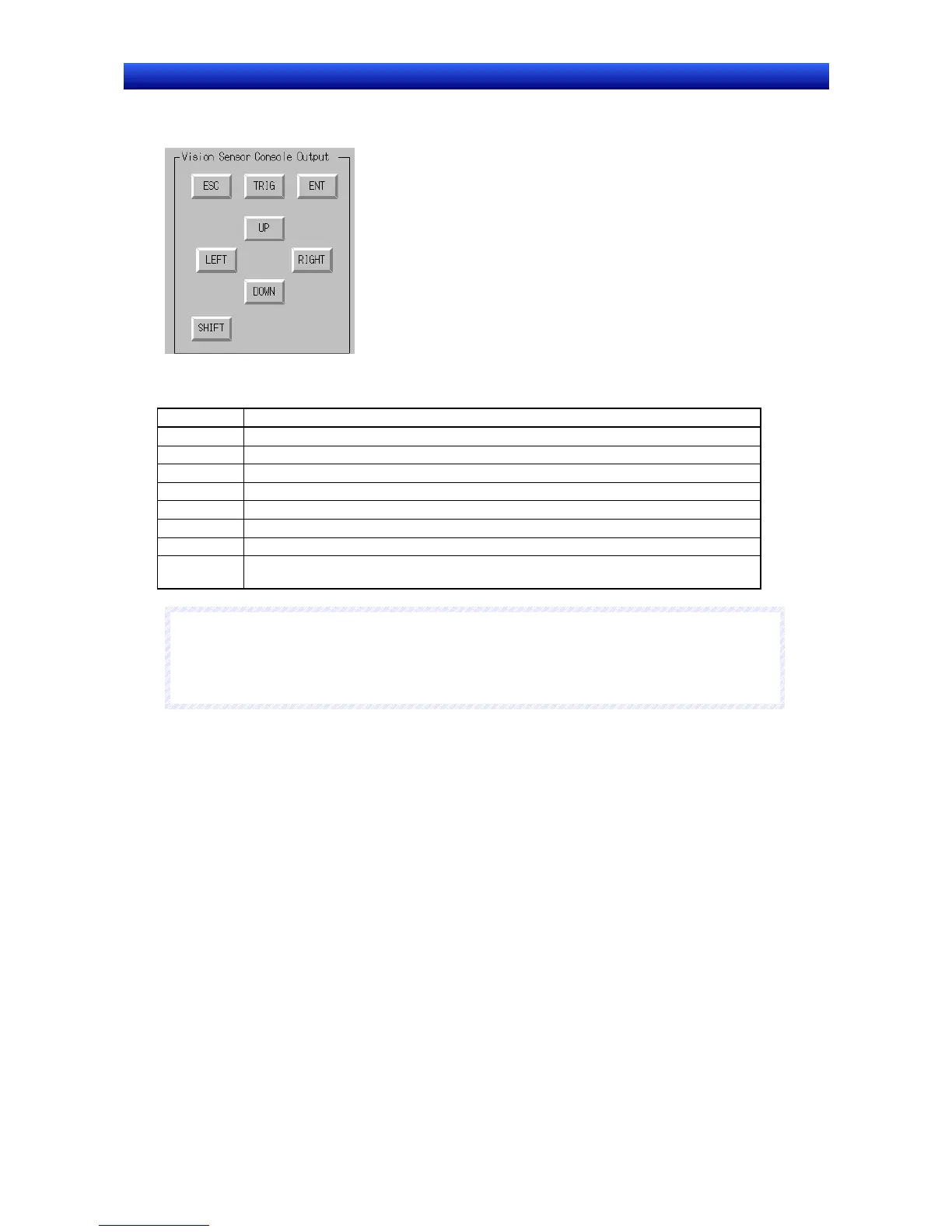

Vision Sensor Control Outputs
Various control signals can be sent to an OMRON Vision Sensor by pressing these buttons.
The signals and their actions are as follows:
Name Description
ESC Previous screen
TRIG Execute measurement
ENT Enter
UP Move the cursor up or increase the setting by one.
DOWN Move the cursor down or decrease the setting by one.
LEFT Move the cursor left.
RIGHT Move the cursor right.
SHIFT Add the SHIFT signal.
The SHIFT signal does not function by itself. It changes the function of another signal.
R
R
R
e
e
e
f
f
f
e
e
e
r
r
r
e
e
e
n
n
n
c
c
c
e
e
e
♦
To add the SHIFT signal, press another signal button while holding down the SHIFT Button.
♦
The image can be adjusted by using command buttons or Multifunction Objects as well. Refer to
2-9-3
Command Buttons or 2-11 Multifunction Objects for details.
