Omron NS10-TV Series

Section 2 NS Series Functions 2-22 Transferring Device Data
2-505
NS Series Programming Manual

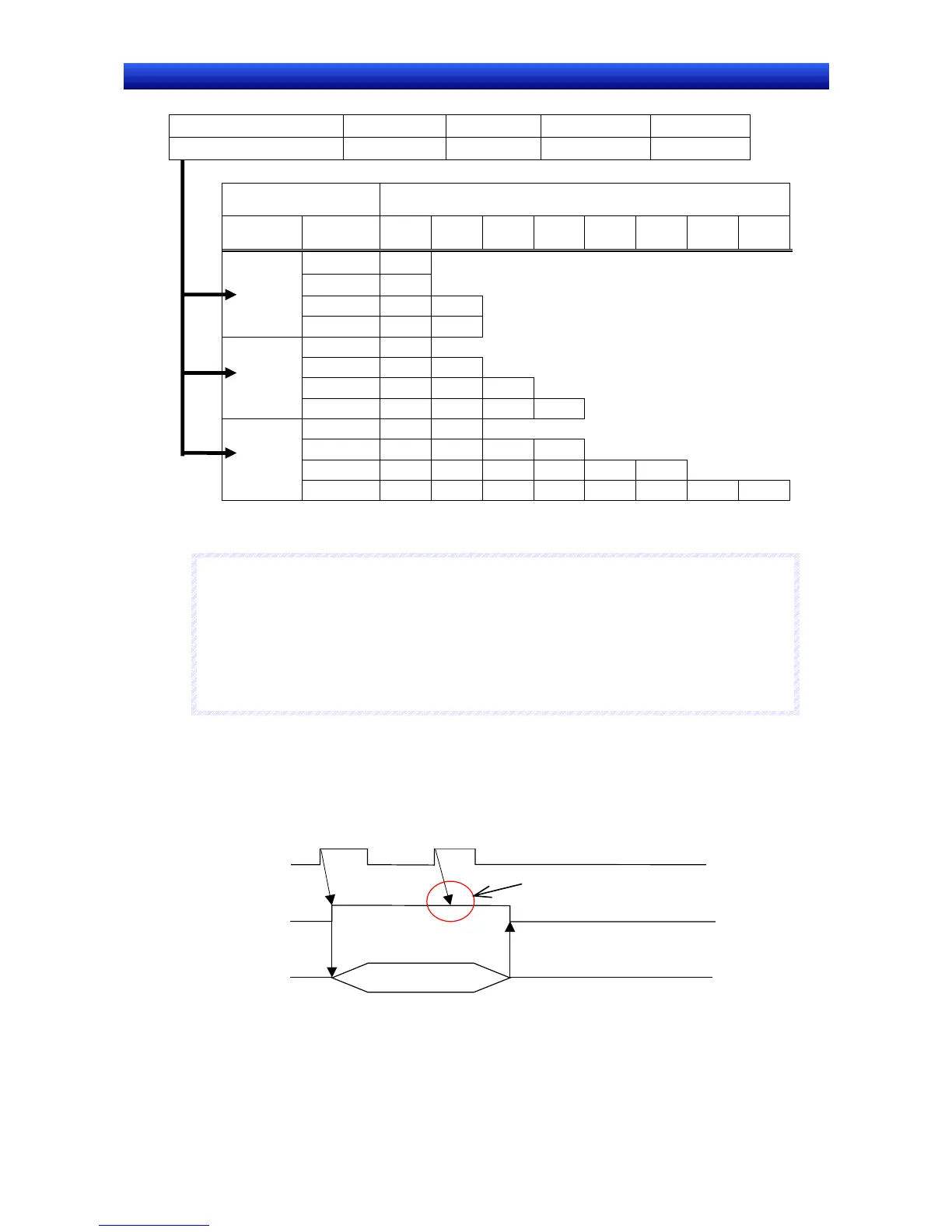

• Transfer Destination Access Size of 32 Bits (without Endian Conversion)
Offset +0 +1 +2 +3
Transfer source (32 bits) 01020304 05060708 090A0B0C 0D0E0F10
Transfer destination
(16 bits)
Word offset
Data length
Number of
elements
+0 +1 +2 +3 +4 +5 +6 +7
BYTE 1 0004
2 0304
3 0304 0002
4 0304 0102
WORD 1 0304
2 0304 0102
3 0304 0102 0708
4 0304 0102 0708 0506
DWORD 1 0304 0102
2 0304 0102 0708 0506
3 0304 0102 0708 0506 0B0C 090A
4 0304 0102 0708 0506 0B0C 090A 0F10 0D0E
N
N
N
o
o
o
t
t
t
e
e
e
The data will be converted as shown below if the Convert Endians Check Box is selected.
• Data Length: WORD (16 Bits)
The endianness will be converted every 8 bits.
Example: 12 34
→ 34 12
• Data Length: DWORD (32 Bits)
The endianness will be converted every 16 bits.
Example: 00 01 0B 0A
→ 0B 0A 00 01
Timing of Device Data Transfers
Device data will be transferred when the transfer trigger condition is met and the Transfer in Progress
Flag is OFF. The data will therefore not be transferred if the device data transfer trigger for one group
occurs when device data is being transferred for another group.
OFF
OFF
ON
OFF
Device data being
transferred.
Device data transfer
trigger
Transfer in Progress
Flag
Device data transfer
processing
Ignored because the Transfer in
Progress Flag is ON.
If the rising edge or falling edge is set as the trigger condition, the trigger address will not be auto-
matically turned ON or OFF by the system after the trigger condition occurs. If a cyclic trigger is set,
however, the triggers will be sorted with the shortest cycles first and transfers will be executed in order.
An example of using cyclic triggers is provided below.
