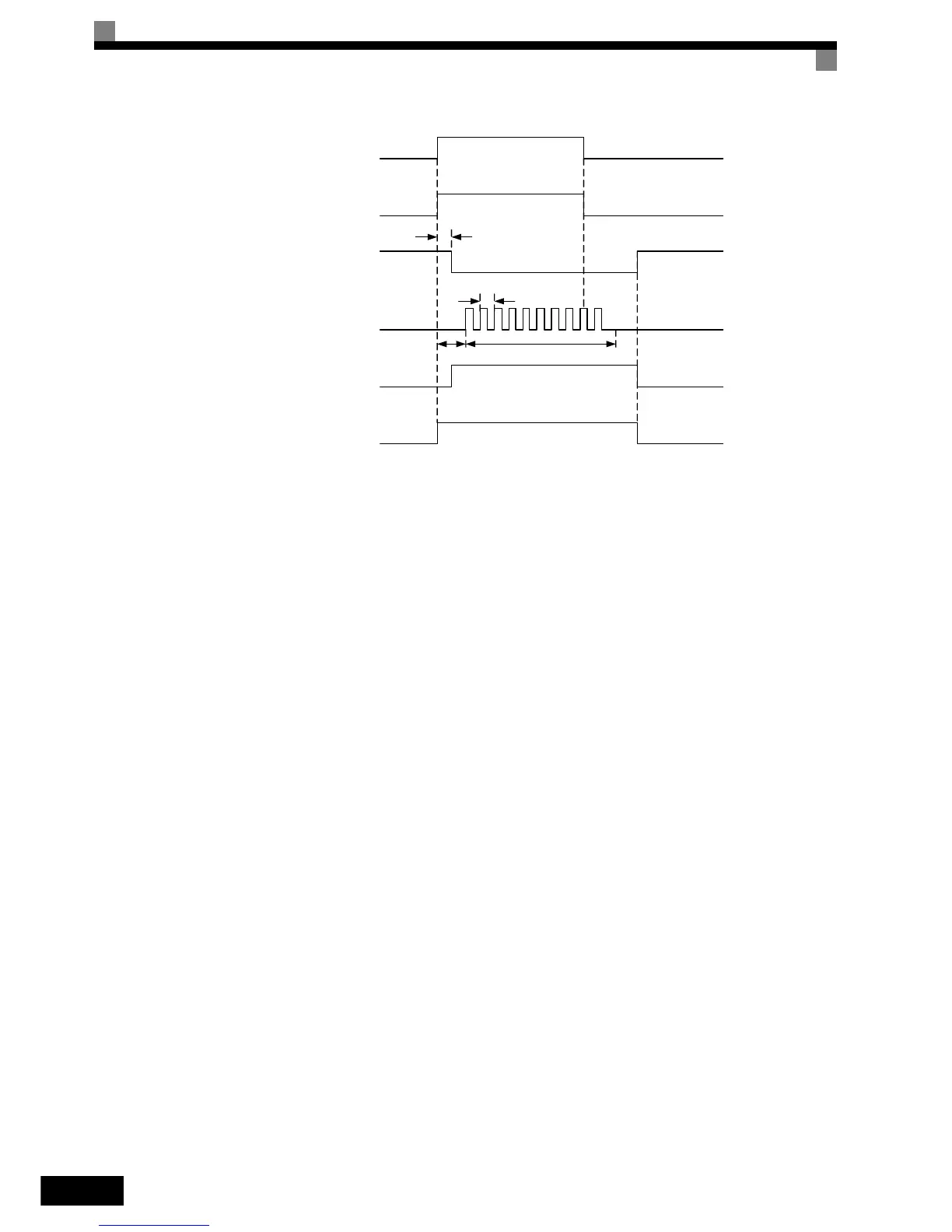

Fig 6.38 Timing Chart for Auto Restart Function
îš„ Application Precautions
The number of auto restarts counter is reset under the following conditions:
• After auto restart, normal operation has continued for 10 minutes.
• After the protection operation has been performed and an fault reset has been input.
• After the power supply is turned OFF, and then ON again.
Controller
delay
5 msec
L2-03 L5-03 (max)
Fault Occurrance
Fault Output
RUN Controller
Retry Function
Controller Base Block
Total Base Block Time
To Next Page
