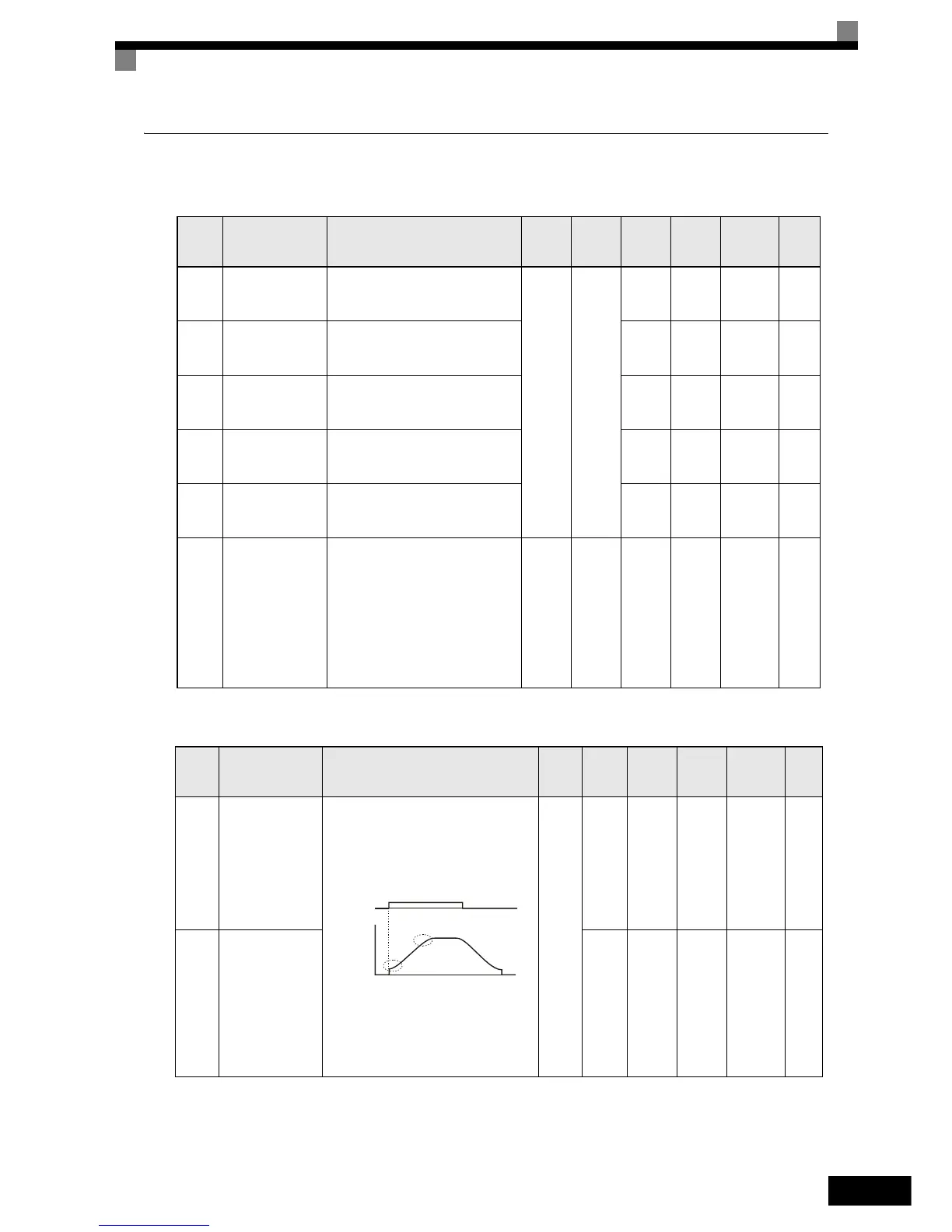

User Parameter Tables
5-15
Tuning Parameters: C
Acceleration/Deceleration: C1
S-Curve Acceleration/Deceleration: C2
Param-
eter
Number
Name Description
Setting
Range
Factory
Setting
Change
during
Opera-
tion
Access
Level
MEMO-
BUS Reg-
ister
Page
C1-01
Acceleration
time 1
Sets the acceleration time to accel-
erate from 0 Hz to the
maximum output frequency.
0.0 to
6000.0
10.0
sec.
Yes Q 200H
4-11
6-15
C1-02
Deceleration
time 1
Sets the deceleration time to decel-
erate from the maximum output
frequency to 0 Hz.
Yes Q 201H
4-11
6-15
C1-03
Acceleration
time 2
Sets the acceleration time when the
multi-function input “accel/decel
time 1” is set to ON.
Yes A 202H 6-15
C1-04
Deceleration
time 2
Sets the deceleration time when the
multi-function input “accel/decel
time 1” is set to ON.
Yes A 203H 6-15
C1-09
Emergency stop
time
Sets the deceleration time when the
multi-function input “Emergency
(fast) Stop” is set to ON.
No A 208H 6-15
C1-11
Accel/decel time
switching fre-
quency
Sets the frequency for automatic
acceleration/deceleration switch-
ing.
If the output frequency is below the
set frequency: Accel/decel time 2
If the output frequency is above the
set frequency: Accel/decel time 1
The multi-function input “accel/
decel time 1” has priority.
0.0 to
200.0
0.0 Hz No A 20AH 6-15
Param-
eter
Num-
ber
Name Description
Setting
Range
Factory
Setting
Change
during
Opera-
tion
Access
Level
MEMO-
BUS
Register
Page
C2-01
S-curve charac-
teristic time at
acceleration start
When the S-curve characteristic time is
set, the accel time will increase by only
half of the S-curve characteristic times
at start and
end.
The S-Curve characteristic times at
start and end of deceleration are fixed
to 0.2 sec. and can not be changed.
0.00
to
2.50
0.20
sec.
No A 20BH 6-16
C2-02
S-curve charac-
teristic time at
acceleration end
0.20
sec.
No A 20CH 6-16
Run command
Output frequency
Time
ON
OFF
C2-02
C2-01
T
accel
C2-01
2
---------------
C1-01
C2-02
2
---------------
++=
