Removing/Attaching the Digital Operator and Front Cover
1-19
îš„Removing the Front Cover
Press the left and right sides of the front cover in the directions of arrows 1 and lift the bottom of the cover in
the direction of arrow 2 to remove the front cover as shown in the following illustration.

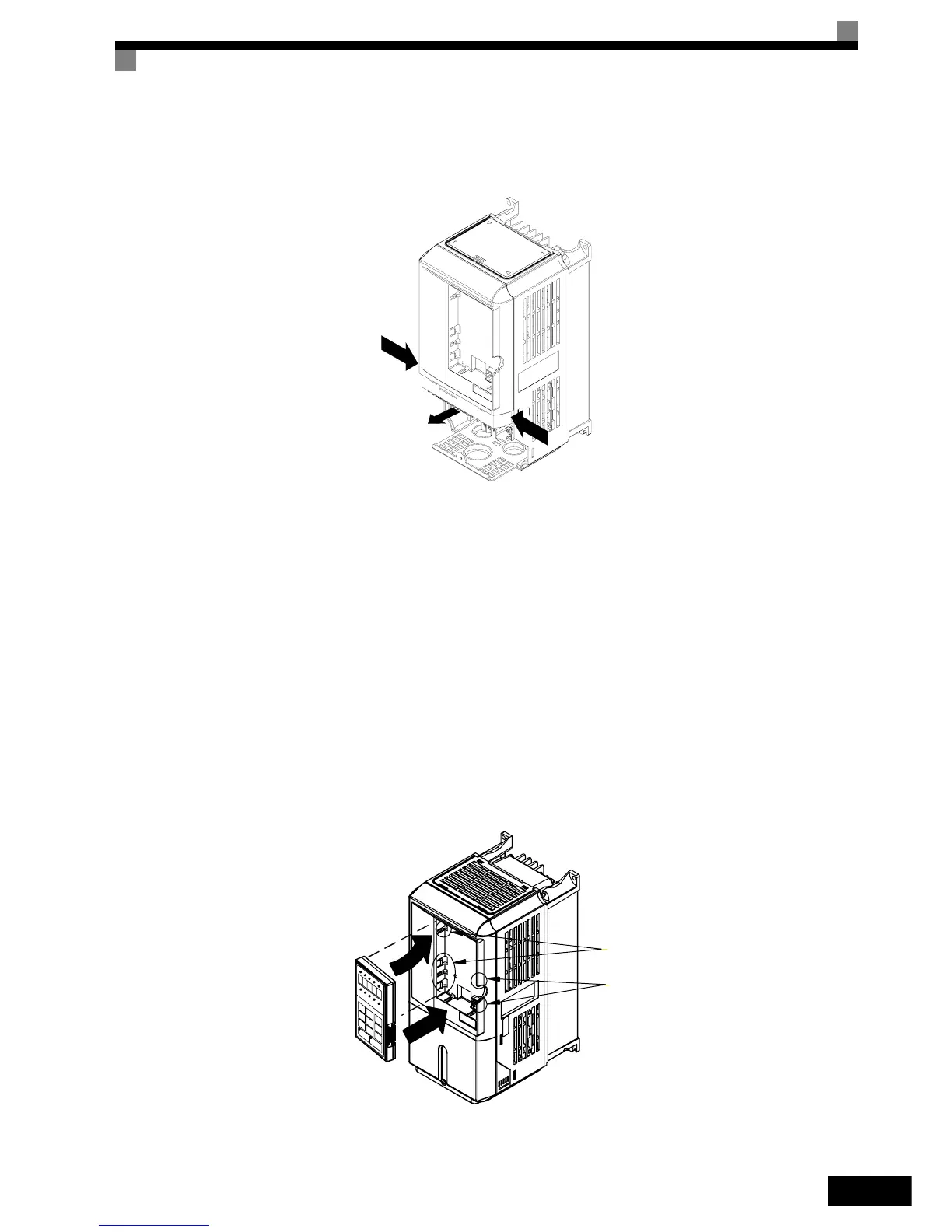

Fig 1.17 Removing the Front Cover (Model CIMR-E7Z45P5 Shown Above)
îš„Mounting the Front Cover
After wiring the terminals, mount the front cover to the Inverter by performing the steps to remove the front
cover in reverse order.
1. Do not mount the front cover with the Digital Operator attached to the front cover; otherwise, Digital
Operator may malfunction due to imperfect contact.
1. Insert the tab of the upper part of the front cover into the groove of the Inverter and press the lower part of
the front cover onto the Inverter until the front cover snaps shut.
îš„Mounting the Digital Operator
After attaching the terminal cover, mount the Digital Operator onto the Inverter using the following proce-
dure.
1. Hook the Digital Operator at A (two locations) on the front cover in the direction of arrow 1 as shown in
the following illustration.
1. Press the Digital Operator in the direction of arrow 2 until it snaps in place at B (two locations).
Fig 1.18 Mounting the Digital Operator
1
2
A
B
To Next Page
