Omron Varispeed E7

2-6

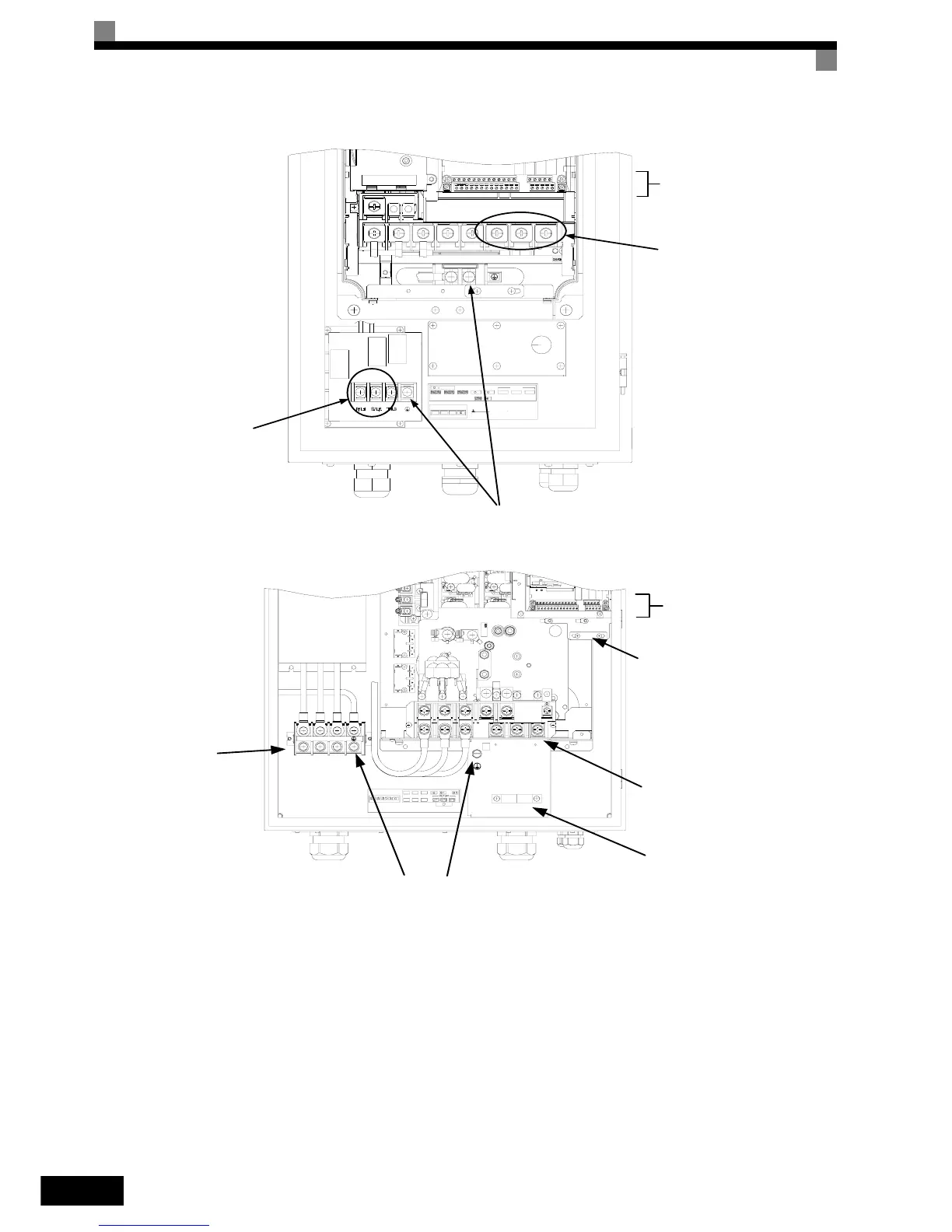

Fig 2.5 Terminal Arrangement (IP54 Inverter of 18.5kW)
Fig 2.6 Terminal Arrangement (IP54 Inverter of 37kW)
M5:2.5N.m
Refer to manual for connections.
R/L1 S/L2 T/L3
Use 75°C Cu wires or equ ivalent.
NPJU30012-1- 1
M6:4.0-5.0N.m
Terminal tightening torque;
CAUTION
MOTOR
W/T3
NOT USED-
V/T2U/T1+2+1
Output Terminals
Control Terminals
Ground Terminals
Input Terminals
R/L1 S/L2 S/L3
Output Terminals
Ground Terminals
Input Terminals
Shielding Clamp
for Control Cables
Control Terminals
Shielding Clamp
for Motor Cables
