Wiring Main Circuit Terminals
2-19

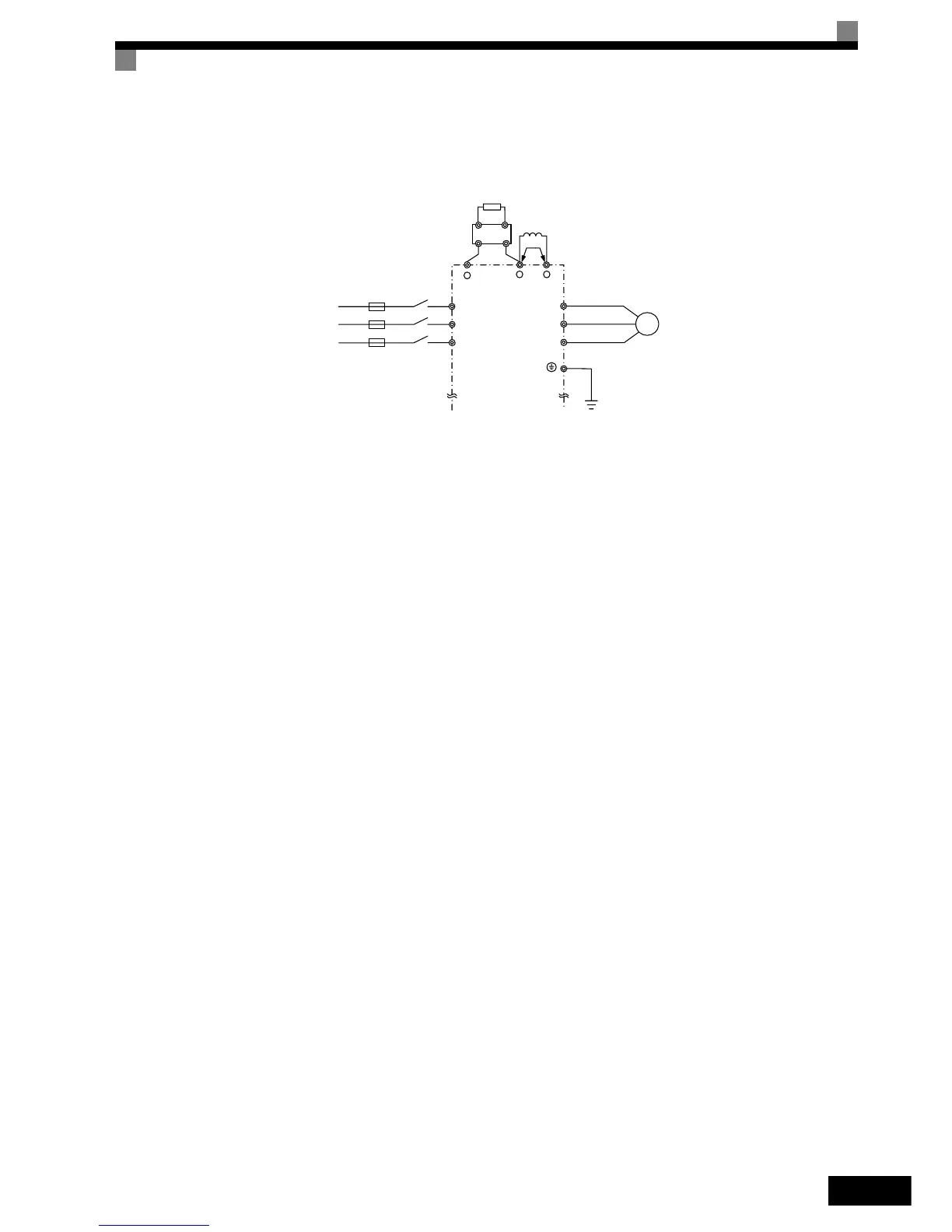

Fig 2.8 Main Circuit Terminal Connections for IP54 Inverters
îš„CIMR-E7Z47P72 to 4055
Be sure to remove the short-circuit bar before connecting the DC reac-
tor.
+
1
+
2
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
M
3 Phase 400VAC
DC reactor
(optional)
CDBR Braking
Unit (optional)
Braking
Resistor (optional)
-
