Wiring Control Circuit Terminals
2-29
îš„Earthing the Control Cable Shield in IP54 Inverters
For a appropriate shielding earth clamps have been mounted in the IP54 inverters. Fig 2.16 and Fig 2.17 show
where the earth clamps can be found.

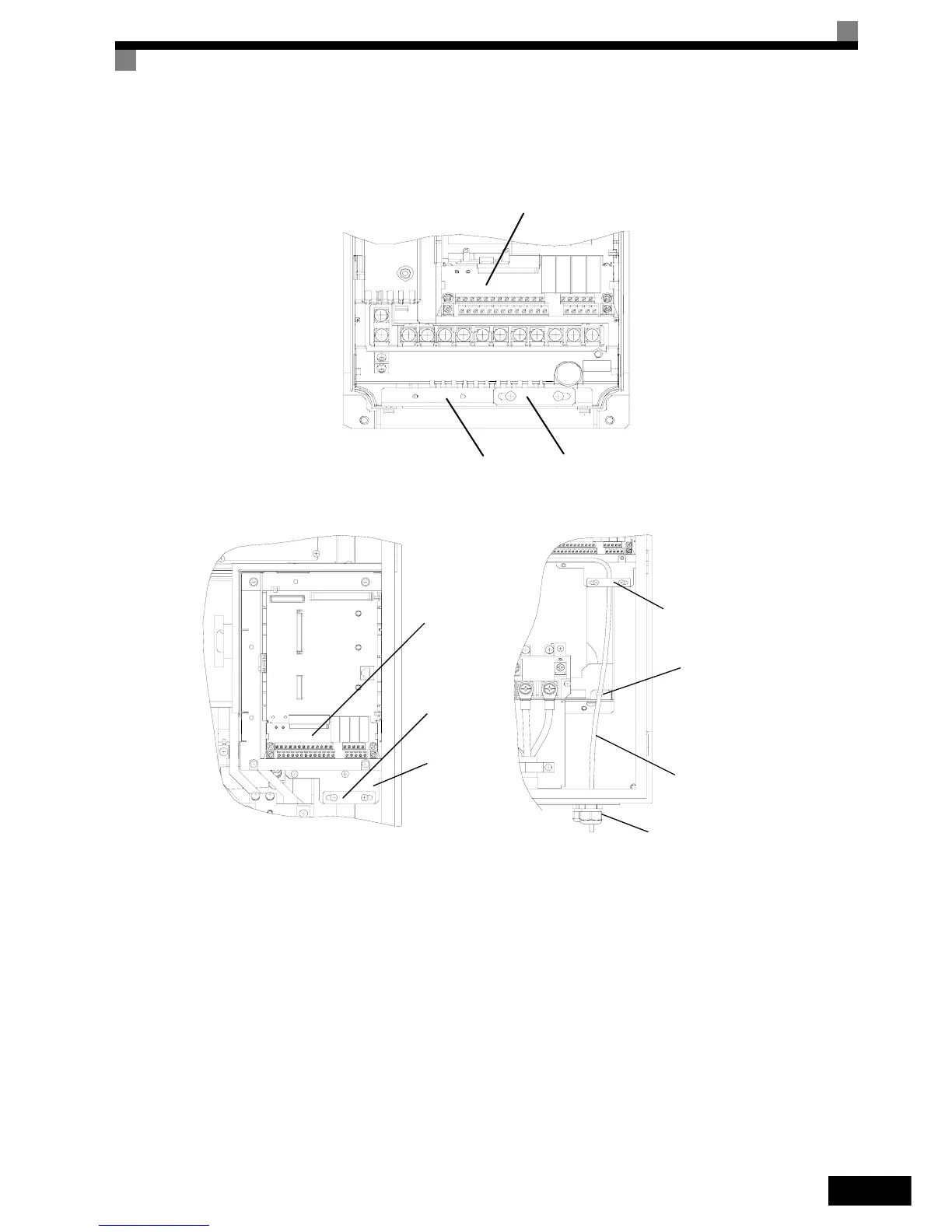

Fig 2.16 Earth Clamp of IP54 Inverters with 7.5 to 18.5kW capacity
Fig 2.17 Earth clamp of IP54 Inverters with 22 to 55kW
Control Terminal
Earth Clamp
Cable Mounting Base
Control
Terminal
Earth Clamp
Cable
Mounting
Base
Earth Clamp
Control Cable
Cable Gland
Cable Tie
(optional)
To Next Page
