BATTERY CONNECTIONS (Engines with
Electric Starter)
Connect the 12-volt battery positive cable to the
engine start switch terminal. Connect the battery
negative cable to the ground point
on the engine oil
base, Figure 4.

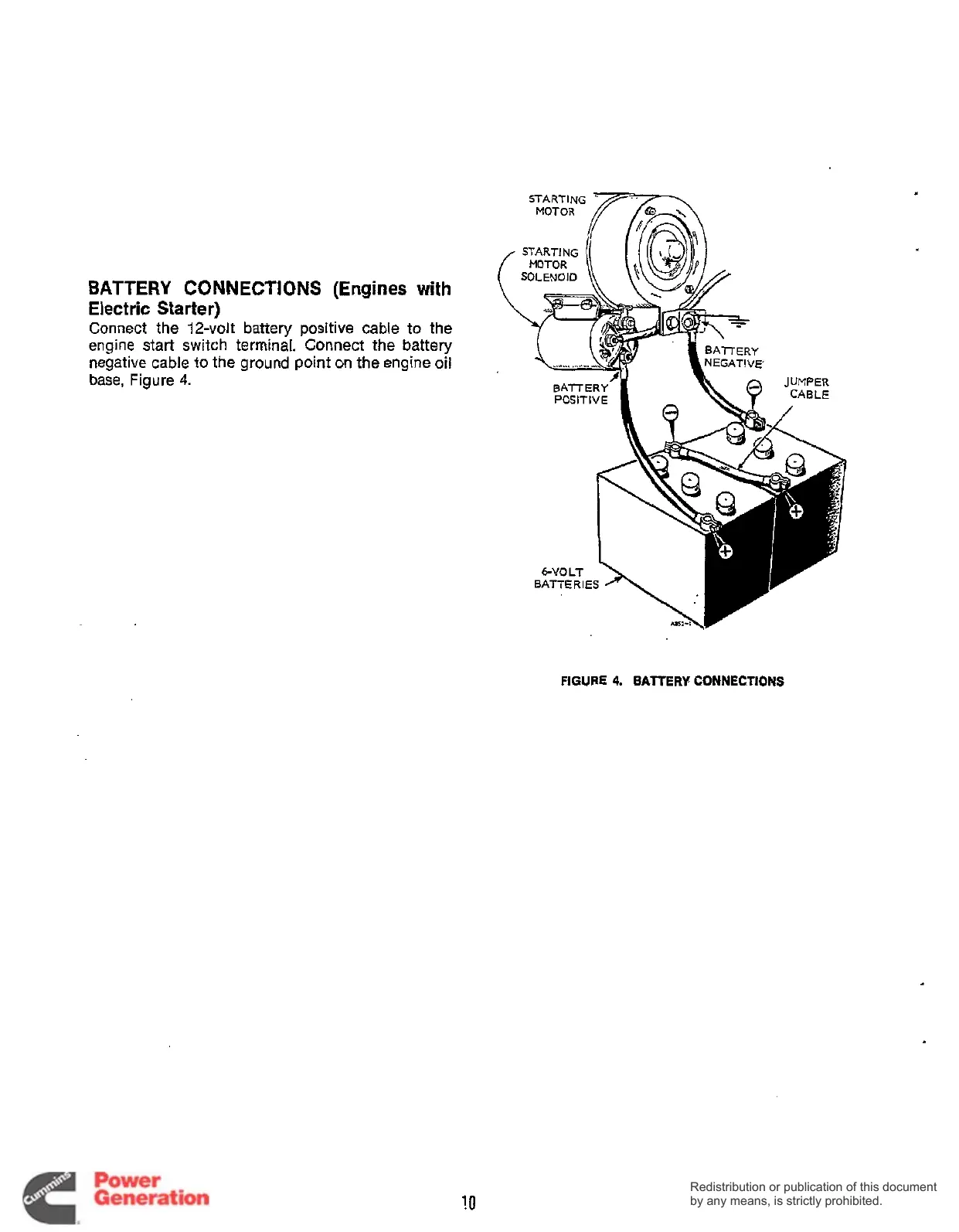

FIGURE 4. BATTERY: CONNECTIONS
10
Redistribution or publication of this document
by any means, is strictly prohibited.
Redistribution or publication of this document
by any means, is strictly prohibited.

Onan MCCK Series Specifications

General

Cylinders	2
Fuel Type	Gasoline
Governor Type	Mechanical
Starting	Electric
Lubrication System	Pressure
Rotation	Counterclockwise
Bore	3.25 in. (82.6 mm)
