Onan MCCK Series User Manual

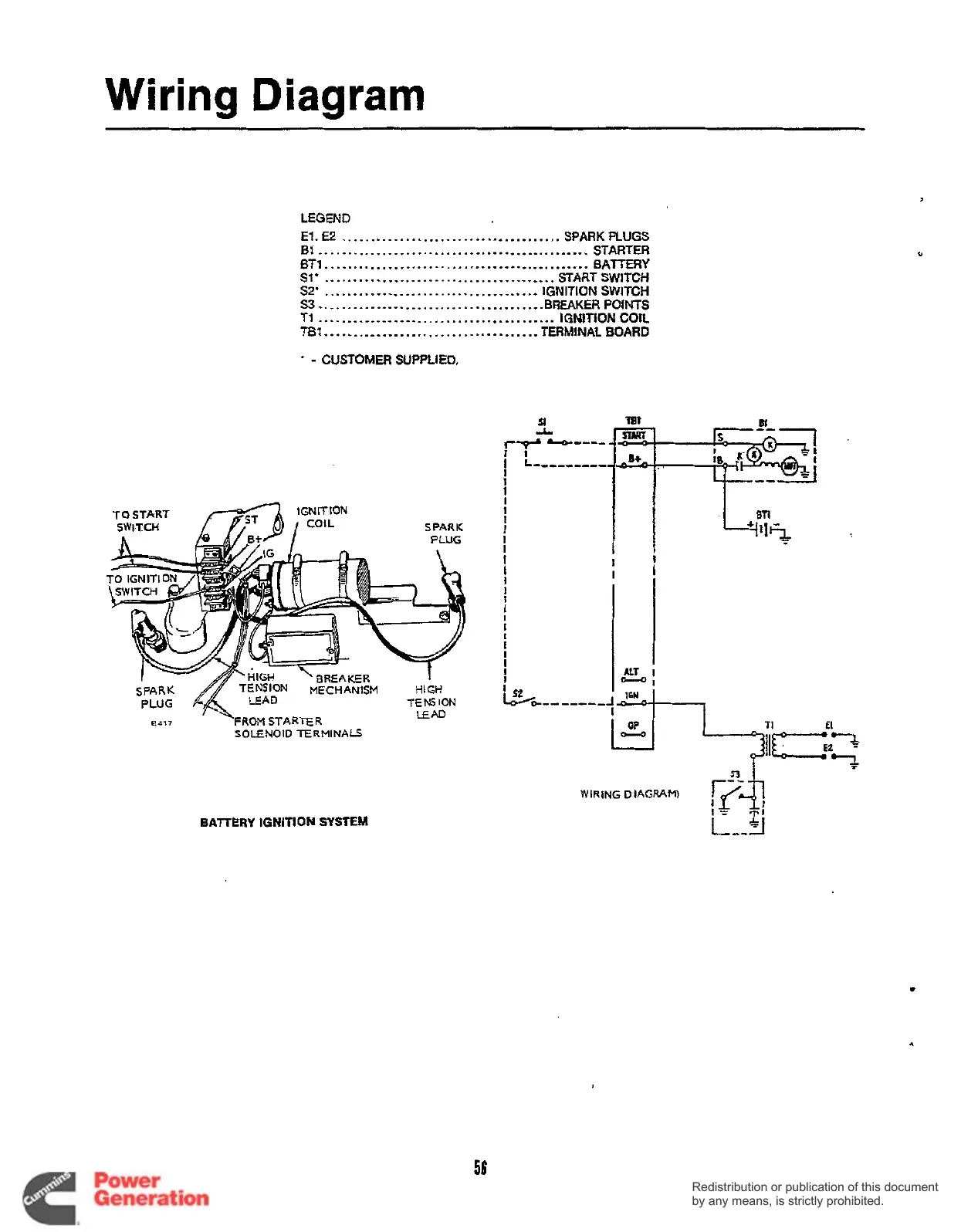

Wiring Diagram
LEGEND
El, E2 ...................................... SPARK PLUGS
81 ............................................... STARTER
BTl .............................................. BATTERY
S1' ........................................ START SWITCH
S2' ..................................... IGNITION SWITCH
TI ......................................... IGNITION COIL
T81... .................................. TERMINAL BOARD
.......................................
S3 BREAKER POlNTS
* - CUSTOMER SUPPLIED.
8317 FROM STARTER
SOLENOID TERMINALS
TI El
BATTERY IGNITION SYSTEM
56
Redistribution or publication of this document
by any means, is strictly prohibited.
Redistribution or publication of this document
by any means, is strictly prohibited.

Onan MCCK Series Specifications

General

Cylinders	2
Fuel Type	Gasoline
Governor Type	Mechanical
Starting	Electric
Lubrication System	Pressure
Rotation	Counterclockwise
Bore	3.25 in. (82.6 mm)
