Onan MCCK Series User Manual

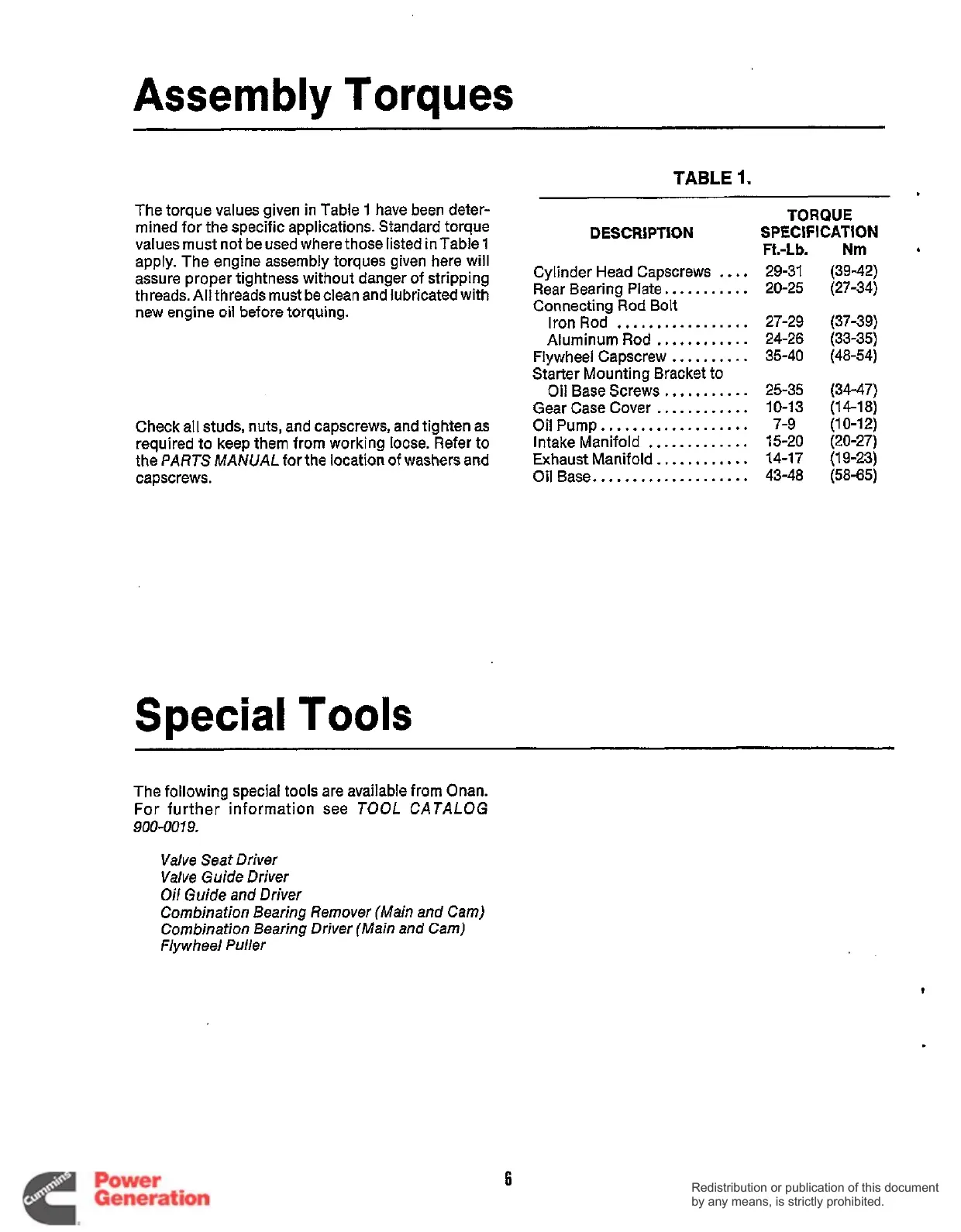

Assembly Torques
TABLE 1.
The torque values given in Table I have been deter-
mined for the specific applications. Standard torque
DESCRIPTION SPECIFICATION
TORQUE
values must not be used where those listed inTable1
E# -1 k
apply. The engine assembly torques given here will
assure proper tightness without danger of stripping
threads.
All threads must be clean and lubricated with
new engine oil before torquing.
Check all studs, nuts, and capscrews, and tighten as
required to keep them from working loose. Refer to
the
PARTS MANUAL for the location of washers and
capscrews.
Cylinder Head Capscrews
....
Rear Bearing Plate.. .........
Iron Rod .................
Aluminum Rod ............
Flywheel Capscrew ..........
Starter Mounting Bracket to
Oil Base Screws
...........
Gear Case Cover ............
Oil Pump.. .................
Intake Manifold .............
Exhaust Manif o Id ............
Oil Base.. ..................
Connecting Rod Bolt
I ..-LY.
29-31
20-25
27-29
24-26
35-40
25-35
10-13
7-9
15-20
14-17
43-48
Nm 6
(39-42)
(27-34)
(37-39)
(33-35)
(34-47)
(10-12)
(48-54)
(14-18)
(20-27)
(1 9-23)
(58-65)
Special Tools
The following special tools are available from Onan.
For further information see
TOOL CATALOG
900-0079.
Valve Seat Driver
Valve Guide Driver
Oil Guide
and Driver
Combination Bearing Remover (Main and Cam)
Combination Bearing Driver (Main and Cam)
Flywheel Puller
6
Redistribution or publication of this document
by any means, is strictly prohibited.
Redistribution or publication of this document
by any means, is strictly prohibited.

Onan MCCK Series Specifications

General

Cylinders	2
Fuel Type	Gasoline
Governor Type	Mechanical
Starting	Electric
Lubrication System	Pressure
Rotation	Counterclockwise
Bore	3.25 in. (82.6 mm)
