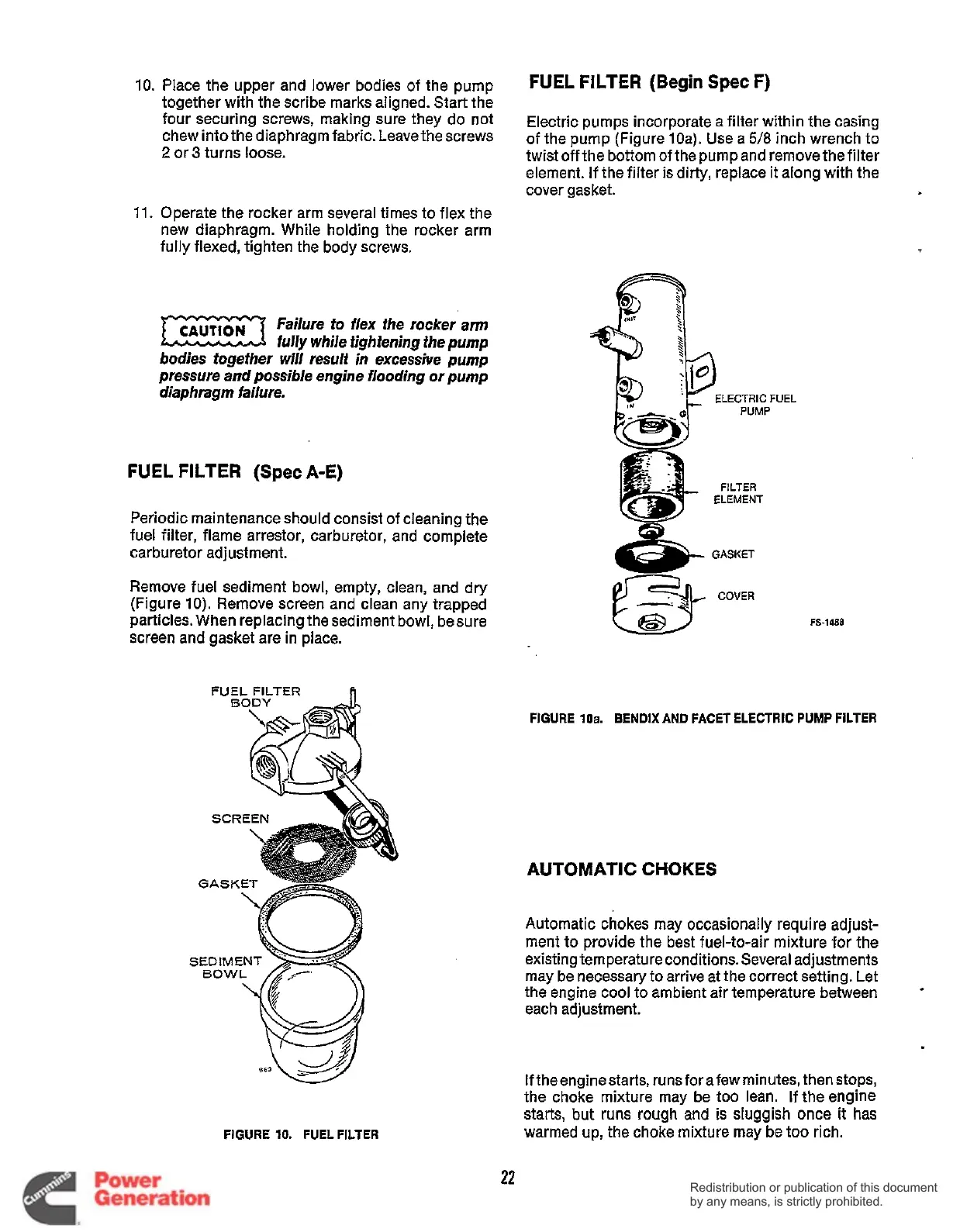

10.
11
Place the upper and lower bodies of the pump
together with
the
scribe marks aligned. Start the
four securing screws, making sure they do not
chew into the diaphragm fabric. Leavethe screws
2
Or
3
turns loose.
Operate the rocker arm several times to flex the
new diaphragm. While holding the rocker arm
fully flexed, tighten the body screws.
Failure
to
flex the rocker arm
fully
while tightening the pump
bodies together will result in excessive pump
pressure and possible engine flooding or pump
diaphragm failure.
FUEL FILTER
(Spec
A-E)
Periodic maintenance should consist of cleaning the
fuel filter, flame arrestor, carburetor, and complete
carburetor adjustment.
Remove fuel sediment bowl, empty, clean, and dry
(Figure
10).
Remove screen and clean any trapped
particles. When replacing the sediment bowl, besure
screen and gasket are in place.
FIGURE
10.
FUEL FILTER
FUEL FILTER
(Begin
Spec
F)
Electric pumps incorporate a filter within the casing
of the pump (Figure loa). Use
a
5/8
inch wrench to
twist
off
the bottom
of
the pump and remove
the
filter
element. If the filter is dirty, replace it along with the
cover gasket.
fq
I",?
a
z
LECTRIC
FUEL
GASKET
-
FS-1488
FIGURE
loa.
BENDIX AND FACET ELECTRIC PUMP FILTER
AUTOMATIC
CHOKES
Automatic chokes may occasionally require
adjust-
ment to provide the best fuel-to-air mixture for the
existing temperatureconditions. Several adjustments
may be necessary
to
arrive at the correct setting. Let
the engine cool to ambient air temperature between
each adjustment.
If theenginestarts, runsforafew minutes, then stops,
the choke mixture may be
too
lean.
If the engine
starts, but runs
rough
and is sluggish once
it
has
warmed up, the choke mixture may be
too
rich.
22
