Onan MCCK Series User Manual

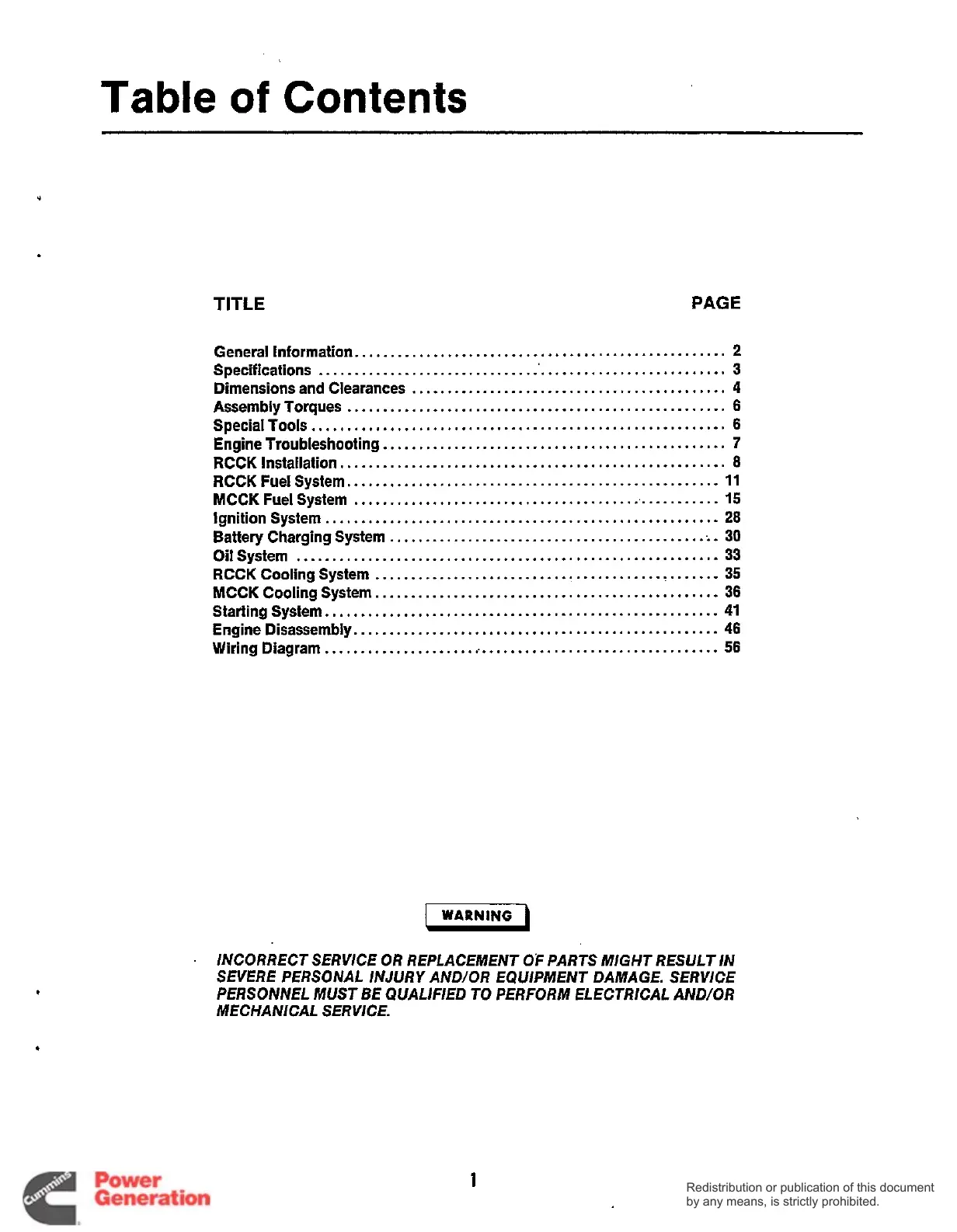

Table of Contents
TITLE PAGE
General Information .................................................... 2
Specifications .......................................................... 3
Dimensions and Clearances ............................................ 4
Assembly Torques ..................................................... 6
Special Tools .......................................................... 6
Engine Troubleshooting ................................................ 7
RCCK Installation., .................................................... 8
RCCK Fuel System .................................................... 11
MCCK Fuel System .................................................... 15
Ignition System ....................................................... 28
Battery Charging System .............................................. 30
MCCK Cooling System ................................................ 36
Starting System ....................................................... 41
Engine Disassembly ................................................... 46
Wiring Diagram ........................................................ 56
OilSystem ........................................................... 33
RCCK Cooling System
........................... ............ ....... 35
I WARNING h
INCORRECT SERVICE OR REPLACEMENT OF PARTS MIGHT RESULT IN
SEVERE PERSONAL lNJURY AND/OR EQUIPMENT DAMAGE
. SERVICE
PERSONNEL MUST BE QUAllFlED TO PERFORM ELECTRICAL AND/OR
MECHA NlCA
L SERVICE .
1
Redistribution or publication of this document
by any means, is strictly prohibited.
Redistribution or publication of this document
by any means, is strictly prohibited.

Onan MCCK Series Specifications

General

Cylinders	2
Fuel Type	Gasoline
Governor Type	Mechanical
Starting	Electric
Lubrication System	Pressure
Rotation	Counterclockwise
Bore	3.25 in. (82.6 mm)
