Operator’s Manual – OPTI CCA-TS2 2-7
2 SETUP

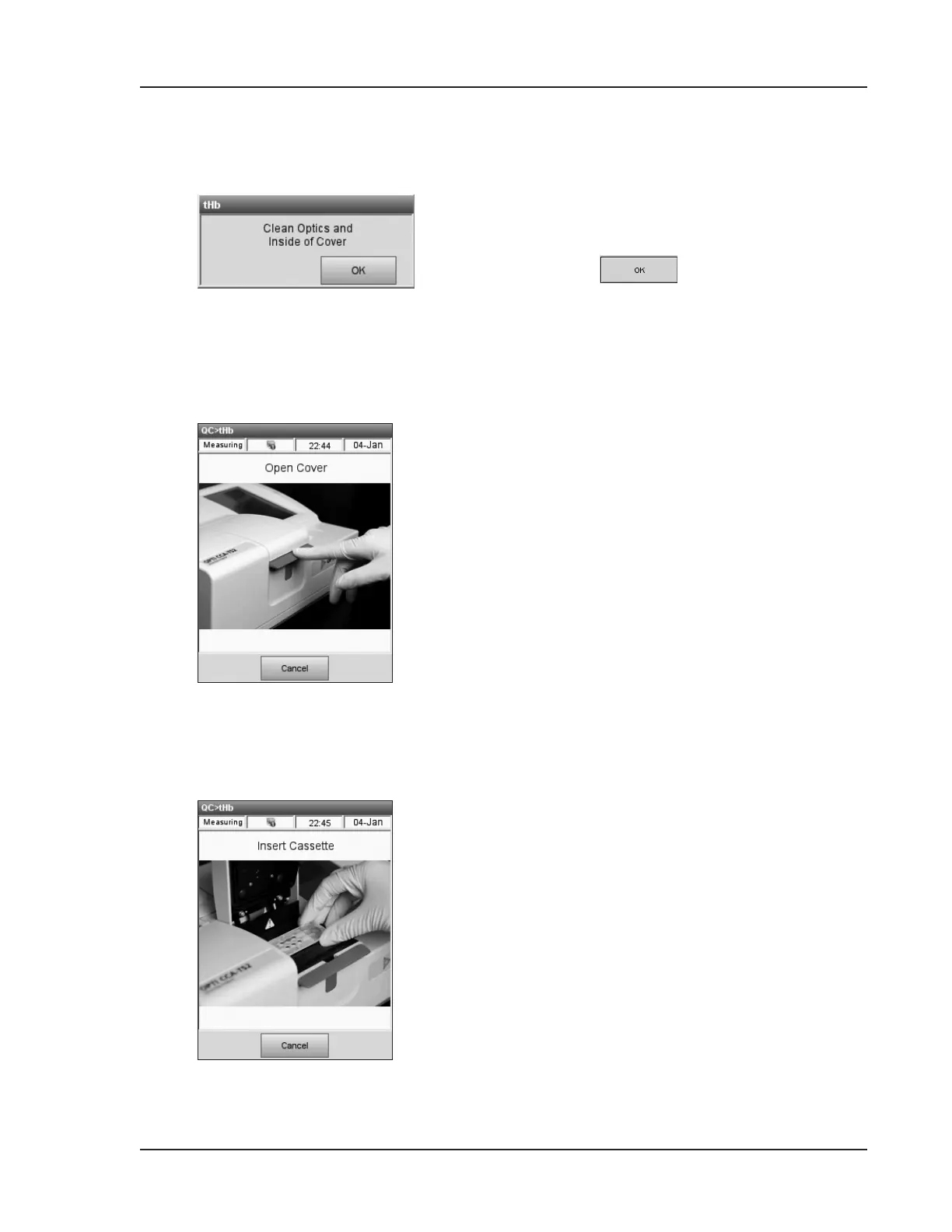

• Gently clean the optics window and the
inside top cover of the sample chamber with
a soft lint free cloth (Fig. 2-17).
Press
.
• Open the SMC cover by pressing down on
the red latch (Fig. 2-18).
• Gently wipe both sides of the Calibrator
Cassette with a clean dry cloth and examine
it to ensure it is clean. Insert it into the
chamber and press down to properly seat the
cassette (Fig. 2-19).
Fig. 2-18 Open Cover
Fig. 2-19 Wipe and Insert Cassette
Fig. 2-17 Clean Optics
