3.2 Unpacking the machine
INFORMATION
The milling machine is delivered pre-assembled. It is delivered in a transport box. After the
unpacking and the transportation to the installation site it is necessary to mount and assemble
the individual components of the milling machine.
Install the machine close to its final position before unpacking. If the packaging shows signs of
having possibly been damaged during transport, take the appropriate precautions to prevent
the machine being damaged when unpacking. If damage is discovered, the carrier and/or ship-
per must be notified immediately so the necessary steps can be taken to register a complaint.
Examine the complete machine carefully and check whether all materials, such as shipping
documents, instructions and accessories have been delivered with the machine.
3.3 Accessories
Draw bar vertical milling
Draw bar horizontal milling
Arbor ISO 40 with counter-bearing, 22mm outside diameter
Arbor ISO 40 with counter-bearing, 27mm outside diameter
2 pc. T-slotted nuts M14x55 with nut and washers
Adapter ISO 40 / B18
Drill chuck 3 - 16mm, arbor B18
Drill drift
Adapter ISO 40 / MT3
Reduction MT3 / MT2

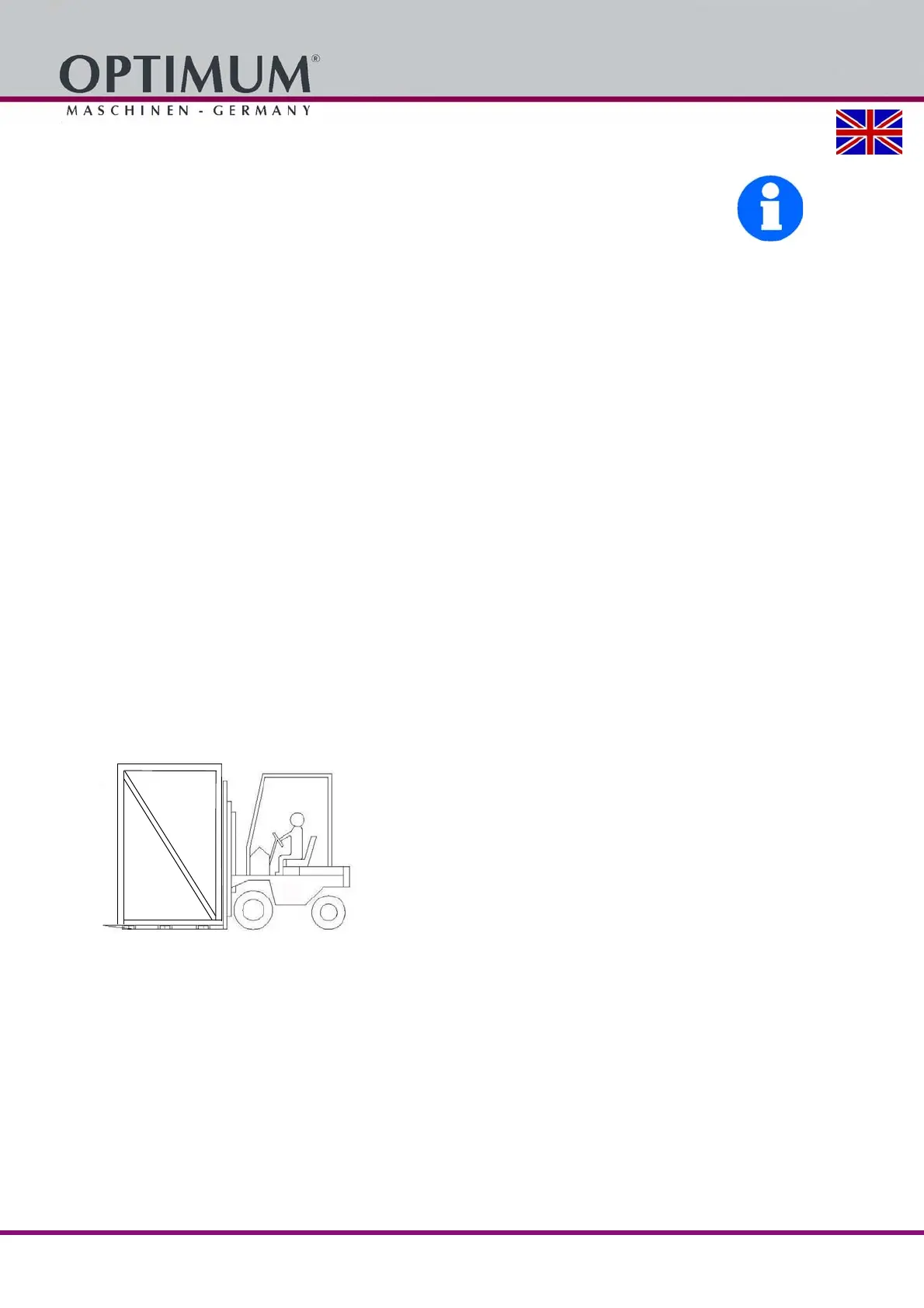

3.4 Transport
Weights
Installation plan on page 24
Weight of the milling machine
„ Total weight [kg]“ on page 19
