4.10.4 Switching the feed
 Set the feed rate.
 Set the selection lever for the table feed into the position .

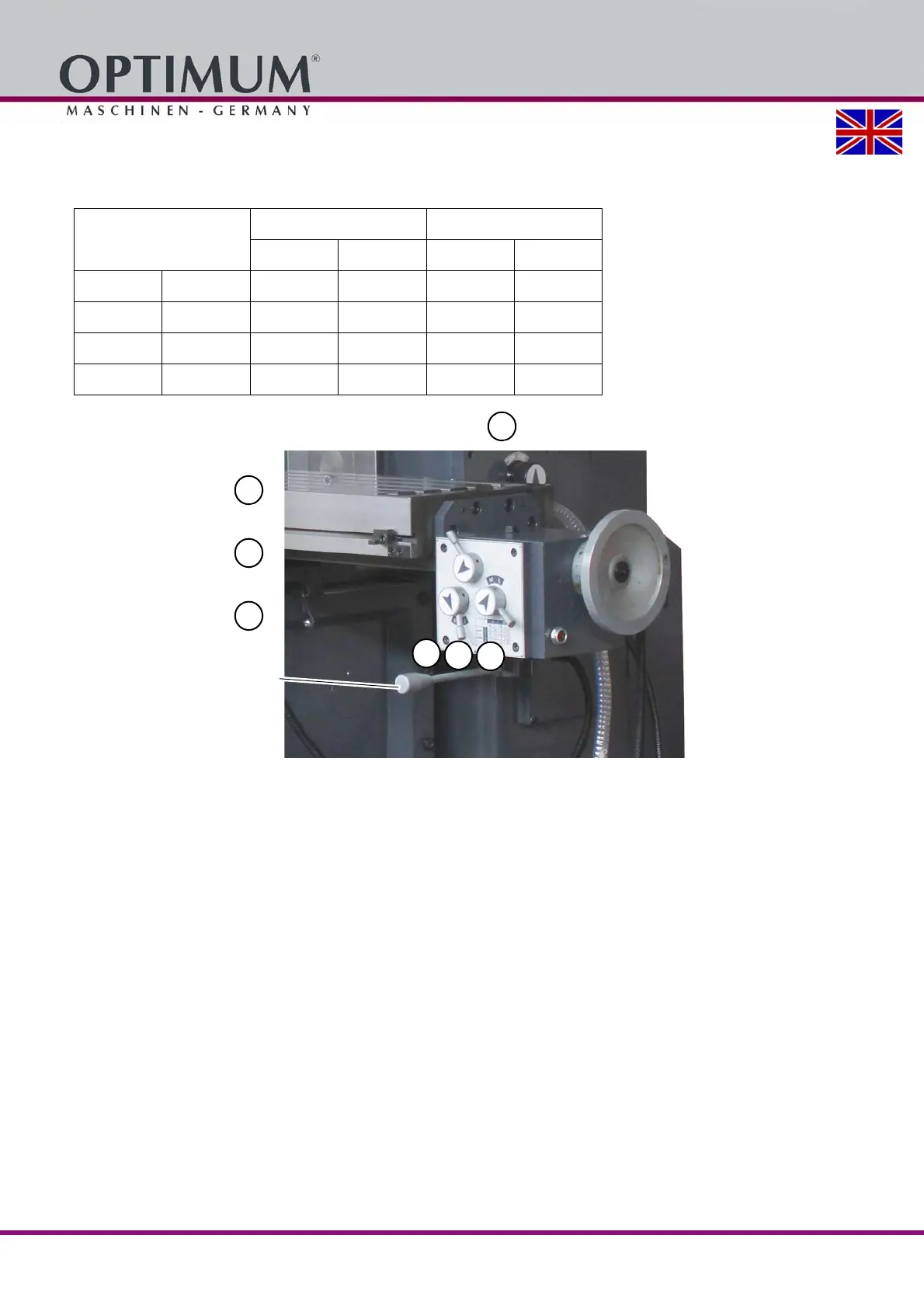

Img.4-9: Selector lever
 Loosen clamping lever on the cross table.
 Set the position of the mechanical end stops.
 Turn the direction lever for table feed motion (X axis) to the required feed direction.
 In order to switch off the rapid traverse, turn the direction lever for table feed motion to the
neutral position.
4.11 Moving the cross table forward / back (Y axis)
 Loosen the clamping lever.
 Engage the hand crank by pressing into the coupling.
 Position the milling table on desired position using the crank.
 Clamp again if required.
~ 50Hz
AB
MLML
mm/min I
32 48 180 275
mm/min II
80 120 460 700
inch/min I
1
1/2
2
1/2
913
1/2
inch/min II
462335
3
1
2
3
"Rapid traverse" position
Neutral position
"Milling feed" position
Selection lever
1
2
3
