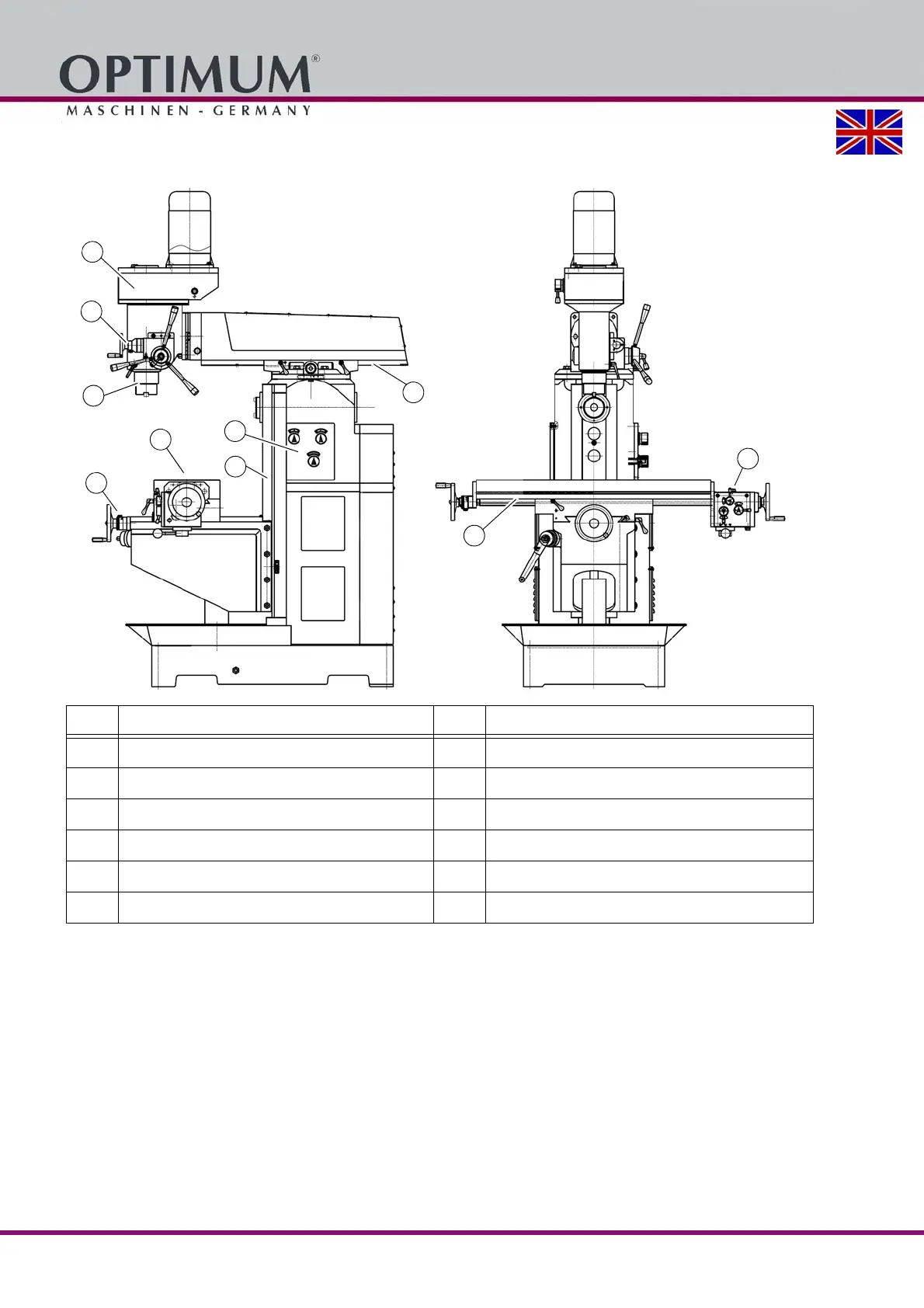

6.2 Overview of lubrication points
Pos. Designation Item Designation
1
Vertical spindle gear
5
Guide track
2
Fine feed
6
Y axis
3
Spindle sleeve
7
Guide track
4
Horizontal spindle gear
8
Guide track
5
Guide track
9
Feed gear
6
Coolant "Off"
10
Surface of cross table
4
3
2
7
1
5
6
8
9
10
