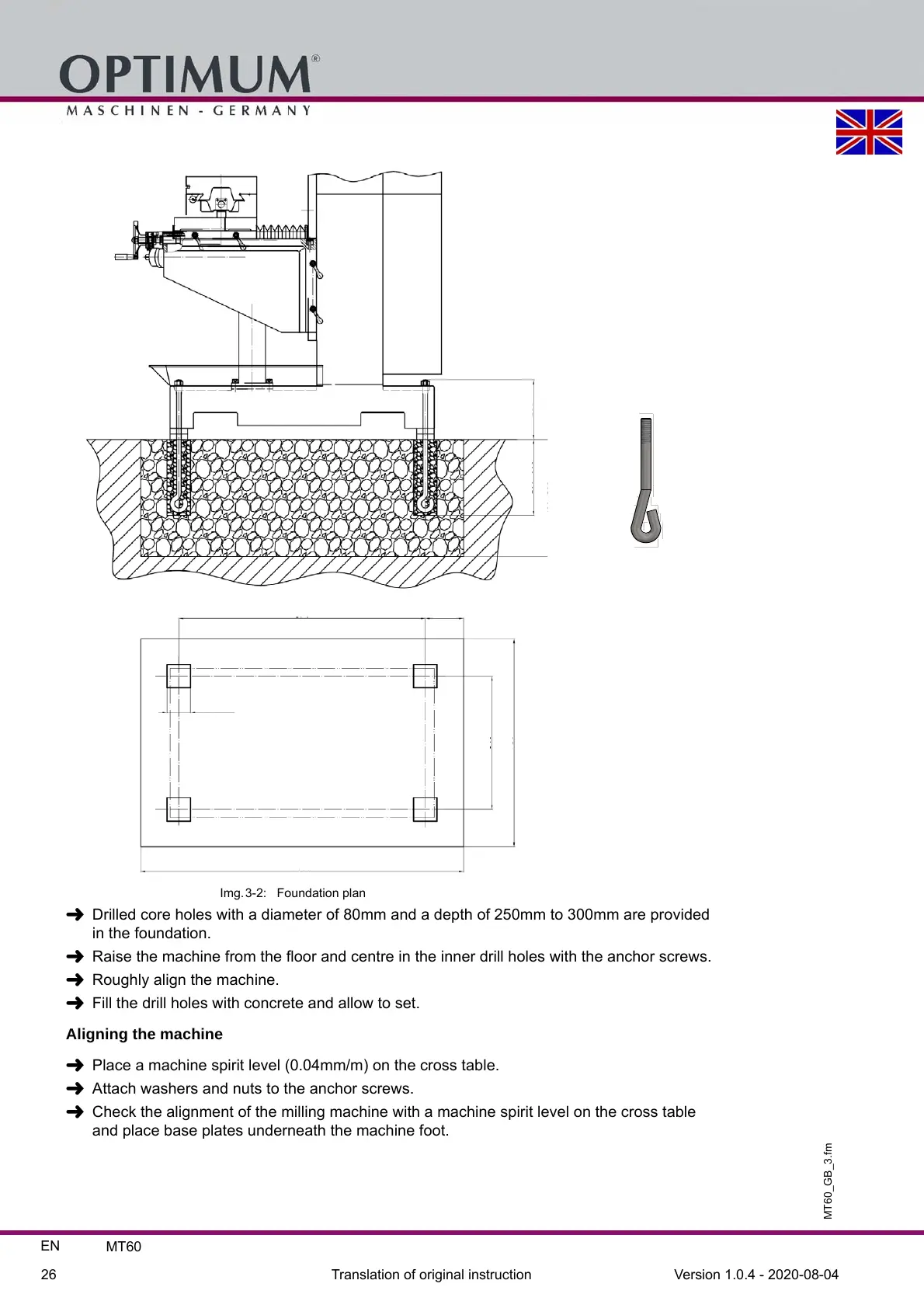

Img.3-2: Foundation plan
Drilled core holes with a diameter of 80mm and a depth of 250mm to 300mm are provided
in the foundation.
Raise the machine from the floor and centre in the inner drill holes with the anchor screws.
Roughly align the machine.
Fill the drill holes with concrete and allow to set.
Aligning the machine
Place a machine spirit level (0.04mm/m) on the cross table.
Attach washers and nuts to the anchor screws.
Check the alignment of the milling machine with a machine spirit level on the cross table
and place base plates underneath the machine foot.
