Chapter 2 - Introduction
2.6.1 System parts

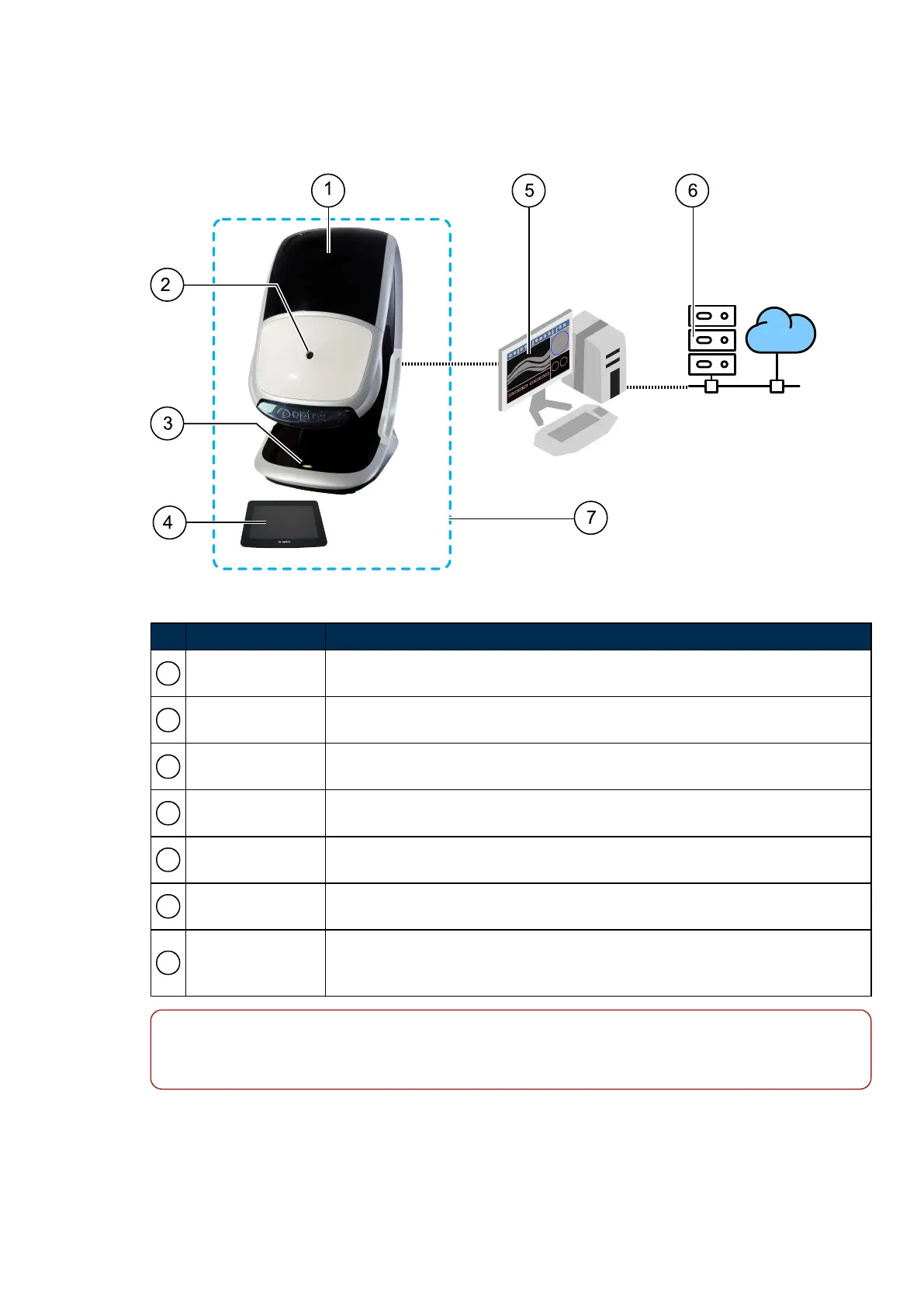

FIGURE 1: P200T device connected to network(Daytona shown)
No. Name of Part Description
1 Scan head
The scan head comprises the light sources and electronics used to capture
patient images.
2
Face pad, eye
piece
These parts help support the patient when the patient is being imaged.
3 Status indicator
The color changes to show the status of the device, see Status indicator on
page42.
4 Touch screen
The touch screen monitor is used to interact with the system. It displays
alignment feedback and captured images.
5 Image server
Runs software and lets you manage the networked images. The image server will
also let you review and analyze patient images.
6 Customer network
Switches, Firewalls, Internet access, Review clients, Virtual image server (if
required)
7
Patient
environment
The image server, switch, browser-based review clients and any Viewing PCs or
monitors must be positioned outside the patient environment; more than 1.5
meters (5 ft) from the scan head.
Note
The device also includes a user guide, dust cap, power cable and Cat 6 cable not shown on this diagram.
A table may also be supplied.
2.6.2 Image modalities
Optos multi-modal ultra-widefield retinal imaging enables the capture of posterior images, with a field of view of
up to 200 degrees in a single capture, and in an imaging time of less than 0.4 seconds.
