ZS3-4 Controller Hardware Overview

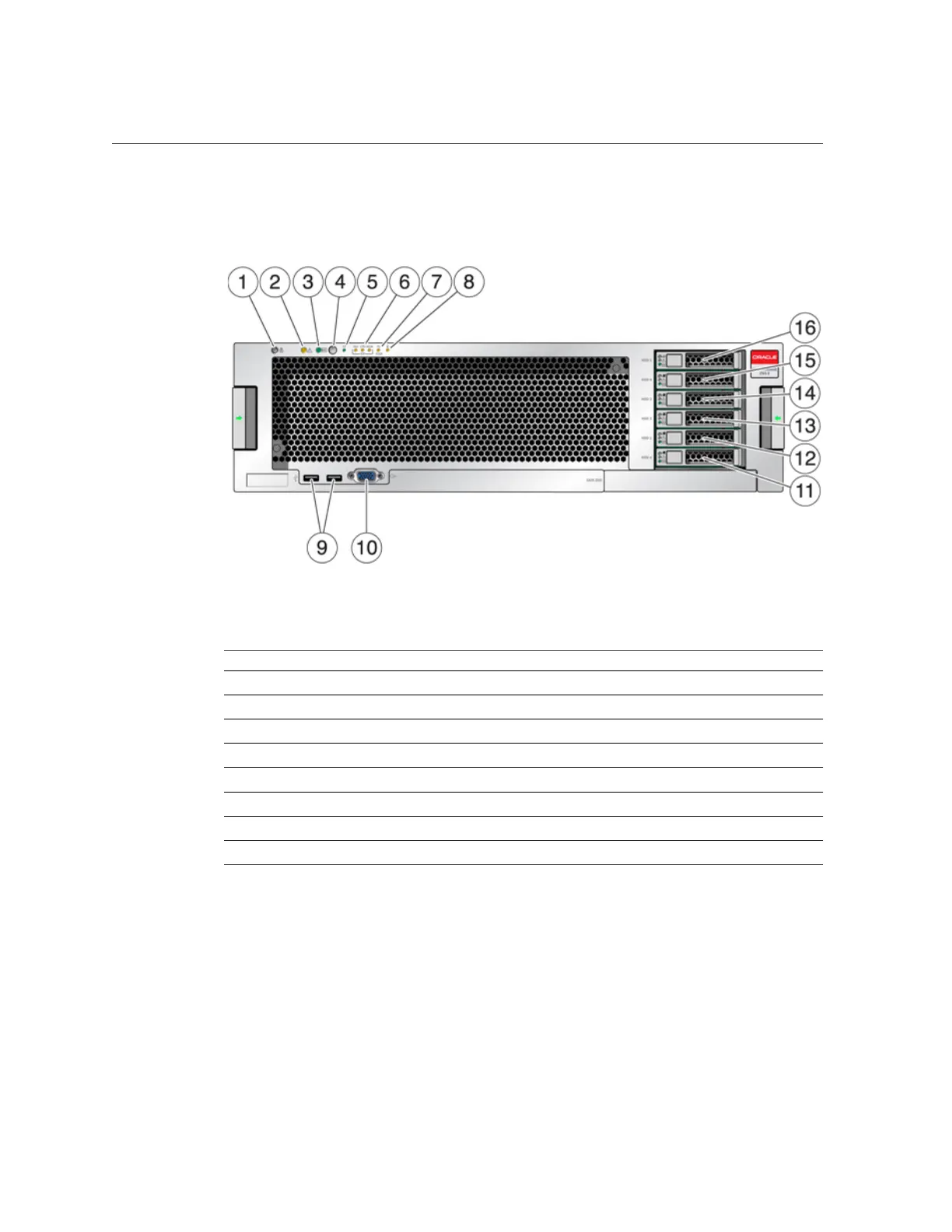

FIGURE 13
ZS3-4 Controller Front Panel
Figure Legend Figure Legend
Locator LED and button (white)
9 USB 2.0 Connectors
2 Service Required LED (amber) 10 DB-15 video connector
3 Power/OK LED (green) 11 Boot drive 0
4 Power button 12 Boot drive 1 (required)
5 Service Processor (SP) OK LED (green) 13 Solid state drive 2 (optional)
6 Fan/CPU/Memory Service Required LED 14 Solid state drive 3 (optional)
7 Power Supply (PS) Service Required LED 15 Solid state drive 4 (optional)
8 Over Temperature Warning LED 16 Solid state drive 5 (optional)
ZS3-4 Rear Panel Components - The following graphic shows the rear panel. Base
configuration HBAs are not depicted in this illustration.
Servicing the ZS3-4 Controller 113
