7420 Controller Hardware Overview

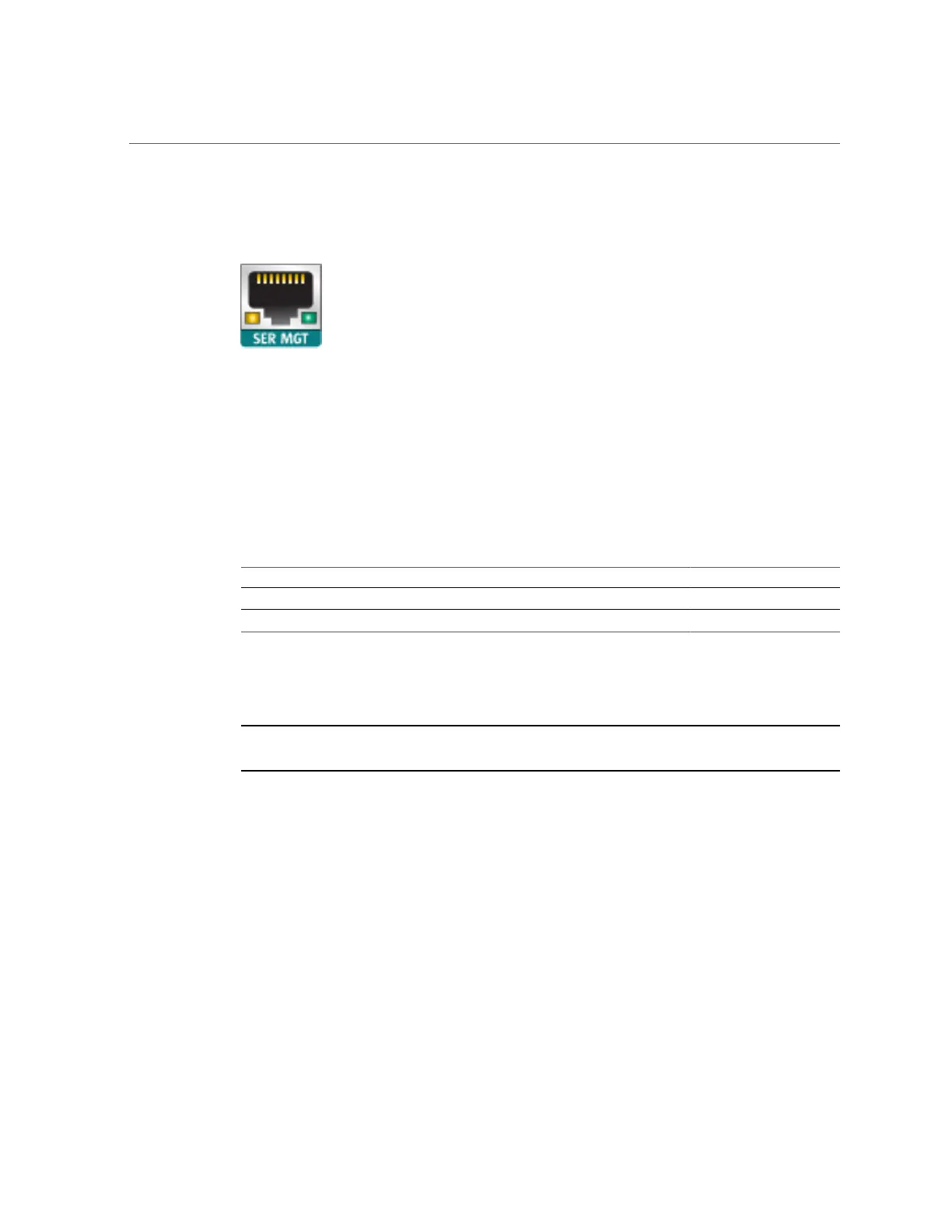

FIGURE 39
7420 Controller Serial Management Port
7420 Specifications
7420 Physical Specifications - The 3U chassis form factor dimensions are as follows:
TABLE 30
7420 Controller Dimensions
Dimension Measurement Dimension Measurement
Height 13.3 cm/5.25 in Depth 70.6 cm/27.8 in
Width 43.7 cm/17.19 in Weight 16.36 kg/96 lbs
7420 Electrical Specifications - The following list shows the electrical specifications for 7420
controllers.
Note - The power dissipation numbers listed are the maximum rated for the power supply and
are not a rating of the actual power consumption of the appliance.
Input
■
Nominal frequencies: 50/60Hz
■
AC operating range: 100-127 VAC for 2 CPUs and 200-240 VAC for 2 or 4 CPUs
■
Maximum current AC RMS: 12A @ 100 VAC / 12A @ 200 VAC
Power Dissipation
■
Max power consumption: 1800 W
■
Max heat output: 6143 BTU/hr
■
Volt-Ampere rating: 1837 VA @ 240 VAC, 0.98 P.F.
218 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
