Replacing a Disk Shelf I/O Module
Note - After the DE2-24 disk shelf powers on, which could take several minutes, ensure that the

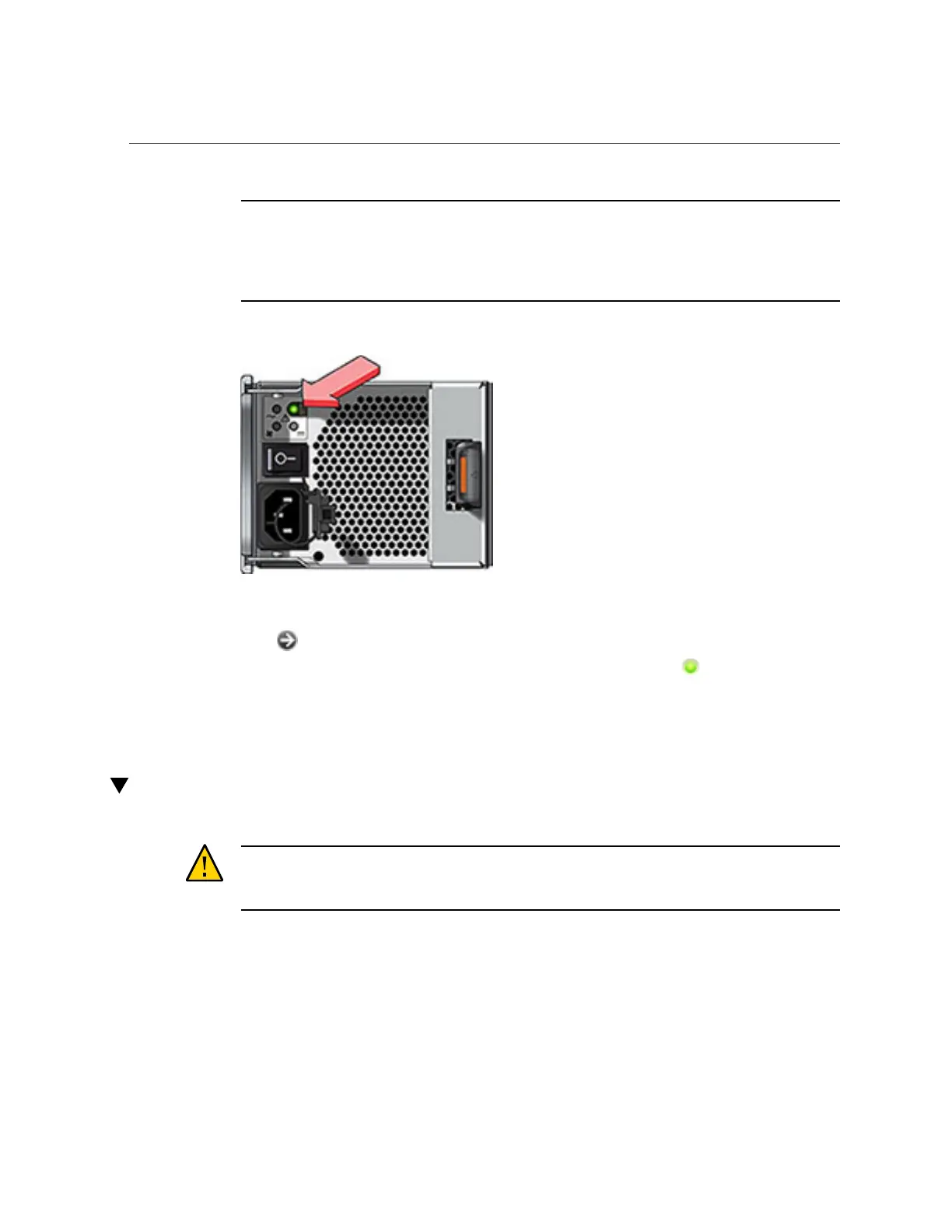

system power indicator on the front of the disk shelf is lit a steady green, and that each power
supply with fan module status indicator on the rear is list a steady green. If not, power off the
disk shelf and reseat the faulted module. If the module status indicator is not a steady green
after module reinsertion, contact Oracle Customer Service.
12.
Go to the Maintenance > Hardware section of the BUI, and click the right-arrow
icon at the beginning of the appropriate disk shelf row. As appropriate for the
failure, click either PSU or Fan to verify that the online icon is green for the
newly installed power supply with fan module.
13.
If a fault does not self-clear, see “Repairing Active Problems” on page 37.
Replacing a Disk Shelf I/O Module
Caution - Do not remove a component if you do not have an immediate replacement. The disk
shelf must not be operated without all components in place, including filler panels. Refer to
“Disk Shelf Hardware Overview” on page 272 for component locations.
The following disk shelves have I/O Modules (IOMs):
■
Oracle Storage Drive Enclosure DE2-24P
■
Oracle Storage Drive Enclosure DE2-24C
264 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
